Fortinet FortiRecorder 400F
IP-based Video Security

Overview:

FortiRecorders solve your surveillance problems while streamlining the user experience. Place cameras to cover your entry points and critical areas such as Point of Sale terminals, warehouses, public areas, and loading docks. Configure FortiRecorder for continuous or motion-based recording (or both). Alarms and notifications keep you aware of what’s going on. An event timeline lets you find and review motion events quickly and easily

Motion detection with snapshot notifications

What’s the most annoying issue with alarm systems? For many, it’s false alarms. The alarm company called, and now you have to decide whether the alarm is legitimate. Did the cleaners forget to disarm the alarm or are thieves cleaning out your office? FortiRecorder sends a snapshot notification email to your smartphone or other device with images from the motion event. You immediately see what’s going on without having to log in to a dedicated app or navigate any menus.

Highlights

• Scheduled and manual recording § Motion detection and continuous recordings § Snapshot notifications and alerts § Available as an appliance or virtual machine § Camera live view and video playback § Event monitor with timeline § RADIUS, LDAP, SNMP and remote data storage support for flexible network integration

Key Features and Benefits

Archive video to remote storage device	Extend recording capacity through network-attached storage. Archived files can be seamlessly accessed for playback from local or remote storage using the FortiRecorder web interface or FortiRecorder Central client.
Multiple network interfaces	Multiple gigabit network interfaces give you flexible configuration options and allow you to implement dedicated camera networks, providing increased security and performance.
Viewer, operator, and administrator access profiles	Separating user groups provides improved security. Administrators have full access while operators can’t change the configuration, delete video files, or disable cameras. Operators can be assigned access to specific camera groups. Viewers can only monitor camera live views.

FEATURES

Two Ways to See: Web-Based Interface or Advanced FortiRecorder Central App

FortiRecorder’s web-based interface is one of the most sophisticated in the industry, with full controls for browsing past footage, setting alerts, and monitoring a few cameras. Or choose the free FortiRecorder Central windows application. It’s a sleek, high-performance, easily customizable interface that delivers fast, intuitive access to real time and recorded images. It’s friendly and easy for casual users, yet sophisticated enough for more intensive security installations that require constant monitoring of multiple cameras and recorders.

Camera Freedom: Use FortiCameras or Third-Party Cameras

FortiCameras are tailor-made to work with FortiRecorder, with easy configuration and no additional license fees. But FortiRecorder also works with third-party ONVIF cameras to allow you to choose specialty cameras when you need them.

Appliance or Virtual: You Choose

FortiRecorder is available as an appliance or a virtual machine, so you get the complete functionality in the format that works best for you. Choose the FortiRecorder 100D, 200D, or 400F for ease of set-up right out of the box — just plug in your FortiCameras, turn on the recorder and you’re ready to go using your web browser or FortiRecorder Central. Or choose FortiRecorder-VM with simple, stackable licenses and platform flexibility for IT-friendly environments and support for up to 1024 cameras.

FortiRecorder-VM is supported on VMware’s vSphere Hypervisor, Microsoft Hyper-V, KVM, Citrix XenServer, and Amazon AWS (on-demand).

Specifications:

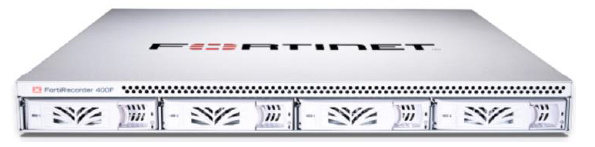

	FortiRecorder 400F
Hardware Specifications
Camera Capacity	64
Format	1U Appliance
10/100/1000 Interfaces (Copper, RJ-45)	3
Storage	1x 4 TB (4x 8 TB maximum)
Environment
Power Required	100–240V AC, 60–50 Hz, 300W ATX PSU
Power Consumption (Average)	50 watts
Heat Dissipation	229 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-4–167°F (-20–75°C)
Humidity	5–95% non-condensing
Dimensions
Height x Width x Length (inches)	1.7 x 17.3 x 16.5
Height x Width x Length (mm)	44 x 440 x 420
Weight	16.3 lbs (7.4 kg)
Compliance
	FCC/ICES Class A, CE, RCM, VCCI, BSMI, UL/cUL, CB

Documentation:

Download the Fortinet FortiRecorder Data Sheet (PDF).
