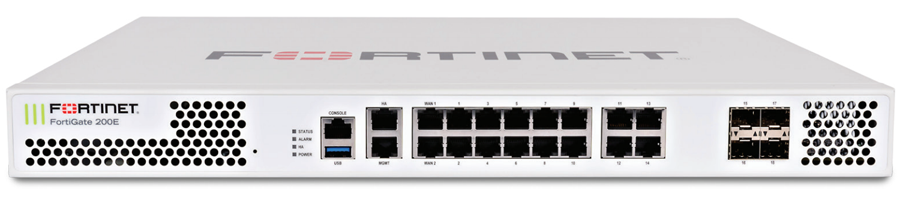

Fortinet FortiGate 200E
Enterprise-Grade Protection for Smaller Networks

Overview:

The Fortinet Enterprise Firewall Solution

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry’s best protection against the most advanced security threats and targeted attacks.

Hardware:

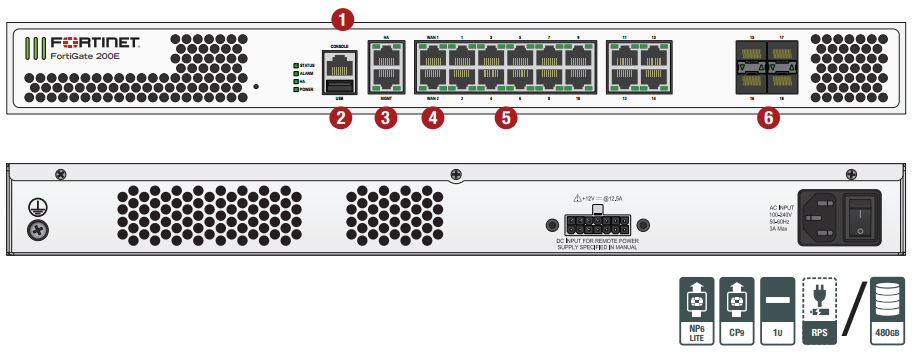

FortiGate 200E/201E

Interfaces

1. Console Port
2. USB Port
3. 2x GE RJ45 Management/HA Ports
4. 2x GE RJ45 WAN Ports
5. 14x GE RJ45 Ports
6. 4x GE SFP Slots

Powered by SPU SoC3

• Combines a RISC-based CPU with Fortinet's proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
• Simplifies appliance design and enables breakthrough performance for smaller networks
• Supports firewall acceleration across all packet sizes for maximum throughput
• Delivers accelerated UTM content processing for superior performance and protection
• Accelerates VPN performance for high speed, secure remote access

Content Processor

Fortinet’s new, breakthrough SPU CP9 content processor works outside of the direct flow of traffic and accelerates the inspection of computationally intensive security features:

• Enhanced IPS performance with unique capability of full signature matching at ASIC
• SSL Inspection capabilities based on the latest industry mandated cipher suites
• Encryption and decryption offloading

Network Processor

The SPU NP6Lite network processor works inline with firewall and VPN functions delivering:

• Wire-speed firewall performance for any size packets
• VPN acceleration
• Anomaly-based intrusion prevention, checksum offload and packet defragmentation
• Traffic shaping and priority queuing

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

• A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
• Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
• Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
• Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
• Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
• Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

• Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
• Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
• Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

• Enhanced Support — For customers who need support during local business hours only.
• Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
• Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
• Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:

	FortiGate 200E	FortiGate 201E
Hardware Specifications
GE RJ45 WAN Interfaces	2	2
GE RJ45 Management/HA Ports	2	2
GE RJ45 Ports	14	14
GE SFP Slots	4	4
USB (Client / Server)	1 / 1	1 / 1
Console (RJ45)	1	1
Local Storage	-	480 GB
Included Transceivers	0	0
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	20 / 20 / 9 Gbps
Firewall Latency (64 byte UDP packets)	3 μs
Firewall Throughput (Packets Per Second)	13.5 Mpps
Concurrent Sessions (TCP)	2 Million
New Sessions/Second (TCP)	135,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte packets)	9 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	5,000
SSL-VPN Throughput	900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	300
IPS Throughput (HTTP / Enterprise Mix) 1	6 Gbps / 2.2 Gbps
SSL Inspection Throughput 2	1 Gbps
Application Control Throughput 3	3.5 Gbps
NGFW Throughput 4	1.8 Gbps
Threat Protection Throughput 5	1.2 Gbps
CAPWAP Throughput 6	1.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode)	128 / 64
Maximum Number of FortiTokens	1,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.7 x 17.0 x 11.9
Height x Width x Length (mm)	44 x 432 x 301
Weight	11.9 lbs (5.4 kg)	12.12 lbs (5.5 kg)
Form Factor	Rack Mount, 1 RU
Environment
Power Required	100–240V AC, 60–50 Hz
Maximum Current	110 V / 3 A, 220 V / 1.5 A	110 V / 7 A, 220 V / 3.5 A
Power Consumption (Average / Maximum)	70.98 / 109.9 W
Heat Dissipation	374.9 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance
Safety	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications
	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.

Documentation:

Download the Fortinet FortiGate 200E Series Data Sheet (PDF).
