Fortinet FortiTester 4000F
Performance Testing and Breach Attack Simulation

Overview:

FortiTester is a network security testing tool designed to identify and evaluate network security devices and applications. It can simulate network traffic, including malicious traffic, and test how security devices perform in detecting and mitigating threats. FortiTester supports a wide range of traffic types, including SSL, DDoS, and custom traffic.

It is an easy-to-use tool that allows security teams to assess the effectiveness of their network security solutions before deploying them in production environments. With FortiTester, organizations can ensure that their security infrastructure is capable of defending against advanced threats and is optimized for maximum performance.

Features:

Performance Testing and Traffic Generation

HTTP, HTTPS, HTTP/2, UDP Throughput, RFC2544, SSLVPN and IPSEC testing, Traffic enterprise mix generation, and Q-in-Q traffic generation

Breach Attack Simulation

MITRE ATT&CK simulation testing, CVE-based IPS testing, Fuzzing testing, Web/IOT attacks, FortiGuard Malware strike pack, DDoS traffic generation and PCAP replay

Comprehensive API

Automate testing and simulation with full system, test simulation, and reporting API

Key Points

• Up-to-date cyber threat simulation based on real world insight of FortiGuard
• Best price and performance traffic generation and security testing system
• Flexible operation modes from one standalone device up to 8 devices combined
• Hardware, virtual appliances, and public cloud (AWS, Azure, GCP, OCI and Alibaba)
• Server-Class hardware and packetprocessing enhancements
• Throughput Testing up to 80 Gbps/ 800 Gbps Bi-directional Throughput
• Easy and Simple Web UI

FortiTester Use Cases

Secure Infrastructure Validation:	Evaluate Advanced Threat Protection (ATP) Technology Validate Technology, People, and Process
Breach Attack Simulation:	MITRE ATT&CK® Simulation Pre/Post Breach Simulation
Vendor Bake-Off:	Datasheet Performance Evaluation Future Proofing
Public Cloud Testing:	AWS, Azure, GCP, OCI, IBM, Alibaba Architecture Validation Load Testing in Market Places

---

Highlights:

---

Deployment:

Standalone Mode

Test center works with the local traffic generator and receiver.

---

Test Centre Mode

Scale FortiTester performance by combining up to eight FortiTesters in a cluster.

---

Public Cloud Support

Scale FortiTester performance by combining up to eight FortiTesters in a cluster.

---

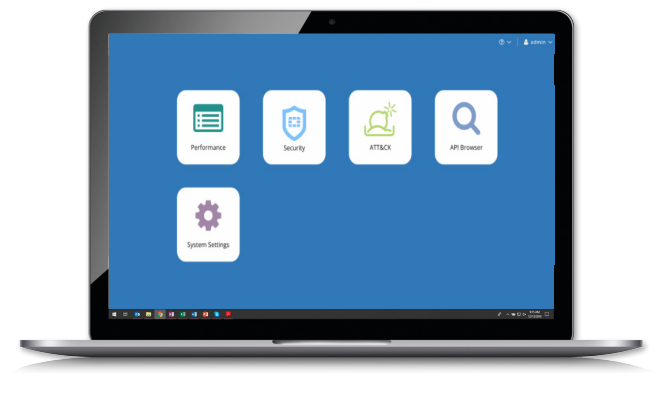

Intuitive GUI

FortiTester features a simple, easy to use, and intuitive graphic user interface.

---

Specifications:

FortiTester 4000F
Hardware Specifications
Total Interfaces	2x 100 GE QSFP28, 1x GE RJ45 (breakout cable not supported)
Storage	2 TB HDD
Form Factor	1U
SSL Acceleration Card	Yes
Performance and Application Support	Standalone mode	Test Center mode with 8 devices
HTTP Throughput	100 Gbps	800 Gbps
HTTP Connections Per Second	3,600,000	28,800,000
HTTP Concurrent Connections	76,000,000	608,800,000
SSL Throughput	99 Gbps	792 Gbps
SSL Connections Per Second	80,000	640,000
SSL Concurrent Connections	640,000	5,120,000
IPsec	Yes	Yes
SSL-VPN	Yes	Yes
Protocol TCP (CIFS, SMB, FIX, FTP, IMAP, LDAP, NFS, POP3, RDP, SMTP, SSH), UDP, DHCP, ICMP, RTSP/RTP	Yes	Yes
RFC2544 and 3511	Yes	Yes
IPS, Malware, MITRE ATT&CK, FUZZING, and DDOS	Yes	Yes
Replay — PCAP, Traffic, Attack, GTP	Yes	Yes
Traffic Mix Enterprise / Lite / Fortinet Mix	Yes	Yes
Dimensions and Power
Height x Width x Length (inches)	1.73 x 17.24 x 22.83
Height x Width x Length (mm)	44 x 438 x 580
Weight	22.6 lbs (10.3 kg)
Power Required	100–240V AC, 63-47 Hz, Redundant
Power Consumption (Average / Maximum)	300 W / 360 W
Maximum Current	120V/5A, 240V/3A
Heat Dissipation	1160 BTU/h
Redundant Power Supplies	Dual Power Supplies
Environment
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Humidity	5% to 95% non-condensing
Operating Altitude	Up to 7400 ft. (2250 m)
Compliance
Regulatory Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/c
Safety	CSA, C/US, CE, UL

FortiTester 4000F – Based on SSL/TLS cipher suite: AES256-GCM-SHA384 with 2K key size. * FortiTester 4000F SSL performance uses 6 cores, 2 cores are used for system/management.

---

Documentation:

Download the Fortinet FortiTester Datasheet (PDF).

---
