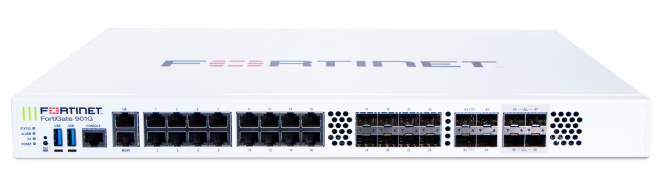

Fortinet FortiGate 900G
Next Generation Firewall Secure SD-WAN

Click here to jump to more pricing!

Overview:

Highlights

• Gartner Magic Quadrant Leader for both Network Firewalls and WAN Edge Infrastructure.
• Security-Driven Networking FortiOS delivers converged networking and security.
• State-of-the-Art Unparalleled Performance with Fortinet’s patented / SPU / vSPU processors.
• Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
• Deep Visibility into applications, users, and devices beyond traditional firewall techniques.

AI/ML Security and Deep Visibility

The FortiGate 900G Series NGFW combines AI-powered security and machine learning to deliver Threat Protection at any scale. Get deeper visibility into your network and see applications, users, and devices before they become threats.

Powered by a rich set of AI/ML security capabilities that extend into an integrated security fabric platform, the FortiGate 900G Series delivers secure networking that is broad, deep, and automated. Secure your network end to end with advanced edge protection that includes web, content, and device security, while network segmentation and secure SD-WAN reduce complexity and risk in hybrid IT networks

Universal ZTNA automatically controls, verifies, and facilitates user access to applications, reducing lateral threats by providing access only to validated users. Ultra-fast Threat Protection and SSL Inspection provides security at the edge you can see without impacting performance.

IPS	NGFW	Threat Protection	Interfaces
26 Gbps	22 Gbps	20 Gbps	Multiple 25 GE SFP28, 10 GE SFP+, GE SFP Slots and GE RJ45

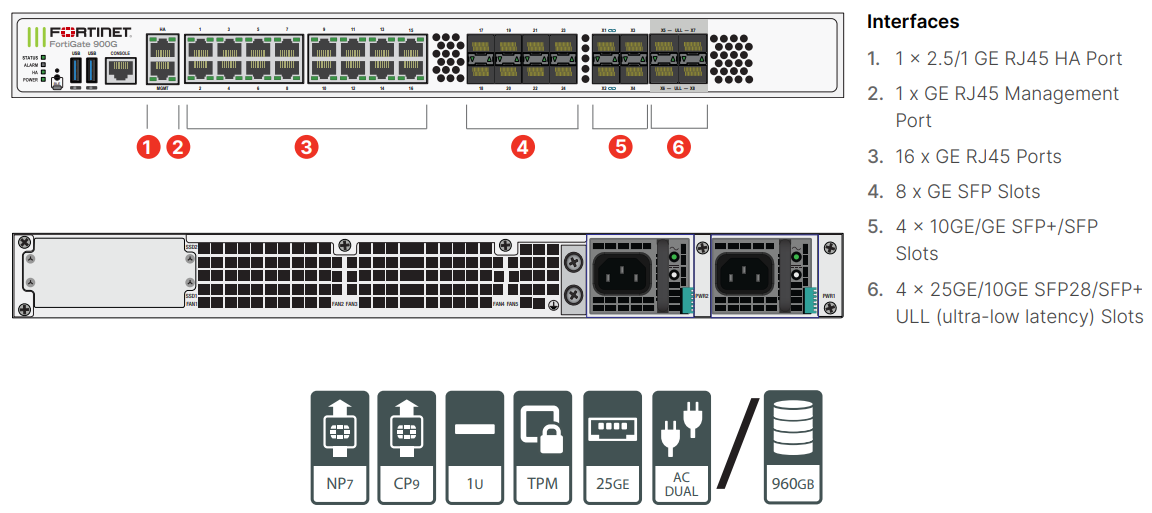

Hardware:

FortiGate 900G/901G

Specifications:

	FortiGate 900G	FortiGate 901G
Interfaces and Modules
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots	4
Hardware Accelerated 10 GE SFP+ / GE SFP Slots	4
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated GE RJ45 Slots	16
2.5 GE / GE HA Port	1
GE Management Port	1
USB Ports (Client / Server)	2/2
Console Port	1
Onboard Storage	No	2x 480 GB
Trusted Platform Module (TPM)	Yes
Included Transceivers	2x SFP SX
System Performance — Enterprise Traffic Mix
IPS Throughput	26 Gbps
NGFW Throughput	22 Gbps
Threat Protection Throughput	20 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	164 / 163 / 153 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP	164 / 163 / 153 Gbps
Firewall Latency (64 byte, UDP)	3.78 / 2.5 μs
Firewall Throughput (Packet per Second)	229.5 Mpps
Concurrent Sessions (TCP)	16 Million
New Sessions/Second (TCP)	720 000
Firewall Policies	10 000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2000
Client-to-Gateway IPsec VPN Tunnels	50 000
SSL-VPN Throughput	10 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	10 000
SSL Inspection Throughput (IPS, avg HTTPS)	16.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	18 000
SSL Inspection Concurrent Session (IPS, avg HTTPS)	1.6 Million
Application Control Throughput (HTTP 64K)	74.8 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	96
Maximum Number of FortiAPs (Total / Tunnel)	1024 / 512
Maximum Number of FortiTokens	5000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	1.5 x 17.0 x 15.0
Height x Width x Length (mm)	44.45 x 432 x 380
Weight (maximum)	15.98 lbs (7.25 kg)	16.53 lbs (7.5 kg)
Form Factor	Rack Mount, 1RU
AC Power Supply	100–240VAC, 50/60 Hz
AC Current (Maximum)	6A@100VAC
Power Consumption (Average / Maximum)	134 W / 252 W	144 W / 264 W
Heat Dissipation	861 BTU/h	902 BTU/h
Power Supply Efficiency Rating	80Plus Compliant
Redundant Power Supplies (Hot Swappable)	Yes (comes with 2PSU default)
Operating Environment and Certifications
Operating Temperature	32°–113°F (0°–45°C)
Storage Temperature	-31°–158°F (-35°–70°C)
Humidity	10%–90% non-condensing
Noise Level	58 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10 000 ft (3048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

Documentation:

Download the Fortinet FortiGate 900G Series Data Sheet (PDF).

Pricing Notes:

• Hardware plus FortiCare Premium and FortiGuard Enterprise Protection
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, Data Loss Prevention, Application Control, URL, DNS & Video Filtering, Antispam, Attack Surface Security, and FortiConverter Service) plus term of contract
• Hardware plus FortiCare Premium and FortiGuard SMB Protection
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering , Antispam and FortiGate Cloud subscription service) plus term of contract
• Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract
• Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service)
• SMB Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam and FortiGate Cloud subscription service)
• Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service)
• Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
• FortiCare Essential Support
  FortiCare Essential Ticket Handling, Hardware Replacement, Firmware and General Upgrades, Application Control
• FortiCare Premium Support
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
• FortiCare Elite Support
  FortiCare Premium Support with FortiCare Elite Ticket Handling.
• Prices are for one year of Premium RMA support. Usual discounts can be applied.
• Annual contracts only. No multi-year SKUs are available for these services.
• Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
• Pricing and product availability subject to change without notice.
