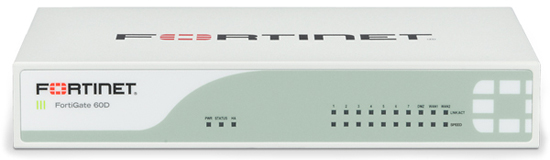

Fortinet FortiGate 60D
Integrated Threat Management for Front Line Locations

Overview:

The FortiGate/FortiWiFi-60D Series are compact, all-in-one security appliances that deliver Fortinet's Connected UTM. Ideal for small business, remote, customer premise equipment (CPE) and retail networks, these appliances offer the network security, connectivity and performance you need at a single low per-device price.

Enterprise-Class Protection that's Easy to Deploy and Manage:

• 1.5 Gbps throughput performance ensures your network security won't be a bottleneck
• Integrated switch and options for PoE simplify your network infrastructure
• Up to 2x WAN, 7x LAN and 1x DMZ interface ports (2x Power Over Ethernet ports on POE models)
• Runs on FortiOS 5 – the most powerful security operating system in the world delivers more security to fight advanced threats, more control to secure mobile devices, and more intelligence to build secure policies

Advanced Protection and Wireless Connectivity

You get advanced threat protection, including firewall, application control, advanced threat protection, IPS, VPN, and web filtering, all from one device that's easy to deploy and manage. With our FortiGuard® security subscription services you'll have automated protection against today's sophisticated threats.

Reduce the need for additional wireless access points by integrating a highbandwidth "fat-client" into your FortiGate with the FortiWiFi-60D. It's also a great option to secure mobile devices in BYOD environments with automatic device identification and customizable access and security policies.

VDOMs on the FortiGate/FortiWiFi-60D let you segment networks to enable guest and employee access, or protect things like cardholder data. You get the flexibility to match your business needs and meet compliance standards like PCI and HIPAA.

All-in-one High Performance Network Security

Built on the foundation of the FortiASIC System on a Chip 2 (SoC2) and FortiOS 5, the 60D series provides an integrated set of essential security technologies to protect all of your applications and data. You get the industry's best firewall plus the latest in Advanced Threat Protection, Intrusion Protection, Web-filtering and many new features like Sandboxing, Feature Select Options for simplifying configurations and deployments, and Contextual Visibility for enhanced reporting and management.

Key Features & Benefits
Unified Security	Multi-threat protection from a single device increases security and lowers costs
Simplified Licensing	Unlimited user licensing and comprehensive features
Multi-Port Interfaces	Multiple network interfaces and optional wireless connectivity enable data segmentation for compliance and flexible deployment

Hardware:

FortiGate 60D/60D-POE and FortiWiFi 60D/60D-POE

Interfaces

1. Console Port
2. USB Management Port for FortiExplorer
3. USB Port
4. 2x GE RJ45 WAN Ports
5. 1x GE RJ45 DMZ Ports
6. 7x GE RJ45 Internal Ports / 5x GE RJ45 Internal and 2x GE PoE Ports on POE models

Powered by SPU SoC2

• Combines a RISC-based CPU with Fortinet's proprietary SPU content and network processors for unmatched performance
• Simplifies appliance design and enables breakthrough performance for smaller networks
• Supports firewall acceleration across all packet sizes for maximum throughput
• Delivers accelerated UTM content processing for superior performance and protection
• Accelerates VPN performance for high speed, secure remote access

Install in Minutes with FortiExplorer

The FortiExplorer wizard enables you to easily and quickly set up and configure FortiGate and FortiWiFi platforms with easy-to-follow instructions. The application runs on Windows, Mac OS X desktops and laptops as well as popular mobile devices. Simply connect to the appropriate USB port on the appliance, and be fully protected in minutes.

3G/4G WAN Extensions

The FortiGate/FortiWiFi 60D Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Superior Wireless Coverage

A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 60D and provides speedy 802.11n coverage on both 2.4 GHz and 5 GHz bands. The dualband chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

• A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
• Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
• Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
• Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
• Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
• Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

• Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
• Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
• Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

• Enhanced Support — For customers who need support during local business hours only.
• Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
• Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
• Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:

	FortiGate 60D	FortiWiFi 60D	FortiGate 60D-POE	FortiWiFi 60D-POE
Hardware Specifications
GE RJ45 WAN Ports	2	2	2	2
GE RJ45 Internal Ports	7	7	5	5
GE RJ45 PoE Ports	–	–	2	2
GE RJ45 DMZ Ports	1	1	1	1
Wireless Interface	–	802.11 a/b/g/n/ac	–	802.11 a/b/g/n/ac
USB Ports (Client / Server)	1 / 1	1 / 1	1 / 1	1 / 1
Console (RJ45)	1	1	1	1
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	1.5 / 1.5 / 1.5 Gbps
Firewall Latency (64 byte UDP packets)	4 μs
Firewall Throughput (Packets Per Second)	2.2 Mpps
Concurrent Sessions (TCP)	500,000
New Sessions/Second (TCP)	4,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte packets)	1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL-VPN Throughput	30 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	100
IPS Throughput (HTTP / Enterprise Mix) 1	200 / 41 Mbps
SSL Inspection Throughput 2	32 Mbps
Application Control Throughput 3	50 Mbps
NGFW Throughput 4	23 Mbps
Threat Protection Throughput 5	20 Mbps
CAPWAP Throughput 6	250 Mbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode)	10 / 5
Maximum Number of FortiTokens	100
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.50 x 8.50 x 5.83	1.50 x 8.50 x 6.18	1.50 x 8.50 x 5.83	1.50 x 8.50 x 6.18
Height x Width x Length (mm)	38 x 216 x 148	38 x 216 x 157	38 x 216 x 148	38 x 216 x 157
Weight	1.9 lbs (0.9 kg)	1.9 lbs (0.9 kg)	1.9 lbs (0.9 kg)	1.9 lbs (0.9 kg)
Form Factor	Desktop	Desktop	Desktop	Desktop
Environment
Power Required	100–240V AC, 50–60 Hz
Maximum Current	110 V / 1.5 A, 220 V / 0.75 A
Total Available PoE Power Budget*	–	–	30.8 W	30.8 W
Power Consumption (Average / Maximum)	11.7 / 14 W	11.7 / 14 W	27.4 / 45.2 W	29.9 / 48.2 W
Heat Dissipation	40 BTU/h	40 BTU/h	154 BTU/h	165 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	20–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance
	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
* Maximum loading on each PoE/+ port is 30 W (802.3at).

Rackmount:

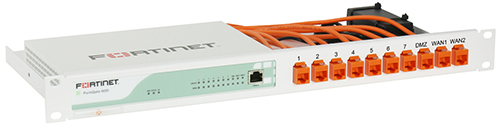

The RM-FR-T3 gives you the ability to mount your Fortinet desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixated to prevent an accidental loss of power. Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Other colors can be delivered on project basis

Specifications
Color	RAL 9003 Signal White
Height	1U
Dimensions (height x width x depth)	1.73 x 18.98 x 8.54 in.
Number of connections brought to the front	10
Console port to the front	Yes
Cables	10x 0.5m cables
Couplers	10x RJ45 couplers
Supported Models	- FortiGate 60C - FortiGate 60D
What's in the box	- 1x FortiRack + RJ45 couplers - Cables - Assembly materials - Installation guide
EAN	8718868918017
UPC	852754006018

Documentation:

Download the Fortinet FortiGate and FortiWiFi 60D Series Datasheet (PDF).
