Fortinet FortiGate 5144C
Scalable Data Center and Carrier-Graded Security Systems

Sorry, this product is no longer available. Please Contact Us for a replacement.

Click here to jump to more pricing!

Overview:

With so many enterprise initiatives around big data, public cloud and Internet of things, security infrastructure providers must deliver even more performance, reliability and scalability to their customers. Fortinet’s 5000-series chassis-based scalable platforms offer groundbreaking throughput and proven resilience to satisfy the most demanding carrier and enterprise datacenter requirements.

Consolidated Security Solutions

The FortiGate 5000-series bundles integrate modular carrier class hardware components with advanced FortiASIC™ acceleration and consolidated security from the FortiOS™ operating system to deliver up to 1 Tbps throughput. And with our in-house FortiGuard research team delivers dynamic, automated updates and ensures up-to-date protection against sophisticated threats. In addition, the 5000 series supports a web-based GUI, ‘single pane of glass’ management console and on-board reporting for deep visibility.

Highly Scalable, Flexible and Unmatched Performance

• Ideal for high-speed service provider, large enterprises or telecommunications carrier network.
• Security blades that are powered by FortiASICs that provide superior security functionality and high performance
• Modular design allows predictable growth.
• Highly available with Virtual Domain (VDOM) support for multi-tenant data center environment.
• Integrated high-speed 40 GE or 100 GE port delivers maximum flexibility and scalability.

Chassis:

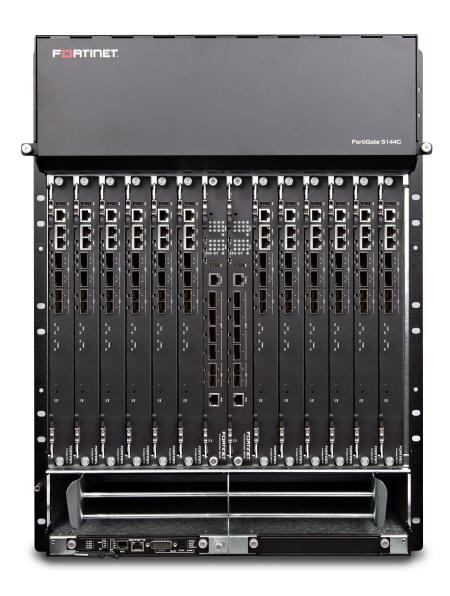

FortiGate 5144C
Next Generation 14U 19-inch rack mount ATCA chassis with 40 Gbps Backplane and capable of Dual-Dual-Star topology. It can install up to 14 FortiGate 5000-series blades.

Security Blade:

FortiGate 5001D
Latest purpose-built FortiGate security blade with carrier-class capacity and protection. Runs on FortiOS 5 — the most powerful security operating system in the world.

Networking Blade:

FortiController 5913C
High performance, FortiASIC DP2 accelerated networking blade with 100 GE interfaces and 10/40-gigabit fabric and 1-gigabit base backplane channel.

Specifications:

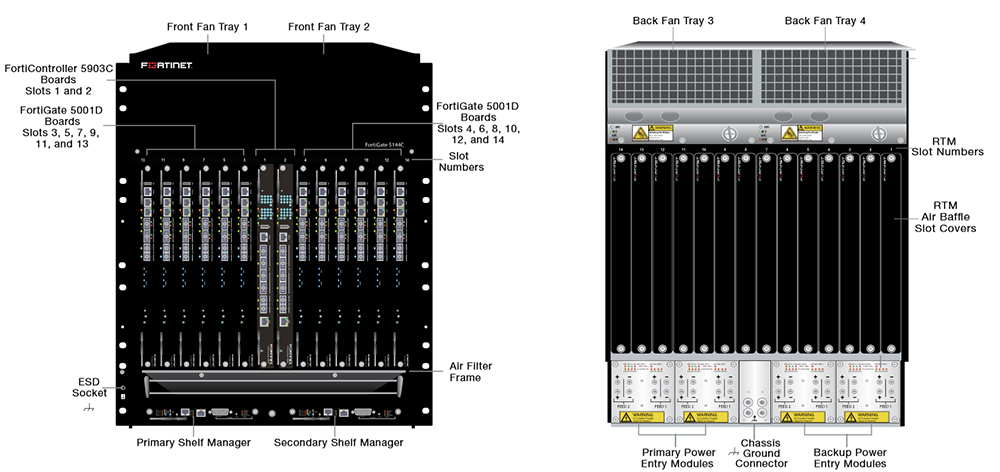

	FortiGate 5144C
Hardware Specifications
Available Slots	14
High Availability Backplane Fabric	Built-in
40 Gbps Backplane Support	Yes
Shelf Manager (Default / Maximum)	1 / 2
Dual Networking Blade Support	Yes
Dimensions
Height x Width x Length (inches)	24.44 x 19.06 x 21.63
Height x Width x Length (cm)	62.1 x 48.4 x 55.0
Weight	108 lb (50 kg)
Maximum Capacity**
Firewall Throughput	1.12 Tbps
Power and Environment
Power Required	DC/AC1
Chassis Only Power Consumption (Maximum) ***	960 W
Heat Dissipation (Maximum) ***	3,276 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-13–158°F (-35–70°C)
Humidity	5–90% non-condensing
Compliance
Certifications	FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, UL/cUL

¹ Optional FortiGate 5053B Power Supply Shelf used to provide AC power to the FortiGate
** Based on fully populated FortiGate 5001D
*** Please refer to respective Chassis Guide for computation of total power requirement.

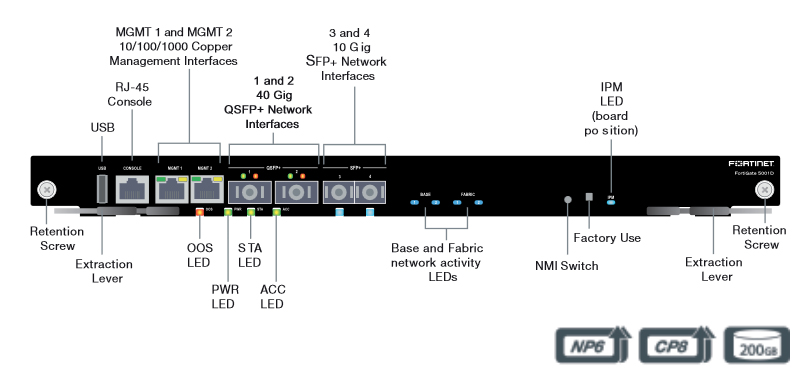

	FortiGate 5001D
Interfaces and Storage
40 GE QSFP+ Ports	2
10 GE SFP+ Ports	2
GE RJ45 Ports	2
RJ45 Console Port	1
Included Transceivers	2x 10 GE SFP+ SR
Local Storage	200 GB
Syetem Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	80 / 80 / 45 Gbps
Firewall Latency (64 byte UDP packets)	3 μs
Firewall Throughput (Packets Per Second)	67.5 Mbpps
Concurrent Sessions (TCP)	23 Mil
New Sessions/Sec (TCP)	565,000
Maximum Firewall Policies	100,000
IPsec VPN Throughput (512 byte packets)	25 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	64,000
SSL-VPN Throughput	6.5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	25,000
IPS Throughput	18 Gbps
Antivirus Throughput (Proxy Based / Flow Based)	5.6 / 13 Gbps
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	20,000
Maximum Number of FortiAPs	1,024
Power and Environment
Power Consumption (Average / Maximum)	189 / 226 W
Heat Dissipation (Average)	774 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-13–158°F (-25–70°C)
Humidity	20–90% non-condensing
Compliance
Certifications	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB, ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
NEBS Certified	–

* Operating in Standalone Mode
Note: All performance values are "up to" and vary depending on system configuration. Antivirus performance is measured using 44 Kbyte HTTP files. IPS performance is measured using 1 Mbyte HTTP files.

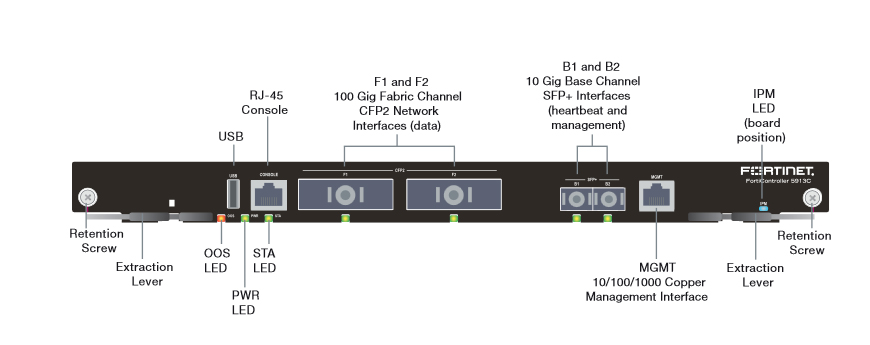

	FortiController 5913C
Interfaces
Fabric Channel Interfaces	2x 100 GE CFP2
Base Channel Interfaces	2x 10 GE SFP+
Management Interfaces	1x GE RJ45
Included Transceivers	2x 10 GE SFP+ SR
40 GE Backplane Fabric Support	Yes
10 GE Backplane Fabric Support	Yes
GE Backplane Fabric Support	–
System Performance
Maximum Traffic Throughput	200 Gbps
Maximum Concurrent Sessions	135 Million
New Sessions/Second (TCP)	3.6 Million
Power and Environment
Power Consumption (Average / Maximum)	280 / 400 W
Heat Dissipation	955 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-13–158°F (-35–70°C)
Humidity	5–90% non-condensing
Compliance
Certifications	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

Documentation:

Download the Fortinet FortiGate-5000 Series Bundle Datasheet (.PDF)

Pricing Notes:

• Hardware plus FortiCare Premium and FortiGuard Enterprise Protection
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, Data Loss Prevention, Application Control, URL, DNS & Video Filtering, Antispam, Attack Surface Security, and FortiConverter Service) plus term of contract
• Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, URL, DNS & Video Filtering and Antispam Service) plus term of contract
• Enterprise Protection (IPS, AI-based Inline Malware Prevention, Inline CASB Database, DLP, App Control, Adv Malware Protection, URL/DNS/Video Filtering, Anti-spam, Attack Surface Security, Converter Svc, FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, Data Loss Prevention, Application Control, URL, DNS & Video Filtering, Antispam, Attack Surface Security, and FortiConverter Service)
• Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, URL, DNS & Video Filtering and Antispam Service)
• Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
• FortiCare Essential Support
  FortiCare Essential Ticket Handling, Hardware Replacement, Firmware and General Upgrades, Application Control
• FortiCare Premium Support
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
• FortiCare Elite Support
  FortiCare Premium Support with FortiCare Elite Ticket Handling.
• Prices are for one year of Premium RMA support. Usual discounts can be applied.
• Annual contracts only. No multi-year SKUs are available for these services.
• Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
• Pricing and product availability subject to change without notice.
