Fortinet FortiGate 40F-3G4G
Next Generation Firewall Secure SD-WAN

Fortinet FortiWifi 40F-3G4G

Purchasing Options:

We provide you with the freedom to choose and mix and match between:

A la carte
Optimized bundles for products and use cases
Enterprise Agreement

This data sheet includes purchasing options and bundles for the FortiGate product line. For enabling FortiGuard Security Services on all other products and for other use cases, please refer to the relevant product data sheet.

FortiGate Hardware and VM

SD-WAN and ZTNA capabilities are made available with FortiOS on all FortiGates

	Individual	Bundle
FortiGuard Security Services	A La Carte	Enterprise	SMB¹	UTP	ATP
IPS
Advanced Malware Protection (AMP)
Antivirus
Botnet
Mobile Malware
FortiGate Cloud Sandbox
Outbreak Prevention
Web Security
Web and Content Filtering
Secure DNS Filtering
Video Filtering
Antispam
IoT Query Service
OT Protocols Signature Service
NOC Services
FortiGate Cloud (SMB Logging and Cloud Management)
FortiManager Cloud²
Security Fabric Rating and Compliance Monitoring
FortiConverter Service
SD-WAN Bandwidth Monitoring
SOC Services
FortiCloud SOCaaS (managed service)
FortiCare Support Services
24x7
Web, Chat, and Telephone
1-hour Response Time SLA
Base Services (included with all FortiCare support contracts)
Application Control
Geo IP Updates
Device/OS Detection
IoT Mac Database
Trusted Certificate Database
Internet Service (SaaS) Database
DDNS (v4/v6)
Important Add-ons
FortiDeploy	Add-on (1 unit per P.O. to route all FortiGates for zero-touch provisioning)
FortiCloud Premium	Add-on (required to deploy base VMs for FortiManager Cloud and FortiAnalyzer Cloud)
FortiAnalyzer Cloud Storage top-up	Top up as needed using central FortiCloud account add-on

¹ SMB Bundle is available for FortiGate 80F-series and below.
² Requires FortiCloud Premium to deploy the base FortiManager Cloud.

Download the FortiGuard Security Services Data Sheet (PDF).

FortiGate Cloud

Management and Services for FortiGate Firewalls

FortiGate Cloud is a cloud-based SaaS, offering a range of management and services for Fortinet FortiGate Firewalls. FortiGate Cloud offers zero touch deployment, configuration management, reporting, and analytics. FortiGate Cloud can grow with your requirements from a single FortiGate to a complete MSP management solution for thousands of devices across multiple customers.

Free Service Option

FortiGate Cloud offers a free tier that allows deployment and visibility of FortiGates
Data retention is limited to seven days

Full Subscription Option

Configuration management and backup for FortiGates
One year of online logs, analysis, and reporting

Provisioning

Bulk import devices using FortiCloud Key
Simple zero touch deployment

SD-WAN

Configure SD-WAN interfaces
Setup and manage application prioritization
Deploy and manage the entire SD-WAN deployment

International Cloud Management

Isolated instances for Europe, America, and Asia ensure data separation for privacy laws
Built-in free Two-factor authentication

Multi-Tenancy

A single license enables multi-tenancy for many customers
Role based (Admin, Read Only) access control
Simple Central visibility and access

FortiGate Cloud Subscription is included in SMB Protection

Download the FortiGuard Cloud (PDF).

Fortinet Products

FortiGate 40F-3G4G Base ApplianceBack to top

FortiGate-40F-3G4G 5 x GE RJ45 ports (including 1 x WAN Port, 4 x Internal Ports) with Embedded 3G/4G/LTE wireless wan module, 3 external SMA WWAN antennas included

#FG-40F-3G4G
List Price: ~~$955.00~~
Our Price: $703.93

FortiGate-40F-3G4G Hardware plus FortiCare Premium and FortiGuard Enterprise ProtectionBack to top

Includes: Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, Data Loss Prevention, Application Control, URL, DNS & Video Filtering, Antispam, Attack Surface Security, and FortiConverter Service) plus term of contract

FortiGate-40F-3G4G Hardware plus 1 Year FortiCare Premium and FortiGuard Enterprise Protection

#FG-40F-3G4G-BDL-809-12
List Price: ~~$1,766.75~~
Our Price: $1,302.27

FortiGate-40F-3G4G Hardware plus 3 Year FortiCare Premium and FortiGuard Enterprise Protection

#FG-40F-3G4G-BDL-809-36
List Price: ~~$3,146.73~~
Our Price: $2,319.45

FortiGate-40F-3G4G Hardware plus 5 Year FortiCare Premium and FortiGuard Enterprise Protection

#FG-40F-3G4G-BDL-809-60
List Price: ~~$4,404.94~~
Our Price: $3,246.88

FortiGate 40F-3G4G Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)Back to top

Includes: Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract

FortiGate-40F-3G4G Hardware plus 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

#FG-40F-3G4G-BDL-950-12
List Price: ~~$1,623.50~~
Our Price: $1,196.68

FortiGate-40F-3G4G Hardware plus 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

#FG-40F-3G4G-BDL-950-36
List Price: ~~$2,759.95~~
Our Price: $2,034.36

FortiGate-40F-3G4G Hardware plus 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

#FG-40F-3G4G-BDL-950-60
List Price: ~~$3,796.13~~
Our Price: $2,798.13

Click here to jump to more pricing!

Overview:

The Fortinet Enterprise Firewall Solution

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Security

Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
Prevents and detects against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services

Performance

Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
Provides industry-leading performance and protection for SSL encrypted traffic

Certification

Independently tested and validated best security effectiveness and performance
Received unparalleled third-party certifications from NSS Labs

Networking

Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments

Management

Includes a Management Console that is effective, simple to use, and provides comprehensive network automation & visibility.
Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation

Firewall	IPS	NGFW	Threat Protection	Interfaces
5 Gbps	1 Gbps	800 Mbps	600 Mbps	Multiple GE RJ45 \| WiFi variants \| 3G4G/LTE

Hardware:

FortiGate / FortiWifi 40F 3G4G

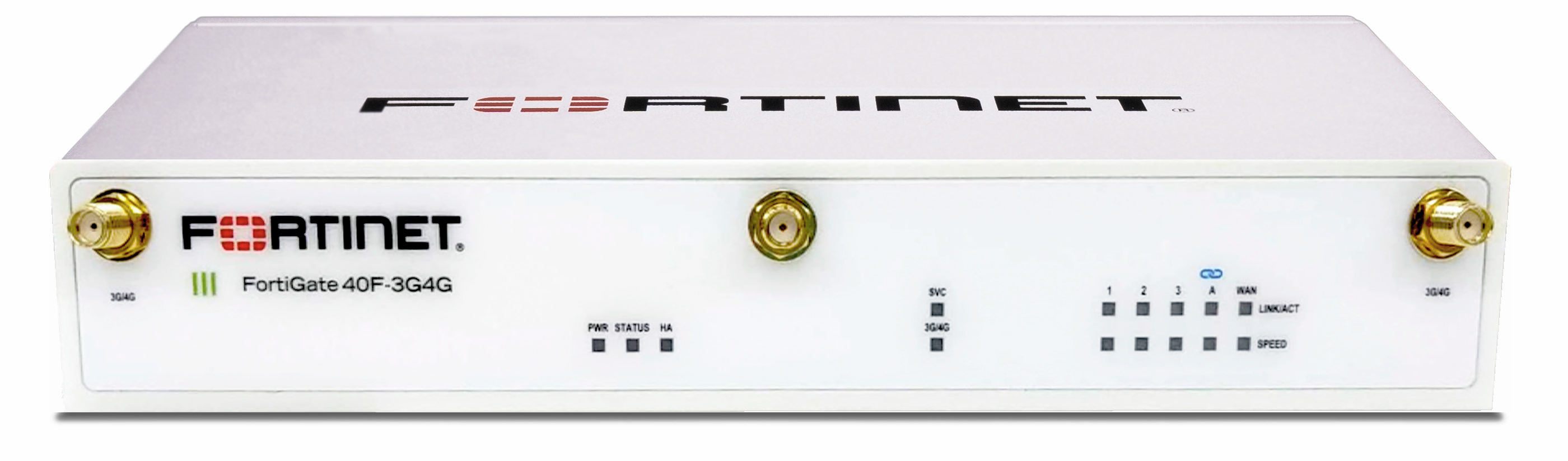

FortiGate 40F-3g4G Hardware

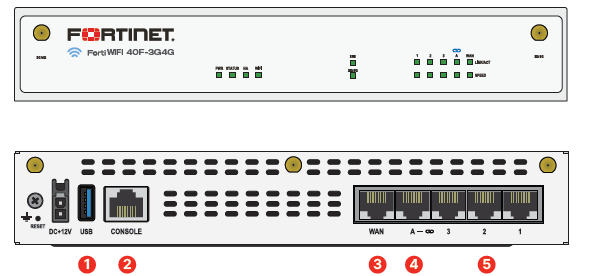

Interfaces

1x USB Port
1x Console Port
1x GE RJ45 WAN Port
1x GE RJ45 FortiLink Port
3x GE RJ45 Ethernet Ports

Powered by Purpose-builtSecure SD-WAN ASIC SOC4

Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
Delivers industry’s fastest application identification and steering for efficient business operations
Accelerates IPsec VPN performance for best user experience on direct internet access
Enables the best of breed NGFW Security and Deep SSL Inspection with high performance
Extends security to access layer to enable SD-Branch transformation with accelerated and integrated switch and access point connectivity

3G/4G WAN Extensions

The FortiGate/FortiWiFi 40F-3G4G Series includes built-in 3G4G/LTE modem that allows additional WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with a superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Secure Access Layer

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.

Deployment:

Deployment

Next Generation Firewall (NGFW)

Reduce the complexity and maximize your ROI by integrating threat protection security capabilities into a single high-performance network security appliance, powered by Fortinet’s Security Processing Unit (SPU)
Full visibility into users, devices, applications across the entire attack surface and consistent security policy enforcement irrespective of asset location
Protect against network exploitable vulnerabilities with industry-validated IPS that offers low latency and optimized network performance
Automatically block threats on decrypted traffic using the Industry’s highest SSL inspection performance, including the latest TLS 1.3 standard with mandated ciphers
Proactively block newly discovered sophisticated attacks in real-time with AI-powered FortiGuard Labs and advanced threat protection services included in the Fortinet Security Fabric

Secure SD-WAN

Consistent business application performance with accurate detection and dynamic WAN path steering on any bestperforming WAN transport
Accelerated Multi-cloud access for faster SaaS adoption with cloud-on-ramp
Self-healing networks with WAN edge high availability, subsecond traffic switchover-based and real-time bandwidth compute-based traffic steering
Automated Overlay tunnels provides encryption and abstracts physical hybrid WAN making it simple to manage
Simplified and intuitive workflow with FortiManger for management and zero touch deployment
Enhanced analytics both real-time and historical provides visibility into network performance and identify anomalies
Strong security posture with next generation firewall and real- time threat protection

Specifications:

	FORTIGATE 40F-3G4G	FORTIWIFI 40F-3G4G
Interfaces and Modules
Hardware Accelerated GE RJ45 WAN Ports	1
Hardware Accelerated GE RJ45 Internal Ports	3
Hardware Accelerated GE RJ45 FortiLink Ports	1
Cellular Modem	3G4G / LTE
Wireless Interface	-	Single Radio (2.4GHz/5GHz), 802.11 a/b/g/n/ac-W2
Antenna Ports (SMA)	3	6
USB Ports	1
SIM Slots (Nano SIM)	2
Console (RJ45)	1
Internal Storage	-
System Performance — Enterprise Traffic Mix
IPS Throughput	1 Gbps
NGFW Throughput	800 Mbps
Threat Protection Throughput	600 Mbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	5/5/5 Gbps
Firewall Latency (64 byte UDP packets)	2.97 μs
Firewall Throughput (Packets Per Second)	7.5 Mpps
Concurrent Sessions (TCP)	700,000
New Sessions/Second (TCP)	35,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL-VPN Throughput	490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	320
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	55,000
Application Control Throughput (HTTP 64K)	990 Mbps
CAPWAP Throughput (HTTP 64K)	3.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	8
Maximum Number of FortiAPs (Total / Tunnel Mode)	16 / 8
Maximum Number of FortiTokens	500
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.6 x 8.5 x 6.3
Height x Width x Length (mm)	40.5 x 216 x 160
Weight	2.2 lbs (1 kg)
Form Factor	Desktop
Input Rating	12Vdc, 3A
Power Required	Powered by external DC power adapter 100-240V AC, 50/60 Hz
Current (Maximum)	100V AC / 0.3A, 240V AC / 0.2A
Power Consumption (Average / Maximum)	15.8 W / 18.6 W	18.6 W / 19.8 W
Heat Dissipation	63.5 BTU/h	67.6 BTU/h
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Radio Specifications
Multiple (MU) MIMO	-	3x3
Maximum Wi-Fi Speeds	-	1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
Maximum Tx Power	-	20 dBm
Antenna Gain	-	3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz

Fortinet Fabric Security:

Fabric Security

Security Fabric

The industry’s highest-performing cybersecurity platform, powered by FortiOS, with a rich ecosystem designed to span the extended digital attack surface, delivering fully automated, self-healing network security.

Broad: Coordinated detection and enforcement across the entire digital attack surface and lifecycle with converged networking and security across edges, clouds, endpoints and users
Integrated: Integrated and unified security, operation, and performance across different technologies, location, deployment options, and the richest Ecosystem
Automated: Context aware, self-healing network & security posture leveraging cloud-scale and advanced AI to automatically deliver near-real-time, user-to-application coordinated protection across the Fabric

FortiOS™ Operating System

FortiOS, Fortinet’s leading operating system enable the convergence of high performing networking and security across the Fortinet Security Fabric delivering consistent and context-aware security posture across network endpoint, and clouds. The organically built best of breed capabilities and unified approach allows organizations to run their businesses without compromising performance or protection, supports seamless scalability, and simplifies innovation consumption. The release of FortiOS 7 dramatically expands the Fortinet Security Fabric’s ability to deliver consistent security across hybrid deployment models consisting on appliances, software and As-a-Service with SASE, ZTNA and other emerging cybersecurity solutions.

Services

FortiGuard™ Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations and other network and security vendors, as well as law enforcement agencies.

FortiCare™ Services

Fortinet is dedicated to helping our customers succeed, and every year FortiCare services help thousands of organizations get the most from their Fortinet Security Fabric solution. We have more than 1,000 experts to help accelerate technology implementation, provide reliable assistance through advanced support, and offer proactive care to maximize security and performance of Fortinet deployments.

Documentation:

Download the Fortinet FortiGate 40F-3G4G Series Data Sheet (PDF).

Pricing Notes:

Hardware plus FortiCare Premium and FortiGuard Enterprise Protection
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, Data Loss Prevention, Application Control, URL, DNS & Video Filtering, Antispam, Attack Surface Security, and FortiConverter Service) plus term of contract
Hardware plus FortiCare Premium and FortiGuard SMB Protection
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering , Antispam and FortiGate Cloud subscription service) plus term of contract
Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract
Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service)
SMB Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam and FortiGate Cloud subscription service)
Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service)
Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
FortiCare Essential Support
FortiCare Essential Ticket Handling, Hardware Replacement, Firmware and General Upgrades, Application Control
FortiCare Premium Support
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
FortiCare Elite Support
FortiCare Premium Support with FortiCare Elite Ticket Handling.
Prices are for one year of Premium RMA support. Usual discounts can be applied.
Annual contracts only. No multi-year SKUs are available for these services.
Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
Pricing and product availability subject to change without notice.
