Fortinet FortiAP Cam-214B
IP-Based Video Security Cameras

Overview:

Complete Camera Coverage

Get complete visual coverage inside and out with FortiCameras. With options for indoor and outdoor, vandal-proof, weatherproof, low-light night vision and 2-way audio, there’s a FortiCam that fits every environment. Compact and unobtrusive, all FortiCams deliver crisp, high-resolution HDTV-quality images to the FortiRecorder NVR, either continuously or triggered by a range of events, including motion and/or audio detection.

Easy to Set Up, License-Free

With FortiCameras, installation is a breeze. Both cameras support PoE, eliminating the need for AC power. Just connect them to the FortiRecorder network via a PoE switch and you’re up and running. No software installation, no patches and no per-camera fees.

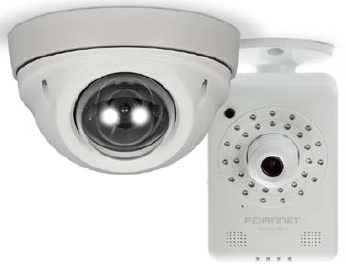

FortiCam-MB13

Discreet and compact, the FC-MB13 indoor camera fits anywhere. But don’t let its size fool you — this camera can see in the dark and detect motion or audio. With 30 built-in infrared LED bulbs, it can capture events up to 50 feet away at night. With DI/DO for external alarm and sensor devices.

FortiCam-20A

Vandal-proof (IK10), weatherproof (IP67) and motion-detecting, the FCM-20A is a solid but subtle powerhouse that’s great for securing your perimeter but still looks unobtrusive indoors.

The Power to See Everything: the Complete Video Security Solution

Combined with the FortiRecorder NVR, FortiCameras give you everything you need for complete facility video security.

• Scheduled and manual recording
• Motion detection and continuous recordings
• Snapshot notifications and alerts
• Web-based interface (no software installation required)
• Camera live view and video playback
• Event monitor with timeline
• RADIS, LDAP, SNMP and remote data storage support for flexible network integration

Features:

Specifications:

Model	FORTICAM-MB13 CAMERA	FORTICAM-20A CAMERA
Hardware Specifications
Format	Indoor, infrared night vision	Indoor/outdoor, vandal-proof, fixed dome
Sensor Type	1/2.5” CMOS	1/2.5” CMOS
Iris	F1.6	F1.6
Focal Length	f = 4 mm	f = 4 mm
View Angle	H:50° V:40° D:62°	H:40° V:32° D:52°
Pan / Tilt / Rotation	-	+-35° / 0–90° / +-180°
IRLED / IRC	15m / yes	– / –
Streaming Protocol	RTSP / HTTPS	RTSP / HTTPS
Video Compression	H.264	H.264
Image Resolution	1280 x 1024 at 30 frames per second 640 x 512 at 30 frames per second 320 x 256 at 30 frames per second	1280 x 1024 at 30 frames per second 640 x 512 at 30 frames per second 320 x 256 at 30 frames per second
Audio	Built-in mic and speaker
Dimensions
Height x Width x Length (in)	4.9 x 6.4 x 6.4	2.1 x 4.3 x 4.3
Height x Width x Length (mm)	125 x 163 x 163	53.3 x 109 x 109
Weight	1.04 lbs (470 g)	1.02 lbs (460 g)
Environment
Power Required	PoE (802.3af)	PoE (802.3af)
Power Consumption (AVG)	6.4 watts	5.5 watts
Operating Temperature	32–122°F (0–50°C)	-4–122°F (-20–50°C)
Humidity	10–80% non-condensing	10–80% non-condensing
Compliance
	FCC Class B, CE Mark	FCC Class B, CE Mark, Vandal-proof (IK10), weatherproof (IP67)

Documentation:

Download the Fortinet FortiCamera Series Datasheet (PDF).
