Fortinet FortiADC-420F
Advanced Application Delivery Controller

Overview:

Application Delivery with Security and Optimization

In recent years, the landscape of application delivery has undergone significant transformations influenced by evolving technology trends and the increasing adoption of cloud computing. Many organizations are integrating on-premises data centers with public cloud environments to optimize application performance, enhance scalability, and improve overall business agility.

Introduction

FortiADC, the advanced Application Delivery Controller (ADC), optimizes application delivery, enhances performance, and ensures application security whether hosted on-premises or in the cloud.

FortiADC offers robust L4-L7 load-balancing capabilities with Scripting support for content manipulation and Advanced SSL Services (Offloading and mirroring).

FortiADC also offers application acceleration, authentication, and built-in security features like Web Application Firewall protection for any application threats AL (Adaptive Learning), and OWASP Top10 Compliance Policy), DDoS Protection, ZTNA, and more.

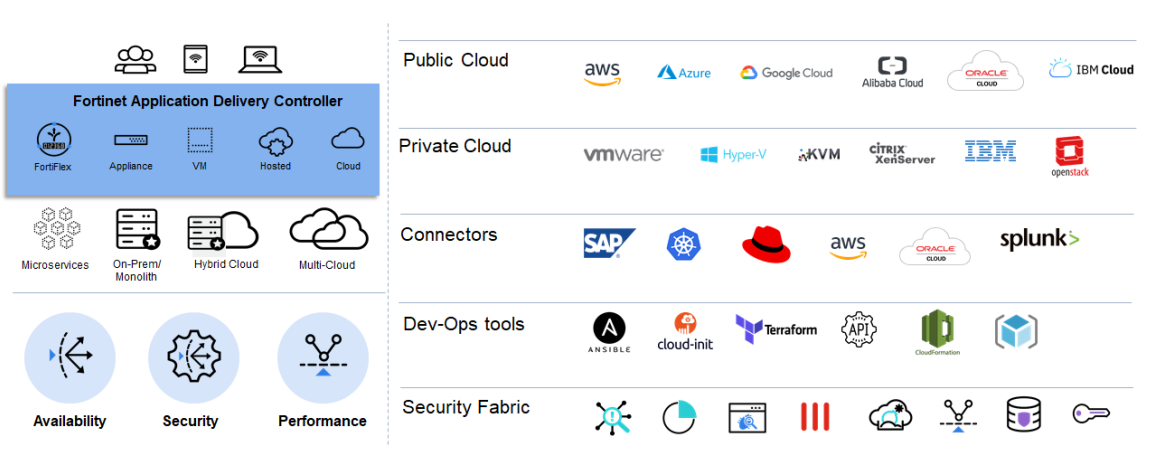

With flexible deployment options (HW, VM, FortiFlex, and Cloud Providers) and integration into the Fortinet Security Fabric, FortiADC empowers businesses to deliver exceptional application experiences and security.

Product Highlights

• Advanced L4-L7 Application LB
• FortiGSLB cloud integration maximizes service availability
• AL (Adaptive Learning), and OWASP Top‑10 protection and compliance with web application firewall
• Multi-deployment mode with hardware, VM, FortiFlex or Cloud providers (PAYG/BYOL)
• SSL security and visibility with hardware-based solution
• Automation and Fabric Connector to third party solutions such as K8s and OCP Ingress Controller, SAP, AWA and OCI
• User authentication and authorization via MFA and SSO
• Application anywhere with global server LB

Highlights:

Application Availability

Applications are the lifeblood of a company’s online presence. Unresponsive applications can result in lost revenue and customers taking their future business elsewhere. Application performance, scalability, and resilience are key but none of this matters unless the end-user has a good experience and completes their transaction.

FortiADC is a dedicated Application Delivery Control solution that provides a multi-tenancy solution (VDOM and ADOM), high availability, and scalability with hybrid solution deployment (on-premises and cloud offering) to your applications.

Web Application Protection

FortiADC Web Application Firewall (WAF) provides a comprehensive security solution designed to protect web applications from a wide range of threats. Our WAF includes robust features such as AL (Adaptive Learning), which dynamically analyzes client and server traffic to build policies in real-time for blocking web attacks. In addition to adaptive learning, FortiADC WAF offers extensive WAF signatures, ensuring protection against the OWASP Top 10 vulnerabilities. It also includes advanced API security and safeguards against credential stuffing attacks, delivering a holistic and intelligent approach to application security.

Application Anywhere (GSLB)

The FortiADC included Global Server Load Balancing (GSLB) module on-prem or in the cloud (FortiGSLB Cloud) makes your network reliable and available by scaling applications across multiple data centers for disaster recovery or to improve application response times. Customers can set up rules based on site availability, data center performance, and network latency.

Data Optimization

FortiADC provides multiple services that speed the delivery of applications to users. The PageSpeed suite of website performance enhancement tools can automatically optimize HTTP, CSS, Javascript, and image delivery to application users. FortiADC also provides Dynamic Caching and HTTP Compression and Decompression to improve end-user experience and server productivity.

Application Access Management

FortiADC provides centralized user authentication and authorization services to web applications. FortiADC acts as a gatekeeper to offload HTTP authentication and authorization to customer applications using single sign-on (SSO) services, SAML, LDAP, RADIUS, and MFA (using FortiToken Cloud and Google authenticator).

AI Security

FortiADC now supports AI security with Threat Analytics and FortiGuard Advanced Bot Protection.

• Threat Analytics continuously assesses your security posture by monitoring attacks on your web assets and evaluating your WAF and Security configuration and, based on the Insights, provides recommended actions that can enhance your WAF and Security configuration settings, block future attacks, and reduce false positives.
• FortiGuard Advanced Bot Protection is a comprehensive defense against the ever-present threat of bots. It provides a cutting-edge SaaS solution to safeguard your web applications and digital assets from the everevolving threat of bots using client and server telemetry and deep learning.

Key Features:

Advanced Security Services

As the threat landscape evolves, many new risks require a multi-pronged approach for protecting applications. FortiADC provides multi-vector protections starting from the network— IPS, Antivirus, IP Reputation, and to the Applications—DLP, Sandbox, Credential Stuffing, and WAF Signatures, and up to AI Security with Threat Analytics and Advanced Bot Protection.

SSL Offloading and Visibility

FortiADC delivers high capacity decryption and encryption with the latest cryptography standard using hardwarebased SSL ASIC. FortiADC provides SSL offloading, SSL inspection and visibility to inspect traffic for threats, speeds up server response, and reduces the load on the backend server. FortiADC also integrates with Gemalto’s SafeNet Enterprise Hardware Security Module (HSM).

Scripts and DevOps Tools

FortiADC Scripts provides the flexibility to create custom event-driven rules using predefined commands, variables, and operators. Using easy-to-create scripts, you get the flexibility you need to extend your FortiADC with an advanced content rewrite and application decisions. FortiADC also offers a range of DevOps tools, such as RestfulAPI, Declarative API, Terraform, cloud-init, and Ansible, enhancing the efficiency of application deployment, management, and automation.

Automation and Connectors

FortiADC Fabric Connectors provide open API-based integration and orchestration with multiple software-defined networks (SDN), cloud, management, and partner technology platforms. Fortinet Fabric Connectors deliver turnkey, open, and deep integration into third party services such as K8s, AWS, OCI, and SAP, in multi-vendor ecosystems, enabling scalability, security automation, and simplified management.

Analytics and Visibility

FortiADC offers a comprehensive monitoring system for your network and application. With FortiView, customers can get real-time and historical data into a single view on your FortiADC. We also provide a network logical topology of real-servers, user/application data-analytics, security threats, attack maps, and some other system events and alerts.

FortiADC supports ADC Manager to manage multiple FortiADC devices remotely, and integrates with third party solutions such as Splunk, FortiAnalyzer, and FortiSIEM for more visibility, correlation, automated response, and remediation.

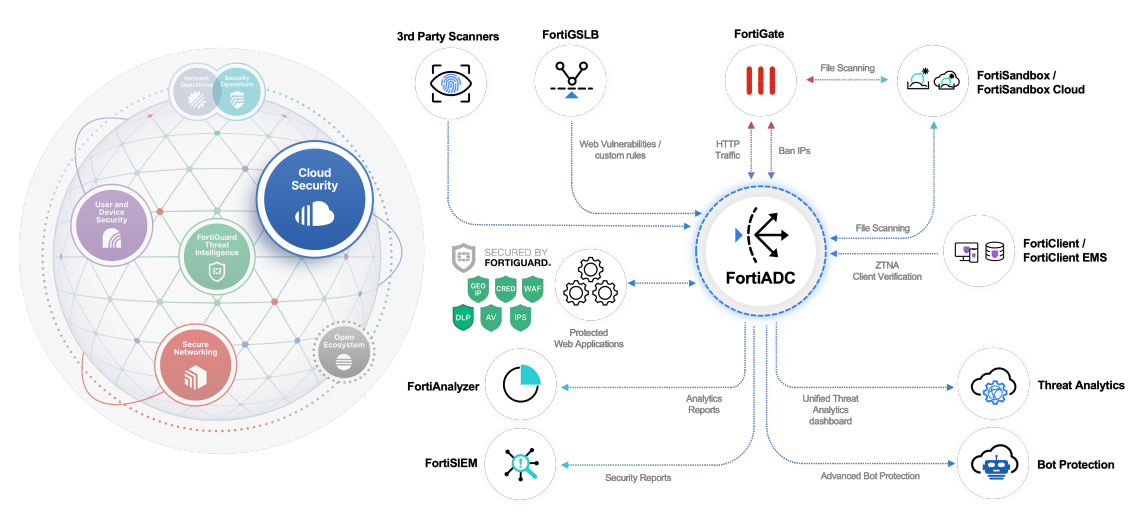

Security Fabric Connectors

FortiADC fabric connectors seamlessly integrate FortiADC with various Fortinet Security Fabric solutions, enabling automated processes for managing dynamic security updates without manual intervention. These connectors define the type of integration and facilitate a cohesive ecosystem for Fortinet products to work together harmoniously.

FortiADC supports a range of Security Fabric Integration with: FortiGate, FortiSIEM, FortiAnalyzer, FortiGSLB, Threat Analytics, and FortiGuard Advanced Bot Protection. The overarching goal is to enhance collaboration and automation across the Fortinet product suite through Fabric Connectors.

FortiADC Features

USE CASES	SUPPORTED FEATURES
Application Availability	Advanced L4-L7 Load-balancing (Application and protocols) Presistency, Advanced Health-check, Content Routing, and Rewrite Scripting Support and L7 Content Routing and Manipulation SSL Advanced Services TLS1.3 (Offloading/Mirroring) and SSL Forward Proxy SSL Management (client/server side) + Let’s Encrypt support
Application Anywhere	Global Server Load Balancing (Geo-location, RR, Weight, and more) Geo-IP Protection and IP Reputation DNS Security and DNSSEC
Application Optimization	Dynamic Caching and Compression HTTP Page Speed (Optimization and Multiplexing)
Application Protection	Web Application Firewall and Web Vulnerability Scanner API Security (OpenAPI, API-GW, API Discovery) WAF (AL) Adaptive Learning Support FortiGuard Web Application Security Signature Credential Stuffing Defense OWASP top-10 Compliance Advanced Bot Protection
Application Access Security	Application Authentication — Form, Basic, and SSO SAML, Kerberos, Auth2.0, LDAP, RADIUS, FortiToken, Google Auth FortiGuard Cloud Sandbox FortiGuard Data Loss Prevention
System and Networking	VDOM/ADOM Support Full NAT (1:1, Dynamic, Statis, and Hide-NAT) High Availability (VRRP A/A, A/P Failover) IPv4 and IPv6 Support Dyanmic Routing (BGP, OSPF) and NVGRE and VXLAN Support
Networking Security	DDoS Protection (Network and Application) Stateful Firewall Zero Trust Application Gateway FortiGuard Intrusion Prevention FortiGuard Malware (AV) Protection
Data Analytics and SecOps	FortiView — Data Analytics OWASP top-10 Real Time Monitoring Real Time Reporting, Monitoring, Logging, and SNMP Threat Analytics AI
Fabric Integration and DevOps Tools	Integration — SAP, K8s, OCP, AWS, MS (SharePoint, RDP, Exchange), Splunk, Cisco-ACI, and more Security Fabric — FortiGate, FortiSIEM, FortiAnalyzer, FortiClient, FortiAuthenticator, FortiGSLB Restful, and Declerative API, Ansible, Terraform, and Cloud-init
24x7 Premium Support	FortiCare Premium Support

* Feature availability is dependent on the subscription to specific license bundles.

Specifications:

	FortiADC 420F
System Performance
L4/L7 Throughput	20 Gbps
L4 CPS	700 000
L4 HTTP RPS	2.1M
Maximum L4 Concurrent Connection	25M
L7 CPS (1:1) *	200 000
SSL CPS/TPS (1:1) 2K keys **	20000
SSL Bulk Encryption Throughput	10 Gbps
Compression Throughput	14 Gbps
SSL Acceleration Technology	ASIC
Virtual Domains	45
Hardware Specifications
Memory	32 GB
Network Interfaces	4x 10 GE SFP+, 4x GE SFP, 4x GE RJ45
10/100/1000 Management Interface	2
Storage	120 GB SSD
Management	HTTPS, SSH CLI, Direct Console DB9 CLI, SNMP
Power Supply	Single (support Dual hot-swap PSU)
Trusted Platform Module (TPM)	No
Dimensions
Height x Width x Length (inches)	22.4 x 23.6 x 9
Height x Width x Length (mm)	44 x 438 x 420
Weight	14.11 lbs (6.4 kg)
Environment
Form Factor	1U Appliance
Input Voltage	100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum)	68 W / 140 W
Maximum Current	9A / 17A
Heat Dissipation	232 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-4–167°F (-20–75°C)
Humidity	10–85% relative humidity, non-operating, non-condensing
Forced Airflow	Front to Back
Compliance
Regulatory Compliance	FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/c
Safety	CSA, C/US, CE, UL

All performance values are “up to” and vary depending on the system configuration.
** Layer 7 CPS — measures number of new HTTP connections (1 HTTP request per TCP connection).
** Tested with 1 HTTP request per SSL connection; SSL Ciphers=RSA-AES256-SHA; 2K Keys.

Documentation:

Download the FortiADC Series Datasheet (.PDF)
