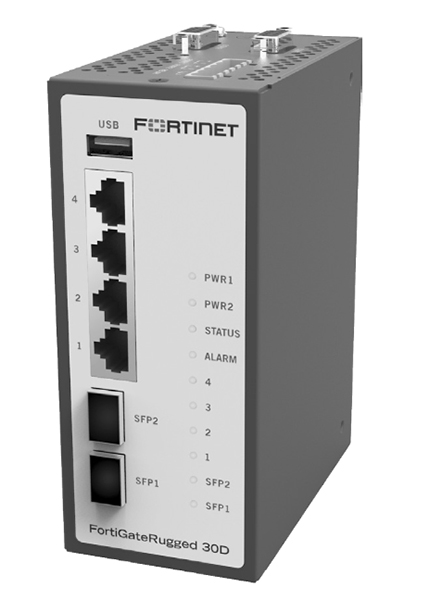

Fortinet FortiGate Rugged 30D
Mission Critical Security Solutions for Harsh Environments

Sorry, this product is no longer available, please contact us for a replacement.

Click here to jump to more pricing!

Overview:

While traditional security solutions are designed and intended for the world of offices and corporations, the FortiGate Rugged Series offers industrially-hardened, all-in-one security appliance that delivers specialized threat protection for securing critical industrial and control networks against malicious attacks.

Ruggedized Protection for Harsh Environments

The ruggedized FortiGate meets all required performance and reliability standards for operating in demanding industrial settings. It was designed from the outset to operate reliably in harsh electrical and environmental conditions, including those with high levels of electrical and radio frequency interference and at wide ambient temperature ranges.

Industrial Network Security

Fortinet’s FortiOS operating system running on the ruggedized platform provides specialized protections for industrial networks such as antivirus and Intrusion Protection (IPS).

Features & Benefits

• Ruggedized design — fanless and use of robust components ensure reliable operation in harsh industrial environments.
• Consolidated Security Architecture - FortiGate running FortiOS consolidated security offers better protection and lower cost of ownership than multiple point products. Coupled with FortiGuard Industrial Security Service, it ensures that critical networks receive real-time protection.
• SD-WAN Capable — Supports reliable connectivity with lower costs via SD-WAN technologies.
• Ease of Management - Robust management systems that allow rapid provision and deployment, monitoring of device and threat status while providing actionable reports.

	Firewall Performance	IPsec VPN Throughput	GE RJ45 Interfaces
30D	900 Mbps	45 Mbps	4
35D	550 Mbps	45 Mbps	3
60F	6 Gbps	3.5 Gbps	4
FGR-60F-3G4G	5.95 Gbps	3.5 Gbps	4

Hardware:

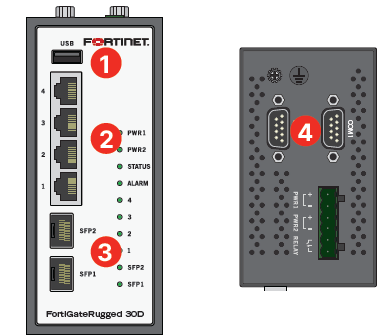

FGR-30D

1. 1x USB Port
2. 4x GE RJ45 Ports
3. 2x GE SFP Slots
4. 2x DB9 Serial Interface/Console

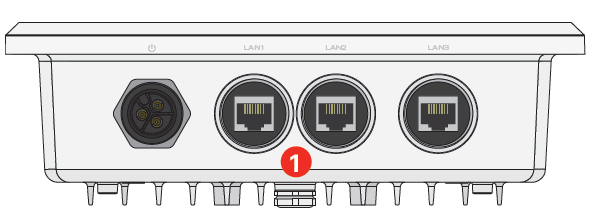

FGR-35D

1. 3x GE RJ45 Po

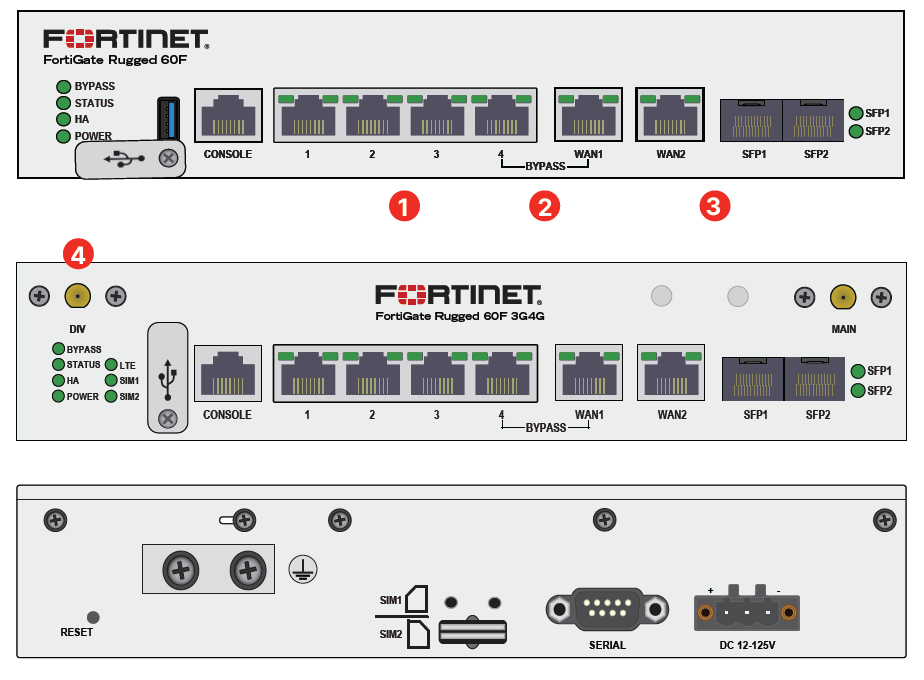

FGR-60F / FGR-60F-3G4G

1. 4x GE RJ45 Ports
2. 1x Bypass GE RJ45 Port Pair (WAN1 & Port4, default setting)^*
3. 2x GE RJ45/SFP Shared Media Pairs
4. Integrated 3G4G Modem

^*NOTE: WAN1/WAN2 and SFP1/SFP2 are shared interfaces

Fortinet Fabric Security:

Security Fabric

The industry’s highest-performing cybersecurity platform, powered by FortiOS, with a rich ecosystem designed to span the extended digital attack surface, delivering fully automated, self-healing network security.

• Broad: Coordinated detection and enforcement across the entire digital attack surface and lifecycle with converged networking and security across edges, clouds, endpoints and users
• Integrated: Integrated and unified security, operation, and performance across different technologies, location, deployment options, and the richest Ecosystem
• Automated: Context aware, self-healing network & security posture leveraging cloud-scale and advanced AI to automatically deliver near-real-time, user-to-application coordinated protection across the Fabric

FortiOS™ Operating System

FortiOS, Fortinet’s leading operating system enable the convergence of high performing networking and security across the Fortinet Security Fabric delivering consistent and context-aware security posture across network endpoint, and clouds. The organically built best of breed capabilities and unified approach allows organizations to run their businesses without compromising performance or protection, supports seamless scalability, and simplifies innovation consumption. The release of FortiOS 7 dramatically expands the Fortinet Security Fabric’s ability to deliver consistent security across hybrid deployment models consisting on appliances, software and As-a-Service with SASE, ZTNA and other emerging cybersecurity solutions.

Services

FortiGuard™ Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations and other network and security vendors, as well as law enforcement agencies.

FortiCare™ Services

Fortinet is dedicated to helping our customers succeed, and every year FortiCare services help thousands of organizations get the most from their Fortinet Security Fabric solution. We have more than 1,000 experts to help accelerate technology implementation, provide reliable assistance through advanced support, and offer proactive care to maximize security and performance of Fortinet deployments.

Specifications:

	FGR-30D	FGR-35D	FGR-60F	FGR-60F-3G4G
Interfaces and Modules
GE RJ45 Interfaces	4	3	4	4
Bypass GE RJ45 Port Pair*	–	–	1	1
GE SFP Slots	2	–	–	-
GE RJ45/SFP Shared Media Pairs	–	–	2	2
DB9 Serial Interface	2	–	1	1
USB (Client / Server)	1	–	1	1
RJ45 Console Port	–	–	1	1
Trusted Platform Module (TPM)	–	–	Yes	Yes
Cellular Modem	–	–	3G4G / LTE	3G4G / LTE
Included Transceivers	None	None	None	None
System Performance and Capacity
IPv4 Firewall Throughput (1518 UDP)	900 Mbps**	550 Mbps**	6/6 Gbps	5.95 Gbps
Firewall Latency (64 byte, UDP)	70 μs	90 μs	3.10 μs	3.10 μs
Firewall Throughput (Packets Per Second)	87 Kpps	52.5 Kpps	8.9 Mpps	8.9 Mpps
Concurrent Sessions (TCP)	750,000	750,000	600,000	600,000
New Sessions/Sec (TCP)	5,000	5,000	19,000	19,000
Firewall Policies	5,000	5,000	5,000	5,000
IPsec VPN Throughput (512 byte)	45 Mbps	45 Mbps	3.5 Gbps	3.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200	200	200	200
Client-to-Gateway IPsec VPN Tunnels	250	250	500	500
SSL-VPN Throughput	25 Mbps	25 Mbps	400 Mbps	400 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	80	80	100	100
SSL Inspection Throughput (IPS, avg. HTTPS)	50 Mbps	55 Mbps	460 Mbps	460 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	75	75	300	300
SSL Inspection Concurrent Session	45,000	45,000	70,000	70,000
Application Control Throughput (HTTP 64K)	210 Mbps	230 Mbps	1.3 Gbps	1.3 Gbps
Virtual Domains (Default / Maximum)	5 / 5	5 / 5	10 / 10	10 / 10
Maximum Number of FortiAPs (Total / Tunnel)	2 / 2	2 / 2	30 / 10	30 / 10
Maximum Number of FortiTokens	20	20	500	500
Maximum Number of FortiSwitches	8	8	16	16
High Availability Configurations	Active-Active, Active-Passive, Clustering	Active-Active, Active-Passive, Clustering	Active-Active, Active-Passive, Clustering	Active-Active, Active-Passive, Clustering
System Performance — Enterprise Traffic Mix
IPS Throughput	180 Mbps	210 Mbps	950 Mbps	950 Mbps
NGFW Throughput	45 Mbps	65 Mbps	550 Mbps	550 Mbps
Threat Protection Throughput	16 Mbps	16 Mbps	500 Mbps	500 Mbps
Dimensions and Power
Height x Width x Length (inches)	5.49 x 4.13 x 2.36	3.07 x 10.04 x 10.04	1.68 x 8.50 x 6.50	1.68 x 8.50 x 6.50
Height x Width x Length (mm)	139.5 x 105 x 60	78 x 255.09 x 255.09	42.7 x 216 x 165	42.7 x 216 x 165
Weight	1.46 lbs (0.668 kg)	3.986 lbs (1.808 kg)	3.85 lbs (1.75 kg)	3.85 lbs (1.75 kg))
Form Factor	Desktop/DIN/Wall Mount	Outdoor mountable	Desktop	Desktop/DIN/Wall Mount
IP Rating	IP20	IP67	IP20	IP20
Power Supply	Dual input, total 6 pin terminal block (12–48V DC) AC adapter not included.*	Terminal block (12–48V DC), DC cables are not included	Terminal block, supports negative (+12V to +125V DC) and positive ground (-12V to -125V DC) sources, cables are not included	Terminal block, supports negative (+12V to +125V DC) and positive ground (-12V to -125V DC) sources, cables are not included
Power Consumption (Average / Maximum)	15.55 W / 15.92W	10.2 W / 10.5 W	15 W / 21 W	17 W / 24W
Maximum Current	1.19A	0.83A	12V DC / 2A	12V DC / 2A
Heat Dissipation	54.29 BTU/h	35.81 BTU/h	72 BTU/h	82 BTU/h
Operating Environment and Certifications
Operating Temperature	-40–158°F (-40–70°C)	-40–140°F (-40–60°C)	-40–167°F (-40–75°C)	-40–167°F (-40–75°C)
Storage Temperature	-58–185°F (-50–85°C)	-58–185°F (-50–85°C)	-40–167°F (-40–75°C)	-40–167°F (-40–75°C)
Humidity	5–95% non-condensing	5–95% non-condensing	5–95% non-condensing	5–95% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, RCM VCCI Class B, CE, UL/cUL, CB	FCC Part 15 Class A, RCM VCCI Class B, CE, UL/cUL, CB	FCC Part 15 Class A, RCM VCCI Class B, CE, UL/cUL, CB	FCC Part 15 Class A, RCM VCCI Class B, CE, UL/cUL, CB
Certifications	61850-3 and IEEE 1613 Emission Compliant	61850-3 and IEEE 1613 Emission Compliant	IEC 61850-3 and IEEE 1613 Certified	IEC 61850-3 and IEEE 1613 Certified

* Default bypass pair configuration is WAN1 and Port4

** Measured using 1518 byte UDP packets

Documentation:

Download the Fortinet FortiGate Rugged Series Datasheet (PDF).

Pricing Notes:

• Hardware plus FortiCare Premium and FortiGuard Enterprise Protection
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, Data Loss Prevention, Application Control, URL, DNS & Video Filtering, Antispam, Attack Surface Security, and FortiConverter Service) plus term of contract
• Hardware plus FortiCare Premium and FortiGuard SMB Protection
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering , Antispam and FortiGate Cloud subscription service) plus term of contract
• Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract
• Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service)
• SMB Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam and FortiGate Cloud subscription service)
• Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service)
• Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
• FortiCare Essential Support
  FortiCare Essential Ticket Handling, Hardware Replacement, Firmware and General Upgrades, Application Control
• FortiCare Premium Support
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
• FortiCare Elite Support
  FortiCare Premium Support with FortiCare Elite Ticket Handling.
• Prices are for one year of Premium RMA support. Usual discounts can be applied.
• Annual contracts only. No multi-year SKUs are available for these services.
• Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
• Pricing and product availability subject to change without notice.
