Fortinet FortiCam CD55
Video Security IP Camera

Overview:

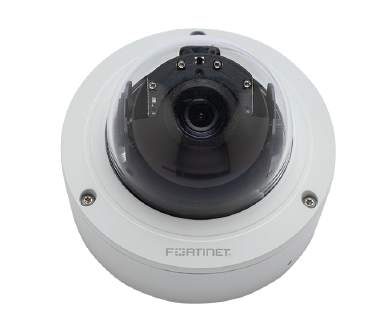

FortiCamera CD5x series offers crisp image quality and advanced features in a compact style. These premium dome cameras are designed to simplify deployment and management. Its Bluetooth connectivity allows easy network configuration and adjusting the camera view directly from your smartphone. Built-in Wi-Fi helps with those hard-toreach locations for broader security coverage within your premises.

These security cameras deliver high resolution 5 MP video streamed in efficient H.265 encoding, dimmable 20m+ IR illumination, powerful low light performance, and a built-in microphone. Robust IP67 weather and IK10 vandal rating combined with built-in heater for extended temperature range make these cameras perfectly suited for challenging conditions.

FortiCamera CD51 is a fixed lens model with convenient 95° view angle, while FortiCamera CD55 offers a motorized 4x zoom lens with autofocus to capture every detail in high quality over a wider distance range. A wide range of accessories are available to give you hassle free mounting for indoor and outdoor use.

Smart Security Cameras for Your Business

Get complete visual coverage inside and out with FortiCameras. With options for indoor and outdoor, vandal-proof, weatherproof, low-light night vision, fixed and motorized zoom lenses, and two-way audio, there’s a FortiCam for every environment. All FortiCams deliver crisp, highresolution HDTV-quality images to any FortiRecorder NVR, either continuously or triggered by a range of events, including motion and/or audio detection.

Easy to set up, license-free

With FortiCameras, installation is a breeze. They support PoE, eliminating the need for AC power. Just connect the camera to the FortiRecorder network via a PoE switch and you’re up and running. No software installation, no patches and, unlike using third-party cameras, no license fees.

Building blocks for scalable IP video solutions

FortiCameras are completely integrated with FortiRecorder and the powerful FortiCentral and mobile clients. All components complement each other to form a scalable video surveillance installation from small retail to large campus sites.

AI-enabled video management software (VMS)

FortiCentral manages FortiCameras to be your eyes into Fortinet video analytics solutions including facial recognition and object detection. Fortinet’s free and comprehensive VMS gives you centralized control and optimized visibility all in one single place.

Highlights

• Scheduled and manual recording
• Motion detection and continuous recordings
• Snapshot notifications and alerts
• SD card edge recording
• Camera live view and video playback
• Event monitor with timeline
• RADIUS, LDAP, SNMP, and remote data storage support for flexible network integration
• Centralized management, maintenance, and monitoring
• Web-based interface
• Powerful Windows client FortiCentral
• Mobile access on iOS and Android

Specifications:

	FORTICAMERA CD51		FORTICAMERA CD55
Description	Premium Day/Night IP Video Security Camera		Premium Day/Night IP Video Security Camera
Format *	Fixed Dome, Indoor/Outdoor, vandal		Fixed Dome, Indoor/Outdoor, vandal
Sensor Type	5 mega-pixel, 1/2.8” low light CMOS		5 mega-pixel, 1/2.8” low light CMOS
Iris	F2.0/fixed		F1.6 (W), F3.3 (T), DC-Iris
Optical Zoom	—		4x
Digital Zoom	—		—
Focal Length	2.8 mm		2.7–13 mm (motorized, autofocus)
View Angle	H:95°, V:72°, D:118°		H:29°~99°, V:22°~71°, D:35°~132°
Minimum Illumination	0.05 Lux (Color) @ F2, 0.01 Lux (B/W) @ F2		0.03 Lux (Color) @ F1.6, 0.01 Lux (B/W) @ F1.6
Wide Dynamic Range	HDR (>80dB)		HDR (>80dB)
Streaming Protocols	RTSP		RTSP
Video Compression	H.264/H.265 (HEVC)		H.264/H.265 (HEVC)
Image Resolution	5MP at 30 frames per second 4MP, 3MP, 1080p, 720p 1024x768, 640x480, 320x240		5MP at 30 frames per second 4MP, 3MP, 1080p, 720p 1024x768, 640x480, 320x240
Audio	one-way, built-in mic		one-way, built-in mic
Interface	RJ45 Ethernet 10/100 Mbps		RJ45 Ethernet 10/100 Mbps
Mounting	Wall, ceiling, tile, 3-axis, 3/4” conduit, junction box (see “Optional Accessories”)		Wall, ceiling, tile, 3-axis, 3/4” conduit, junction box (see “Optional Accessories”)
Operation
Pan / Tilt	—		—
Presets / Accuracy / Speed	—		—
IRLED / IRC	20m+ (dimmable) / yes		20m+ (dimmable) / yes
EIS / DNR	— / 3DNR		— / 3DNR
Dimensions
Height x Width x Length (inches)	3.8 x 4.7 x 4.7		3.8 x 4.7 x 4.7
Height x Width x Length (mm)	97 x 120 x 120		97 x 120 x 120
Weight	1.09 lb (498g)		1.16 lb (527g)
Environment
Power Source	PoE (802.3af) class 3		PoE (802.3af) class 3
Power Consumption (Average)	< 12.95W		< 12.95W
Operating Temperature	40–122°F (-40–50°C)		40–122°F (-40–50°C)
Humidity	5–90% non-condensing		5–90% non-condensing
Compliance
Regulatory and Standards	FCC Class B / ICES / CE / CB / IP67 / IK10		FCC Class B / ICES / CE / CB / IP67 / IK10
Wifi/Bluetooth
Number of Antennas	1 internal		1 internal
Peak Antenna Gain	3.4 dBi for 2.4 GHz, 4.1 dBi for 5 GHz		3.4 dBi for 2.4 GHz, 4.1 dBi for 5 GHz
Frequency of Radio 1	2.4 GHz b/g/n/ac or 5 GHz a/n/ac		2.4 GHz b/g/n/ac or 5 GHz a/n/ac

Documentation:

Download the Fortinet FortiCamera CD51/ CD55 Datasheet (PDF).
