Fortinet FortiAP 433F
4x4 Wi-Fi 6 (802.11ax), Indoor wireless AP: Tri-radio, External antenna, 1 x 2.5 GE & 1 x GE RJ45 ports

Overview:

This high throughput enterprise class 802.11ax indoor AP provides three radios and 8 spatial streams. This top-of-the line access point supports OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port for PoE diversity. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.

---

Key Features:

• 802.11ax
• Tri-Radio 2.4 GHz + 5 GHz + scanning
• 5 Internal/External Antennas
• 4x4 MU-MIMO
• Up to 1,147 Mbps + 2,402 Mbps

---

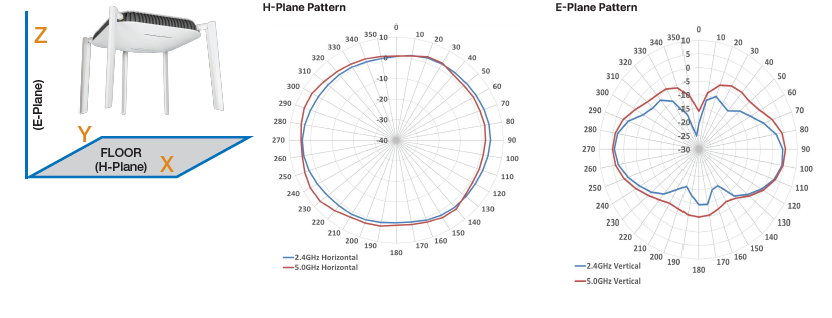

Antenna Radiation Patterns

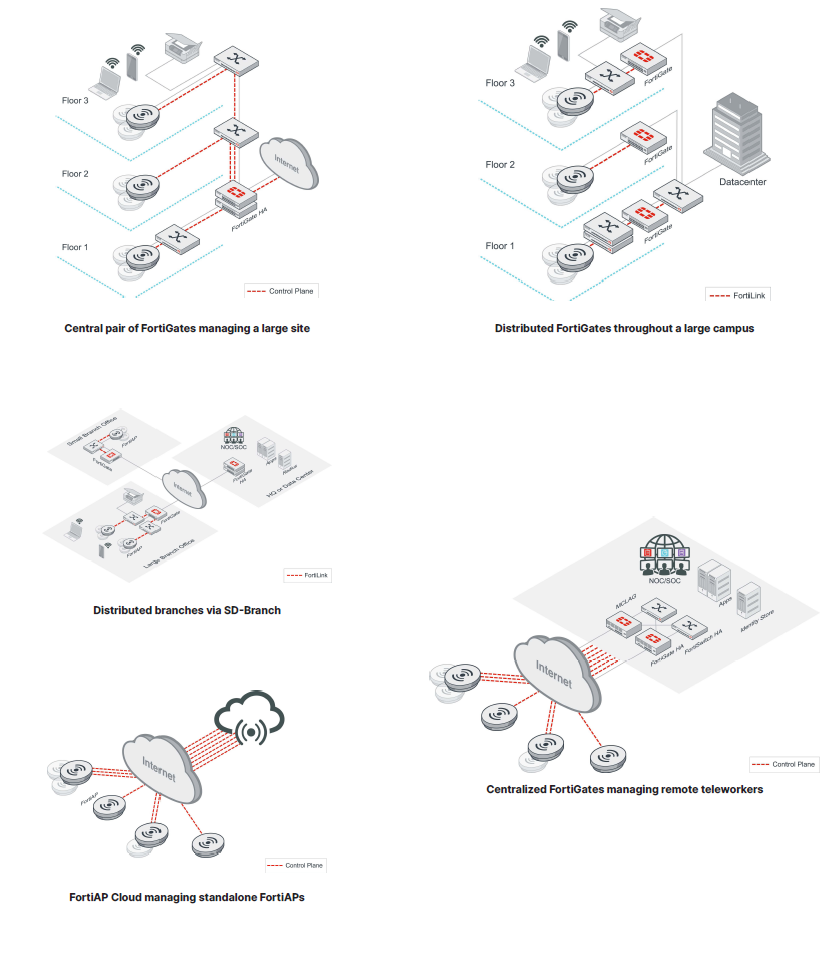

Deployments

FortiAPs allow for a versatile collection of installation topologies with options to fit any enterprise.

Specifications:

	FortiAP-431F	FortiAP-433F
Hardware
Hardware Type	Indoor AP	Indoor AP
Number of Radios	3 + 1 BLE	3 + 1 BLE
Number of Antennas	5 Internal + 1 BLE Internal	5 External (RP-SMA) + 1 BLE Internal
Antenna Type and Peak Gain	PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz	Omni directional rubber duck antenna: 4 dBi for 2.4 GHz, 6 dBi for 5 GHz
Frequency Bands (GHz)	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities	Frequency Band: 2.4 GHz Channel width: 4x4 20/40 MHz Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 MIMO chains: 4x4 service
Radio 2 Capabilities	Frequency Band: 5.0 GHz Channel width: 4x4 20/40/80MHz and 2x2 160MHz contiguous Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 Mimo chains: 4x4 service
Radio 3 Capabilities	Frequency band: 2.4/5.0 GHz MIMO chains: 1x1 frequency scanning
Maximum Data Rate	Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: scan only	Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: scan only
Bluetooth Low Energy Radio	Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power
Interfaces	1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE)	802.3at PoE default 1 port powered by 802.3at or 2 ports powered by 802.3af - Full System functionality + USB support 1 port is connected to 802.3af - No USB support, Operate in 2x2 mode with reduced power R1/R2 17dBm(Tx power)
Simultaneous SSIDs	Up to 16 (14 if background scanning enabled)
EAP Type(s)	EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication	WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist
Maximum Tx Power (Conducted)	Radio 1: 2.4 GHz 24 dBm / 251 mW (4 chains combined)* Radio 2: 5 GHz 23 dBm / 200 mW (4 chains combined)* Radio 3: NA
Kensington Lock	Yes	Yes
IEEE Standards	802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz
SSID Types Supported	Local-Bridge, Tunnel, and Mesh	Local-Bridge, Tunnel, and Mesh
Per Radio Client Capacity	512 clients per radio (Radio1 and Radio2)	512 clients per radio (Radio1 and Radio2)
Cellular Co-existence	Yes	Yes
LED Off Mode	Yes	Yes
Reset Button	Yes	Yes
Advanced 802.11 Features
OFDMA	Yes (UL and DL)	Yes (UL and DL)
2.4 GHz OFDMA	Yes	Yes
Spatial Reuse (BSS Coloring)	Yes	Yes
UL MU-MIMO 802.11ax mode	Yes	Yes
DL-MU-MIMO	Yes	Yes
HE-MU-MIMO	Yes	Yes
Enhanced Target Wake Time (TWT)	Yes	Yes
ZeroWait DFS/Agile DFS	No	No
Wireless Monitoring Capabilities
Rogue Scan radio modes	Background, Dedicated	Background, Dedicated
WIPS / WIDS radio modes	Background, Dedicated (recommended)
Packet Sniffer Mode	Yes	Yes
Spectrum Analyzer	Yes	Yes
Dimensions
Length x Width x Height	8.27 x 8.27 x 2.22 inches (210 x 210 x 56.5 mm)
Weight	2.16 lbs (0.98 kg)	2.19 lbs (0.995 kg)
Mounting Options	Ceiling, T-Rail, and Wall	Ceiling, T-Rail, and Wall
Included Accessories	Mount kit for Ceiling, T-Rail and Wall	Mount kit for Ceiling, T-Rail and Wall. 5 RP-SMA Male dual-band dipole antenna
Environment
Power Supply	SP-FAP400-PA-XX or GPI-130	SP-FAP400-PA-XX or GPI-130
Power Consumption (Maximum)	24.5 W
Humidity	5 - 90% non condensing
Operating / Storage Temperature	32–113°F (0–45°C) / -31–-94°F (-35–70°C)
Directives	Low Voltage Directive • RoHS
UL2043 Plenum Material	No	No
Mean Time Between Failures	> 10 Years	> 10 Years
Surge Protection Built In	Yes	Yes
Hit-less PoE Failover	Yes	Yes
Certifications
WiFi Alliance Certified	Yes	Yes
DFS	FCC, IC, CE, Japan, Korea, Taiwan
Warranty
Limited Lifetime Warranty	Yes	Yes

Documentation:

Download the Fortinet FortiAP Series Datasheet (PDF).
