Fortinet FortiGate 200F
Enterprise-Grade Protection for Smaller Networks

Overview:

The FortiGate 200F Base Appliance offers robust security and network performance with NP6XLite and CP9 hardware acceleration. It includes 18 x GE RJ45 ports, 8 x GE SFP slots, and 4 x 10GE SFP+ slots, providing versatile and high-speed connectivity options for your network infrastructure. Ideal for medium to large enterprises, this appliance ensures optimal performance and security.

• High-performance firewall with NP6XLite and CP9 hardware acceleration
• 18 x GE RJ45 ports, including 1 x MGMT and 1 x HA port
• 16 switch ports for versatile connectivity
• 8 x GE SFP slots for additional network flexibility
• 4 x 10GE SFP+ slots for high-speed connectivity

The FortiGate 200F series provides an application-centric, scalable and secure SD-WAN solution with next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industryleading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Security

• Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
• Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
• Prevents and detects against known attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
• Proactively blocks unknown sophisticated attacks in realtime with the Fortinet Security Fabric integrated AI-powered FortiSandbox

Performance

• Engineered for Innovation using Fortinet’s purpose-built security processors (SPU) to deliver the industry’s best threat protection performance and ultra-low latency
• Provides industry-leading performance and protection for SSL encrypted traffic including the first firewall vendor to provide TLS 1.3 deep inspection

Certification

• Independently tested and validated best security effectiveness and performance
• Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives

Networking

• Dynamic Path Selection over any WAN transport to provide better application experience based on self-healing SD-WAN capabilities
• Advanced routing, Scalable VPN, multi-cast and IPV4/IPV6 forwarding powered by purpose-built network processors

Management

• SD-WAN Orchestration provides intuitive and simplified workflow for centralized management and provisioning of business policies in a few easy clicks
• Expedited deployment with Zero touch provisioning well-suited for large and distributed infrastructure
• Automated VPN tunnels for flexible hub-to-spoke and full-mesh deployment at scale to provide bandwidth aggregation and encrypted WAN paths
• Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture

Security Fabric

• Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation
• Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products

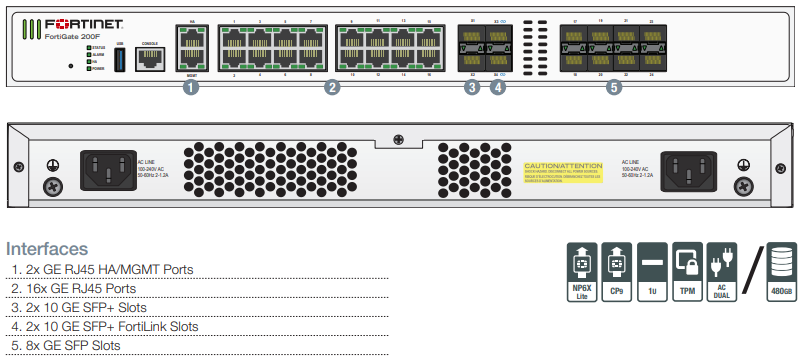

Hardware:

Extends Security to Access Layer with FortiLink Ports

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.

Content Processor

Fortinet’s new, breakthrough SPU CP9 content processor works outside of the direct flow of traffic and accelerates the inspection of computationally intensive security features:

• Enhanced IPS performance with unique capability of full signature matching at ASIC
• SSL Inspection capabilities based on the latest industry mandated cipher suites
• Encryption and decryption offloading

Network Processor

The SPU NP6XLite network processor enhances firewall and VPN functions delivering:

• Optimized firewall processing for all types of IP payloads and Ethernet frames
• Hardware-accelerated VPN encryption
• Anomaly-based intrusion prevention, checksum offload, and packet defragmentation
• Traffic shaping and priority queuing

Trusted Platform Module (TPM)

The FortiGate 200F Series features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.

Specifications:

Documentation:

Download the Fortinet FortiGate 200F Series Data Sheet (PDF).
