Fortinet FortiSwitch 108F-POE
Secure Access Switches

FortiSwitch

Fortinet Products

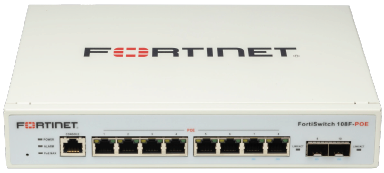

FortiSwitch 108F-POE Switch

FortiSwitch-108F-POE Fanless L2+ management switch with 8xGE + 2xSFP + 1xRJ45 console and automatic limited 65W POE

#FS-108F-POE
List Price: ~~$523.00~~
Our Price: $385.50

Click here to jump to more pricing!

Overview:

Security, Performance, and Manageability

The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes.

Security Fabric Integration through FortiLink

FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.

Highlights

Designed for installations from desktops to wiring closets
Ideal for SD-Branch deployments
Optimal for converged network environments; enabling voice, data, and wireless traffic to be delivered across a single network
Centralized security and access management from FortiGate interface
Supports non-FortiLink deployments through onboard GUI, API, or command line configuration
Up to 48 ports in a compact 1 RU form factor
Stackable up to 300 switches per FortiGate depending on model
Supports Wire-speed switching and Store and Forward forwarding mode

Deployment

FortiLink

FortiGate managed
Security Fabric enabled
Most common deployment model

FortiSwitch Fortilink Mode Deployment Example

Standalone

Industry standard deployment model
Common in non-FortiGate environments

FortiSwitch Standalone Mode Deployment Example

Cloud Management for both deployment options available through FortiCloud

Features:

FORTISWITCH

Layer 2

Jumbo Frames

Auto-negotiation for Port Speed and Duplex

MDI/MDIX Auto-crossover

IEEE 802.1D MAC Bridging/STP

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

STP Root Guard

STP BPDU Guard

Edge Port / Port Fast

IEEE 802.1Q VLAN Tagging

Private VLAN

IEEE 802.3ad Link Aggregation with LACP

Unicast/Multicast traffic balance over trunking port (dst-ip, dst-mac, src-dst-ip, src-dst-mac, src-ip, src-mac)

IEEE 802.1AX Link Aggregation

Spanning Tree Instances (MSTP/CST)

IEEE 802.3x Flow Control and Back-pressure

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX

IEEE 802.3z 1000Base-SX/LX

IEEE 802.3ab 1000Base-T

IEEE 802.3ae 10 Gigabit Ethernet

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3bz Multi Gigabit Ethernet

IEEE 802.3 CSMA/CD Access Method and Physical Layer Specifications

Storm Control

MAC, IP, Ethertype-based VLANs

Virtual-Wire

Split Port (QSFP+ breakout to 4x10G SFP+ or 4x1G SFP)

Time-Domain Reflectcometry (TDR) Support

LAG min/max bundle

Rapid PVST interoperation

Ingress Pause Metering

Loop Guard

Per-port storm control

Priority-based Flow Control (802.1Qbb)

IEEE 802.1ad QinQ

VLAN Mapping

IEEE 802.3ba, 802.3bj, and 802.3bm 40 and 100 Gigabit Ethernet

Auto topology

Services

IGMP proxy / querier

MLD Snooping

MLD proxy / querier

IGMP Snooping

Layer 3

Static Routing (Hardware-based)

Dynamic Routing Protocols: OSPFv2, RIPv2, VRRP, BGP, ISIS *

Multicast Protocols: PIM-SSM *

ECMP

Bidirectional Forwarding Detection (BFD)

DHCP Relay

IP conflict detection and notification

DHCP server

Unicast Reverse Path Forwarding - uRPF

IPv6 route filtering

Filtering routemaps based on routing protocol

Security and Visibility

Port Mirroring

Admin Authentication Via RFC 2865 RADIUS

IEEE 802.1X Authentication Port-based

IEEE 802.1X Authentication MAC-based

IEEE 802.1X Guest and Fallback VLAN

IEEE 802.1X MAC Access Bypass (MAB)

IEEE 802.1X Dynamic VLAN Assignment

Radius CoA (Change of Authority)

Radius Accounting

MAC-IP Binding

sFlow

ACL

IEEE 802.1ab Link Layer Discovery Protocol (LLDP)

IEEE 802.1ab LLDP-MED

IEEE 802.1ae MAC Security (MAC Sec)

DHCP-Snooping

Dynamic ARP Inspection

Sticky MAC and MAC Limit

IEEE 802.1X open auth

IEEE 802.1X EAP pass-through

Flow Export (NetFlow and IPFIX)

ACL Multistage

ACL Multiple Ingress

ACL Schedule

IP source guard

IPv6 RA Guard

LLDP-MED ELIN support

Per-port and per-VLAN MAC learning limit

Assign VLANs via Radius attributes (RFC 4675)

High Availability

Multi-Chassis Link Aggregation (MCLAG)

Quality of Service

IEEE 802.1p Based Priority Queuing

IP TOS/DSCP Based Priority Queuing

IEEE 1588 PTP (Transparent Clock)

Explicit Congestion Notification

Egress priority tagging

Percentage Rate Control

Management

IPv4 and IPv6 Management

Telnet / SSH

HTTP / HTTPS

SNMP v1/v2c/v3

SNTP

Standard CLI and Web GUI Interface

Software download/upload: TFTP/FTP/GUI

Managed from FortiGate

Support for HTTP REST APIs for Configuration and Monitoring

Dual Firmware Support

RMON Group 1

Packet Capture

SPAN, RSPAN, and ERSPAN

Link Monitor

POE Control Modes

System Temperature and Alert

Syslog UDP/TCP

Provide warning if L2 table is getting full

Display Average Bandwidth and Allow Sorting on Physical Port / Interface Traffic

System alias command

SNMP v3 traps

* Requires ‘Advanced Features’ License.

Specifications:

	FORTISWITCH 108F	FORTISWITCH 108F-POE	FORTISWITCH 108F-FPOE
Hardware Specifications
Total Network Interfaces	7x GE RJ45, 1x GE/POE-PD RJ45, and 2x GE SFP	8x GE RJ45 and 2x GE SFP	8x GE RJ45 and 2x GE SFP
Dedicated Management 10/100 Port	0	0	0
RJ-45 Serial Console Port	1	1	1
Form Factor	Desktop	Deskop / 19” rack bracket	Deskop / 19” rack bracket
Power over Ethernet (PoE) Ports	0	8 (802.3af/at)	8 (802.3af/at)
PoE Power Budget	0	65 W	130 W
Mean Time Between Failures	> 10 years	> 10 years	> 10 years
System Specifications
Switching Capacity (Duplex)	20 Gbps	20 Gbps	20 Gbps
Packets Per Second (Duplex)	30 Mpps	30 Mpps	30 Mpps
MAC Address Storage	8 K	8 K	8 K
Network Latency	4 μs	4 μs	4 μs
VLANs Supported	4 K	4 K	4 K
Link Aggregation Group Size	8	8	8
Total Link Aggregation Groups	8	8	8
Packet Buffers	512 KB	512 KB	512 KB
DRAM	256 MB DDR3	256 MB DDR3	256 MB DDR3
FLASH	32 MB	32 MB	32 MB
ACL	768	768	768
Spanning Tree Instances	16	16	16
Dimensions
Height x Depth x Width (inches)	1.18 x 4.72 x 7.09	1.73 x 8.23 x 9.85	1.73 x 8.23 x 9.85
Height x Depth x Width (mm)	30 x 120 x 180	44 x 209 x 250	44 x 209 x 250
Weight	1.36 lbs (0.62 kg)	3.75 lbs (1.70 kg)	4.05 lbs (1.84 kg)
Environment
Power Required	100–240V AC, 50/60 Hz / PoE-PSE(af)	100–240V AC, 50/60 Hz	100–240V AC, 50/60 Hz
Power Supply	12V/1A DC power adapter included, PoE-PD Built in	AC built in	AC built in
Redundant Power	No	No	No
Power Consumption	6.2 W	74.4 W	139.2 W
Heat Dissipation	21.142 BTU/h	34.12 BTU/h	34.56 BTU/h
Operating Temperature	32–113°F (0–45°C)	32–113°F (0–45°C)	32–113°F (0–45°C)
Storage Temperature	-49–158°F (-40–70°C)	-40–158°F (-40–70°C)	-40–158°F (-40–70°C)
Humidity	5–95% non-condensing	5–95% non-condensing	5–95% non-condensing
Air-Flow Direction	side-to-back	side-to-back	side-to-back
Certification and Compliance
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Warranty
Fortinet Warranty	Limited lifetime* warranty on all models

Documentation:

Download the Fortinet FortiSwitch Secure Access Series Datasheet (PDF).

Pricing Notes:

FortiCare Premium Support
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades
FortiCare Elite Support
FortiCare Premium Support with FortiCare Elite Ticket Handling.
Prices are for one year of Premium RMA support. Usual discounts can be applied.
Annual contracts only. No multi-year SKUs are available for these services.
Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
Pricing and product availability subject to change without notice.

Fortinet Products

FortiSwitch 108F-POE Switch

FortiSwitch-108F-POE Fanless L2+ management switch with 8xGE + 2xSFP + 1xRJ45 console and automatic limited 65W POE

#FS-108F-POE
List Price: ~~$523.00~~
Our Price: $385.50

FortiSwitch 108F-POE FortiCare Premium Support

FortiSwitch-108F-POE 1 Year FortiCare Premium Support

#FC-10-F108P-247-02-12
List Price: ~~$52.30~~
Our Price: $45.28

FortiSwitch-108F-POE 3 Year FortiCare Premium Support

#FC-10-F108P-247-02-36
List Price: ~~$156.90~~
Our Price: $135.84

FortiSwitch-108F-POE 5 Year FortiCare Premium Support

#FC-10-F108P-247-02-60
List Price: ~~$261.50~~
Our Price: $226.41

FortiSwitch 108E-POE FortiCare Elite Support

FortiSwitch-108F-POE 1 Year FortiCare Elite Support

#FC-10-F108P-284-02-12
List Price: ~~$78.45~~
Our Price: $67.92

FortiSwitch-108F-POE 3 Year FortiCare Elite Support

#FC-10-F108P-284-02-36
List Price: ~~$235.35~~
Our Price: $203.77

FortiSwitch-108F-POE 5 Year FortiCare Elite Support

#FC-10-F108P-284-02-60
List Price: ~~$392.25~~
Our Price: $339.61

FortiSwitch-108F-POE Upgrade FortiCare Premium to Elite

FortiSwitch-108F-POE 1 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium)

#FC-10-F108P-204-02-12
List Price: ~~$26.15~~
Our Price: $22.64

FortiSwitch-108F-POE 3 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium)

#FC-10-F108P-204-02-36
List Price: ~~$78.45~~
Our Price: $67.92

FortiSwitch-108F-POE 5 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium)

#FC-10-F108P-204-02-60
List Price: ~~$130.75~~
Our Price: $113.20
