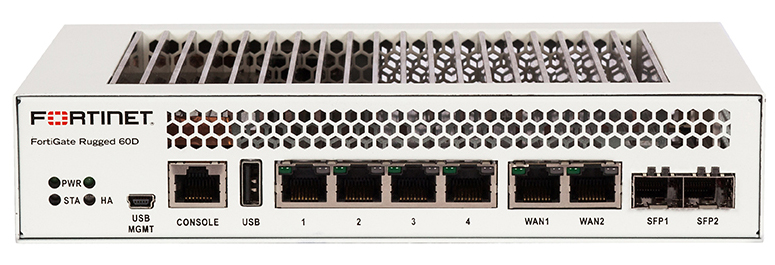

Fortinet FortiGate Rugged 60D
Integrated Threat Management for Front Line Locations

Overview:

While traditional security solutions are designed and intended for the world of offices and corporations, the FortiGate Rugged Series offers industrially-hardened, all-in-one security appliance that delivers specialized threat protection for securing critical industrial and control networks against malicious attacks.

Ruggedized Protection for Harsh Environments

The ruggedized FortiGate meets all required performance and reliability standards for operating in demanding industrial settings. It was designed from the outset to operate reliably in harsh electrical and environmental conditions, including those with high levels of electrical and radio frequency interference and at wide ambient temperature ranges.

Industrial Network Security

Fortinet’s FortiOS operating system running on the ruggedized platform provides specialized protections for industrial networks such as antivirus and Intrusion Protection (IPS).

Features & Benefits

• Ruggedized design — fanless and use of robust components ensure reliable operation in harsh industrial environments.
• Consolidated security architecture — FortiGate consolidated security offers better protection and lower cost of ownership than multiple point products.
• Ease of management — robust management systems that allow rapid provision and deployment, monitoring of device and threat status while providing actionable reports.

	Firewall Performance	IPS Performance	Interfaces
30D	900 Mbps	230 Mbps	Multiple GE RJ45
35D	550 Mbps	230 Mbps	Multiple GE RJ45 and GE RJ45 PoE
60D	1.5 Gbps	200 Mbps	Multiple GE SFP and GE RJ45 and a DB9 Serial
90D	2 Gbps	1.1 Gbps	Multiple GE SFP and GE RJ45, GE RJ45 bypass port pair and DB9 Serial

Hardware:

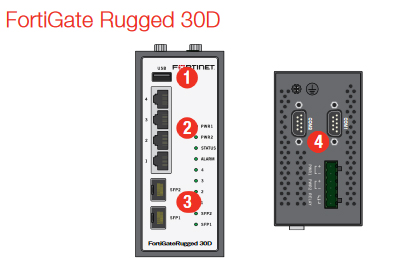

1. 1x USB Port
2. 4x GE RJ45 Ports
3. 2x GE SFP Slots
4. 2x DB9 Serial Interface/Console

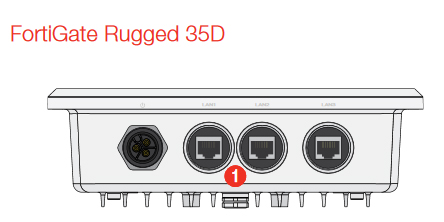

1. 3x GE RJ45 Po

1. USB Management Port for FortiExplorer
2. Console Port (RJ45)
3. 4x GE RJ45 Ports
4. 2x Shared Media (GE RJ45 Ports / GE SFP Slots) Pairs
5. 1x DB9 Serial Interface

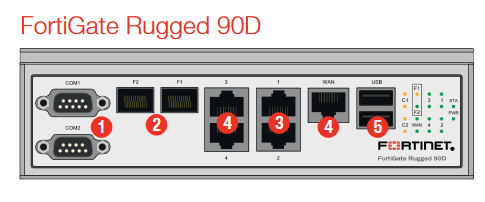

1. 2x DB9 Serial Interface/Console
2. 2x GE SFP Slots
3. 1x GE RJ45 Bypass Pair
4. 3x GE RJ45 ports
5. 2x USB interfaces

Wireless and 3G/4G WAN Extensions

The FortiGate supports external 3G/4G modems that allow additional or redundant WAN connectivity for maximum reliability. The FortiGate can also operate as a wireless access point controller to further extend wireless capabilities.

Compact, Ruggedized and Reliable Form Factor

Designed for confined spaces and harsh environments, the ruggedized FortiGate can be mounted within an enclosure, on a wall or on a DIN rail. It is small and lightweight yet highly reliable with superior Mean Time Between Failure (MTBF), minimizing the chance of a network disruption. The hardware components used meet high standards in both EMI and vibration tolerance with a wide thermal operating range supported

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

• A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
• Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
• Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
• Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
• Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
• Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

• Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
• Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
• Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

• Enhanced Support — For customers who need support during local business hours only.
• Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
• Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
• Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:

	FGR-30D	FGR-35D	FGR-60D	FGR-90D
Interfaces and Modules
GE RJ45 Interfaces	4	3	4	3
GE RJ45 Bypass Pair	–	–	–	1
GE SFP Slots	2	–	–	2
Shared Media Pairs (GE RJ45 / GE SFP)	–	–	2	–
DB9 Serial Interface	2	–	1	2
USB (Client / Server)	1	–	1/1	1
RJ45 Console Port	–	–	1	–
Included Transceivers	None	None	None	None
System Performance and Capacity
IPv4 Firewall Throughput (1518 UDP)	900 Mbps	550 Mbps	1.5 Gbps	2 Gbps
Firewall Latency (64 byte, UDP)	70 μs	90 μs	4 μs	51 µs
Firewall Throughput (Packets Per Second)	87 Kpps	52.5 Kpps	2.2 Mbps	84 Kbps
Concurrent Sessions (TCP)	750,000	750,000	500,000	2.5 Million
New Sessions/Sec (TCP)	5,000	5,000	4,000	20,000
Firewall Policies	5,000	5,000	5,000	5,000
IPsec VPN Throughput (512 byte)	45 Mbps	45 Mbps	1 Gbps	84 Mbps
Gateway-to-Gateway IPsec VPN Tunnels	200	200	200	200
Client-to-Gateway IPsec VPN Tunnels	250	250	500	1,000
SSL-VPN Throughput	25 Mbps	25 Mbps	30 Mbps	115 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	80	80	100	200
IPS Throughput (HTTP)	230 Mbps	230 Mbps	200 Mbps	1.1 Gbps
Virtual Domains (Default / Maximum)	5 / 5	5 / 5	10 / 10	10 / 10
Maximum Number of FortiAPs (Total / Tunnel)	2 / 2	2 / 2	10 / 5	32 / 16
Maximum Number of FortiTokens	20	20	100	100
Maximum Number of Registered FortiClients	200	200	200	200
High Availability Configurations	Active-Active, Active-Passive, Clustering	Active-Active, Active-Passive, Clustering	Active-Active, Active-Passive, Clustering	Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	5.49 x 4.13 x 2.36	3.07 x 10.04 x 10.04	1.73 x 8.50 x 6.10	2.11 x 7.32 x 6.30
Height x Width x Length (mm)	139.5 x 105 x 60	78 x 255.09 x 255.09	44 x 216 x 155	53.5 x 186 x 160
Weight	1.46 lbs (0.668 kg)	3.986 lbs (1.808 kg)	3.5 lbs (1.6 kg)	2.4 lbs (1.08 kg)
Form Factor	Desktop	Outdoor mountable, IP67	Desktop	Desktop, IP40
Power Supply	Dual input, total 6 pin terminal block (12–48V DC) AC adapter not included.*	Terminal block (12–48V DC)	-48V DC power supply and external 12V DC power adapter connection. AC adapter not included.*	Dual input, total 6 pin terminal block (12–48V DC) AC adapter included.
Power Consumption (Average / Maximum)	15.55 W / 15.92W	10.2 W / 10.5 W	11.6 W / 14 W	40 W / 49 W
Maximum Current	1.19A	0.83A	-48V DC / 0.5A	12–48V DC/ 4.08–1.02A
Heat Dissipation	54.29 BTU/h	35.81 BTU/h	40 BTU/h	167 BTU/h
Operating Environment and Certifications
Operating Temperature	-40–158°F (-40–70°C)	-40–140°F (-40–60°C)	-4–140°F (-20–60°C)	-40–158°F (-40–70°C) **
Storage Temperature	-58–185°F (-50–85°C)	-58–185°F (-50–85°C)	-40–185°F (-40–85°C)	-40–185°F (-40–85°C)
Humidity	5–95% non-condensing	5–95% non-condensing	20–90% non-condensing	0–95% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, C-Tick, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	IEC 61850-3 (EMC) and IEEE 1613 Emission Compliant ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN	IEC 61850-3 (EMC) and IEEE 1613 Emission Compliant ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN	IEC 61850-3 (EMC) and IEEE 1613 Emission Compliant ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN	IEC 61850-3 (EMC) and IEEE 1613 Emission Compliant ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

* Power supplies do not operate in redunant mode. Third-party AC adapter is required and may affect systems compliance with Industrial standards.

** Excludes supplied power adapter which operates at smaller temperature range.

Note: All performance values are “up to” and vary depending on system configuration. IPS performance is measured using 1 Mbyte HTTP files. IPsec VPN performance is based on 512 byte UDP packets using AES256+SHA1.

For complete, up-to-date and detailed feature set, please refer to the Administration Handbook and FortiOS Datasheet.
