Fortinet FortiGate 60E-DSL/J
Secure SD WAN Next Generation Firewall

Overview:

The FortiGate/ FortiWiFi 60E-DSL/J series provides an application-centric, scalable, and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Security

• Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
• Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
• Prevents and detects against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services

Performance

• Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
• Provides industry-leading performance and protection for SSL encrypted traffic

Certification

• Independently tested and validated best security effectiveness and performance
• Received unparalleled third-party certifications from NSS Labs

Networking

• Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
• Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments

Management

• Includes a Management Console that is effective, simple to use, and provides comprehensive network automation & visibility.
• Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
• Predefined compliance checklist analyzes the deployment and highlights the best practices to improve overall security posture

Security Fabric

• Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation

Firewall	IPS	NGFW	Threat Protection	Interfaces
3 Gbps	400 Mbps	250 Mbps	200 Mbps	Multiple GE RJ45 | WiFi variants

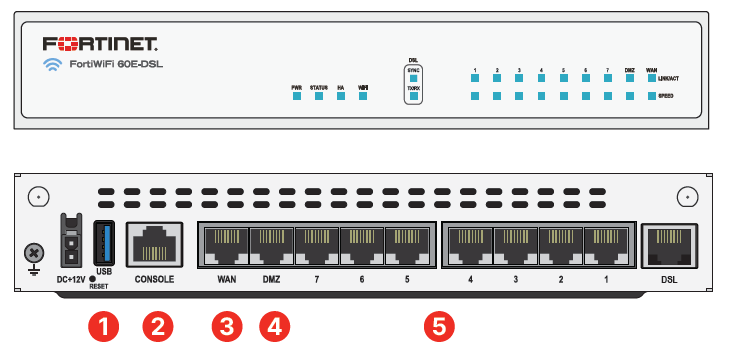

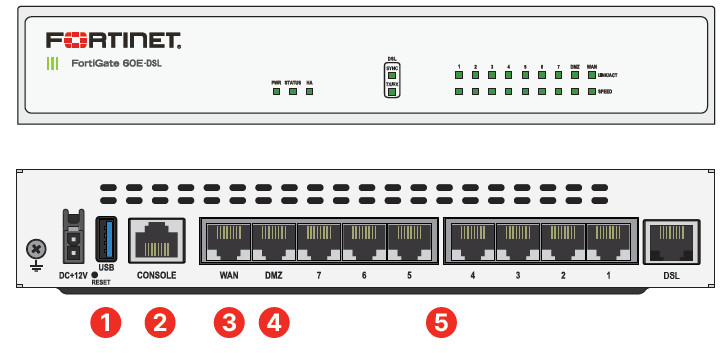

Hardware:

Powered by by SPU SoC3

• Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
• Simplifies appliance design and enables breakthrough performance for smaller networks
• Supports firewall acceleration across all packet sizes for maximum throughput
• Delivers accelerated UTM content processing for superior performance and protection
• Accelerates VPN performance for high speed and secure remote access

Comprehensive WAN Connectivities

The FortiGate/ FortiWiFi 60E-DSL/J includes a built-in DSL modem along with support for 3G/4G connectivity via external third-party USB modems or FortiExtender. These capabilities provide redundant links for maximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with a superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Superior Wireless Coverage

A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 60E-DSL/J and provides speedy 802.11ac wireless access. The dual-band chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.

Specifications:

	FORTIGATE 60E-DSL/J	FORTIWIFI 60E-DSL/J
Hardware Specifications
GE RJ45 WAN / DMZ Ports	1/1
GE RJ45 Internal Ports	7
Wireless Interface	-	Single Radio (2.4GHz/5GHz), 802.11 a/b/g/n/ac
USB Ports	1
Console (RJ45)	1
Internal Storage	-
System Performance — Enterprise Traffic Mix
IPS Throughput	400 Mbps
NGFW Throughput	250 Mbps
Threat Protection Throughput	200 Mbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	3/3/3 Gbps
Firewall Latency (64 byte UDP packets)	3 μs
Firewall Throughput (Packets Per Second)	4.5 Mpps
Concurrent Sessions (TCP)	1.3 Million
New Sessions/Second (TCP)	30,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	2 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL-VPN Throughput	150 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	135 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	135
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	75,000
Application Control Throughput (HTTP 64K)	650 Mbps
CAPWAP Throughput (HTTP 64K)	890 Mbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	16
Maximum Number of FortiAPs (Total / Tunnel Mode)	30 / 10
Maximum Number of FortiTokens	500
High Availability Configurations	Active - Active, Active - Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.7 x 8.5 x 7.1
Height x Width x Length (mm)	42.5 x 215 x 180
Weight	2.4 lbs (1.1 kg)	2.8 lbs (1.3 kg)
Form Factor	Desktop
Operating Environment and Certifications
Input Rating	12Vdc, 5A
Power Required	Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Current (Maximum)	1.5A	1.6A
Power Consumption (Average / Maximum)	16 W / 18 W	16 W / 19.2 W
Heat Dissipation	61.4 BTU/h	65.5 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	-40 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Fortinet Fabric Security:

Documentation:

Download the Fortinet FortiGate 60E-DSLJ Series Data Sheet (PDF).
