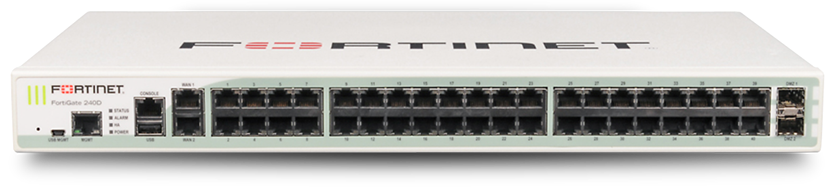

Fortinet FortiGate 240D-POE
Secure Protection for the Campus Perimeter and Branch Office

Overview:

The FortiGate 200D series delivers high-speed security and performance for campus perimeter and branch office wired or wireless networks. Purpose-built processors provide up to 4 Gbps firewall throughput, enabling protection of your applications and network without affecting availability or performance. High-density GE interfaces facilitate network growth and expansion.

The FortiGate 200D series provides comprehensive threat protection with Fortinet’s unmatched range of enterprise-grade security technologies. They deliver firewall, VPN (IPSec and SSL), intrusion prevention, antivirus/antispyware, antispam, and web filtering technologies. These platforms also provides application control, data loss prevention, dynamic routing for IPv4 and IPv6, endpoint NAC, and SSL-encrypted traffic inspection. These comprehensive security components enable you to deploy required technologies most suited for your unique environment.

Powerful, Secure, Easy to Install

FortiASIC purpose-built processors ensure that your security countermeasures will not become a network bottleneck. The FortiASIC CP8 processor delivers deep inspection security components such as application control, IPS and anti-malware. The FortiASIC NP4Lite processor delivers firewall and VPN throughput at switching speeds by performing high-speed processing of network flows.

The FortiGate 200D series installs in minutes, automatically downloading regular updates to protect against the latest viruses, network vulnerabilities, worms, spam and phishing attacks, and malicious websites with no administrator intervention. Leveraging patented FortiASIC acceleration, the FortiGate 200D series offers marketleading performance, with high-density GbE interfaces that facilitate network growth and expansion. Onboard storage provide local archiving of data for policy compliance and/or web caching.

Performance and Protection for Mid-size Networks

• High port density delivers maximum flexibility and scalability
• Application control coupled with identity-based policy enforcement provides complete content protection
• Strong authentication options for policy compliance
• IPv6 certified platform

Key Features & Benefits:

• Consolidated Security Architecture - FortiGate consolidated security offers better protection and lower cost of ownership than stand-alone security products
• High Port Density - Up to 90x GE ports facilitate flexible deployment of network segments and promotes network expansion and high availability configurations
• Single Pane of Glass Management - Reduces complexity and decreases costs as all security functions can be managed through one console
• Power Over Ethernet Seamless integration of peripheral devices in a secure environment.

Highlights:

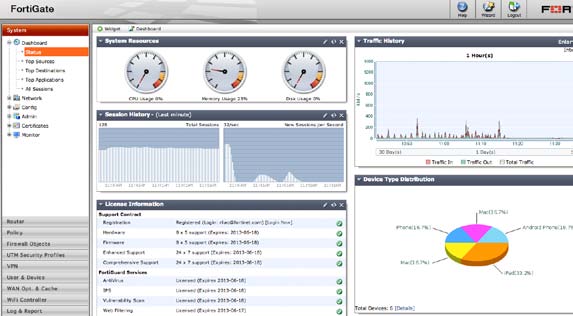

FortiOS — The World's Most Advanced Security Operating System

Fortinet designed FortiOS to deliver the advanced protection and performance that standalone products simply cannot match. The integrated technologies work together as a system to provide better visibility and mitigation of the latest network and application threats, stopping attacks before damage can occur. FortiGuard Subscription Services provide automated, real-time, up-to-date protection against security threats.

• Feature Select Instantly fine-tunes the FortiGate based on desired deployment needs using feature presets. Simplifies user administration and configurations while providing flexibility for different deployment modes.
• Contextual Visibility Presents critical deep insights into historic or real-time network activities with data on threat details, IPs, users, devices, applications and more. Allows administrators to quickly understand threats and stop them.
• Advanced Security Multiple advanced technologies can be coordinated to look for and stop today's blended, targeted or unknown attacks. Efficient packet handling improves performance while lowering latencies and reducing network complexities.

Industry Validation

The FortiGate family of physical and virtual appliances has earned more certifications than any other vendor by consistently meeting rigorous third-party standards. Our industry-leading technology provides you with air-tight security which you can safely count on.

More Protection and Better ROI

The FortiGate constantly evolves itself in its mission to provide more value for users. Extended features such as WiFi controller, integrated token server, endpoint control and WAN optimization add more security to organizations without incurring additional cost. Complete and Real-time Security Fortinet FortiGuard Subscription Services provide automated, real-time, up-to-date protection against the latest security threats. Our threat research labs are located worldwide, providing 24x7 updates when you most need it

World-Class Technical Support and Documentation

Fortinet FortiCare support offerings provide comprehensive global support for all Fortinet products and services. You can rest assured your Fortinet security products are performing optimally and protecting your users, applications, and data around the clock.

Specifications:

FortiGate	200D	200D-POE	240D	240D-POE	280D-POE
Hardware Specifications
GE RJ45 WAN Interfaces	2	2	2	2	2
GE RJ45 LAN Interfaces	16	8	40	16	52
GE RJ45 PoE LAN Interfaces	-	8	-	24	32
GE SFP DMZ Interfaces	2	2	2	2	4
USB (Client / Server)	1 / 1
Console (RJ45)	1
Local Storage	64 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	3 / 3 / 3 Gbps	3 / 3 / 3 Gbps	4 / 4 / 4 Gbps	4 / 4 / 4 Gbps	4 / 4 / 4 Gbps
Firewall Latency (64 byte UDP packets)	2 μs	2 μs	6 μs	6 μs	2 μs
Firewall Throughput (Packets Per Second)	4.5 Mpps	4.5 Mpps	6 Mpps	6 Mpps	6 Mpps
Concurrent Sessions (TCP)	3.2 Million	3.2 Million	3.2 Million	3.2 Million	3.2 Million
New Sessions/Sec (TCP)	77,000	77,000	77,000	77,000	77,000
Firewall Policies (Max)	10,000	10,000	10,000	10,000	10,000
IPSec VPN Throughput (512 byte packets)	1.3 Gbps	1.3 Gbps	1.3 Gbps	1.3 Gbps	1.3 Gbps
Gateway-to-Gateway IPSec VPN Tunnels	2,000	2,000	2,000	2,000	2,000
Client-to-Gateway IPSec VPN Tunnels	5,000	5,000	5,000	5,000	5,000
SSL-VPN Throughput	400 Mbps	400 Mbps	400 Mbps	400 Mbps	400 Mbps
Concurrent SSL-VPN Users (Recommended Max)	300	300	300	300	300
IPS Throughput	1.7 Gbps	1.7 Gbps	2.1 Gbps	2.1 Gbps	2.1 Gbps
Antivirus Throughput (Proxy Based / Flow Based)	600 / 1,100 Mbps	600 / 1,100 Mbps	600 / 1,100 Mbps	600 / 1,100 Mbps	600 / 1,100 Mbps
Virtual Domains (Default / Max)	10 / 10
Max Number of FortiAPs (Total / Tunnel Mode)	128 / 64
Max Number of FortiTokens	1,000
Max Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length	1.75 x 17.01 x 11.73 in (44 x 432 x 298 mm)	1.75 x 17.01 x 11.73 in (44 x 432 x 298 mm)	1.75 x 17.01 x 11.73 in (44 x 432 x 298 mm)	1.75 x 17.01 x 11.73 in (44 x 432 x 298 mm)	3.5 x 17.2 x 11.8 in (89 x 437 x 300 mm)
Form Factor	Rack Mount, 1 RU	Rack Mount, 1 RU	Rack Mount, 1 RU	Rack Mount, 1 RU	Rack Mount, 2 RU
Weight	10.5 lbs (4.8 kg)	10.5 lbs (4.8 kg)	10.5 lbs (4.8 kg)	10.5 lbs (4.8 kg)	17.0 lbs (7.6 kg)
Environmental
Power	100 - 240 VAC, 50 - 60 Hz	100 - 240 VAC, 50 - 60 Hz	100 - 240 VAC, 50 - 60 Hz	100 - 240 VAC, 50 - 60 Hz	100 - 240 VAC, 50 - 60 Hz
Max Current	110 V / 3 A, 220 V / 1.5 A	110 V / 7 A, 220 V / 3.5 A	110 V / 3 A, 220 V / 1.5 A	110 V / 7 A, 220 V / 3.5 A	110 V / 7 A, 220 V / 3.5 A
Total Available PoE Power Budget	-	270 W	-	270 W	270 W
Power Consumption (Avg / Max)	55 / 79 W	131 / 191 W	80 / 98 W	220 / 335 W	329 / 340 W
Heat Dissipation	270 BTU / h	652. BTU / h	335 BTU / h	1211 BTU / h	1158 BTU/h
Operating Temperature / Storage Temperature	32 - 104 °F (0 - 40 °C) / -31 - 158 °F (-35 - 70 °C)
Humidity	20 to 90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance
	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
	ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN

Note: All performance values are “up to” and vary depending on system configuration. Antivirus performance is measured using 44 Kbyte HTTP files. IPS performance is measured using 1 Mbyte HTTP files. IPSec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.

Content Processor

The FortiASIC CP8 content processor works outside of the direct flow of traffic, providing high-speed cryptography and content inspection services including:

• Signature-based content inspection acceleration
• Encryption and decryption offloading

Network Processor

The FortiASIC NP4Lite network processor works inline with firewall and VPN functions delivering:

• Wire-speed firewall performance for any size packets
• VPN acceleration
• Anomaly-based intrusion prevention, checksum offload and packet defragmentation
• Traffic shaping and priority queuing

Documentation:

Download the Fortinet FortiGate 200D Series Datasheet (PDF).
