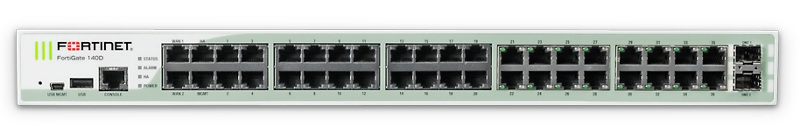

Fortinet FortiGate 140D-POE
Integrated Security for Small and Medium Enterprises

Overview:

In order to comply with legislation and secure the valuable data traversing networks, small and medium enterprises and remote branch offices need a security solution that integrates multiple attack recognition technologies into a single device. With limited budgets and modest remote resources, these smaller networks desire a cost effective solution that is simple to install, connect and maintain. Just as importantly, networks are ever-expanding and need a solution that leaves them with room to grow over time.

The FortiGate-100D series is an ideal security solution for small and medium enterprises or remote branch offices of larger networks. It combines firewall, IPSec and SSL VPN, application control, intrusion prevention, anti-malware, antispam, P2P security, and web filtering into a single device.

Simple, Powerful, Secure

The FortiGate-100D series installs in minutes, automatically downloading regular updates to protect against the latest viruses, network vulnerabilities, worms, spam and phishing attacks, and malicious websites with no administrator intervention. Leveraging patented FortiASIC acceleration, the FortiGate-100D series offers marketleading performance, with high port density that facilitate network growth and expansion. Onboard storage provides local archiving of data for policy compliance and/or WAN Optimization. The WAN Optimization functionality increases network performance by reducing the amount of communication and data transmitted between applications and servers across a WAN, and/or web caching.

Meeting the Needs of Small and Medium Enterprises and Branch Offices

• High port density delivers maximum flexibility and scalability
• Application control coupled with identity-based policy enforcement provides complete content protection
• Strong authentication options for policy compliance

Features & Benefits:

Features	Benefits
Consolidated Security Architecture	Better protection and lower cost of ownership than multiple point security products.
Single Pane of Glass Management	Reduces complexity and decreases costs as all security functions can be managed through one console.
High Port Density	Up to 42 x GbE ports facilitate flexible deployment of network segments and promotes network expansion and high availability configurations.
Power Over Ethernet	Seamless integration of peripheral devices in a secure environment.

Content Processor

The FortiASIC CP8 content processor works outside of the direct flow of traffic, offloading critical CPU resources.

Install in Minutes with FortiExplorer

The FortiExplorer™ wizard enables you to easily and quickly set up and configure FortiGate platforms with easy-to-follow instructions. The application runs on Windows, Mac OS X desktops and laptops as well as popular mobile devices. Simply connect to the appropriate USB port on the appliance, and be fully protected in minutes.

Power up with PoE Interfaces

The FortiGate-140D-POE-POE and FortiGate-140D-POE-POE-T1 include PoE interfaces that allow you to plug in compatible wireless access points and IP phones out of the box, providing ease of deployment and lower TCO.

FortiOS — The World’s Most Advanced Security Operating System

• Feature Select - Instantly fine-tunes the FortiGate based on desired deployment needs using feature presets. Simplifies user administration and configurations while providing flexibility for different deployment modes.
• Contextual Visibility - Presents critical deep insights into historic or real-time network activities with data on threat details, IPs, users, devices, applications and more. Allows administrators to quickly understand threats and stop them.
• Advanced Security - Multiple advanced technologies can be coordinated to look for and stop today’s blended, targeted or unknown attacks. Efficient packet handling improves performance while lowering latencies and reducing network complexities.

Industry Validation

The FortiGate family of physical and virtual appliances has earned more certifications than any other vendor by consistently meeting rigorous third-party standards. Our industry-leading technology provides you with air-tight security which you can safely count on.

More Protection and Better ROI

The FortiGate constantly evolves itself in its mission to provide more value for users. Extended features such as WiFi and L2 switch controller, integrated token server, endpoint control and WAN optimization add more security to organizations without incurring additional cost.

Complete and Real-time Security

Fortinet FortiGuard Subscription Services provide automated, real-time, up-to-date protection against the latest security threats. Our threat research labs are located worldwide, providing 24x7 updates when you most need it.

World-Class Technical Support and Documentation

Fortinet FortiCare support offerings provide comprehensive global support for all Fortinet products and services. You can rest assured your Fortinet security products are performing optimally and protecting your users, applications, and data around the clock.

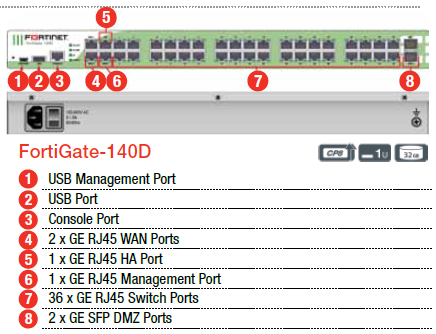

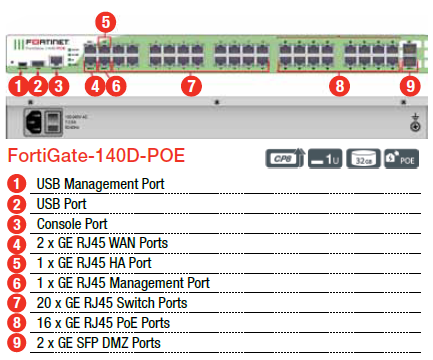

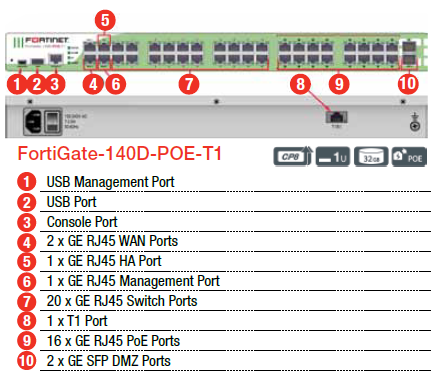

Diagrams:

Specifications:

Fortinet FortiGate 100D Series Specifications
Models:	100D	140D	140D-POE	140D-POE-T1
Hardware Specifications
GbE RJ45 Ports	20	40	24	24
GbE RJ45 PoE Ports	-	-	16	16
GbE SFP or RJ45 Shared Ports	2	-	-	-
GbE SFP Ports	-	2	2	2
USB Ports (Client / Server)	1/2	1/1	1/1	1/1
T1 Port	-	-	-	1
Console Port	1
Internal Storage	32 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	2,500 / 1,000 / 200 Mbps
Firewall Latency (64 byte UDP packets)	37 μs	46 μs	46 μs	46 μs
Firewall Throughput (Packets Per Second)	300 Kpps
Concurrent Sessions (TCP)	3 Million
New Sessions/Sec (TCP)	22,000
Firewall Policies	10,000
IPSec VPN Throughput (512 byte packets)	450 Mbps
Gateway-to-Gateway IPSec VPN Tunnels	2,000
Client-to-Gateway IPSec VPN Tunnels	5,000
SSL-VPN Throughput	300 Mbps
Concurrent SSL-VPN Users (Recommended Max)	300
IPS Throughput	950 Mbps
Antivirus Throughput (Proxy Based / Flow Based)	300 / 650 Mbps
Virtual Domains (Default / Max)	10 / 10
Max Number of FortiAPs (Total / Tunnel Mode)	64 / 32
Max Number of FortiTokens	1,000
Max Number of Registered FortiClients	2,000
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (in)	1.75 x 17.01 x 11.73 in	1.75 x 17.01 x 12.28 in	1.75 x 17.01 x 12.28 in	1.75 x 17.01 x 12.28 in
Height x Width x Length (mm)	44 x 432 x 298 mm	44 x 432 x 312 mm	44 x 432 x 312 mm	44 x 432 x 312 mm
Form Factor	Rack Mount, 1 RU
Weight	9.5 lbs (4.3 kg)	11.5 lbs (5.2 kg)	11.5 lbs (5.2 kg)	11.5 lbs (5.2 kg)
Environmental
Power Required	100 - 240 VAC, 50 - 60 Hz
Max Current	110 V / 3 A, 220 V / 1.5 A	110 V / 2 A, 220 V / 1 A	110 V / 4 A, 220 V / 2 A	110 V / 4 A, 220 V / 2 A
Total Available PoE Power Budget	-	-	270 W	270 W
Power Consumption (AVG / Max)	52.6 W / 63.1 W	44.8 / 58.7 W	193.4 W / 337.1 W	193.4 W / 337.1 W
Heat Dissipation	215.3 BTU/h	200.3 BTU/h	1150.2 BTU/h	1150.2 BTU/h
Operating Temperature	32 - 104 °F (0 - 40 °C)
Storage Temperature	-31 - 158 °F (-35 - 70 °C)
Humidity	20 to 90% non-condensing
Compliance & Certifications
Compliance	FCC Class A Part 15, UL/CUL, CE, C Tick, VCCI
Certifications	ICSA Labs: Firewall, SSL VPN, IPS, Antivirus

Note: All performance values are “up to” and vary depending on system configuration. Antivirus performance is measured using 44 Kbyte HTTP files. IPS performance is measured using 1 Mbyte HTTP files.

Services & Support:

FortiGuard® Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare™ Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with return and replace hardware support or 24x7 Comprehensive Support with advanced hardware replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1 Year limited hardware warranty and a 90-day limited software warranty.

FortiCare Support Services:

Available:

• 24/7/365 FortiCare Web-based support
• 24x7 telephone-based technical support
• 1 Year limited hardware warranty
• Technical account management service
• Professional services
• 90-day limited software warranty

Documentation:

Download the Fortinet FortiGate 100D Series Datasheet (PDF).
