Fortinet FortiGate 121G
Converged Next-Generation Firewall (NGFW) and SD-WAN

Overview:

The FortiGate Next-Generation Firewall 120G series is ideal for building security-driven networks at distributed enterprise sites and transforming WAN architecture at any scale.

With a rich set of AI/ML-based FortiGuard security services and our integrated Security Fabric platform, the FortiGate 120G series delivers coordinated, automated, end-to-end threat protection across all use cases.

FortiGate has the industry’s first integrated SD-WAN and zero-trust network access (ZTNA) enforcement within an NGFW solution and is powered by one OS. FortiGate 120G automatically controls, verifies, and facilitates user access to applications, delivering consistency with a seamless and optimized user experience.

Highlights

• Gartner Magic Quadrant Leader for both Network Firewalls and WAN Edge Infrastructure.
• Security-Driven Networking FortiOS delivers converged networking and security
• State-of-the-Art Unparalleled Performance with Fortinet’s patented SoC processors
• Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
• Simplified Operations with centralized management for networking and security, automation, deep analytics, and self-healing.

IPS	NGFW	Threat Protection	Interfaces
5.3 Gbps	3.1 Gbps	2.8 Gbps	Multiple GE RJ45, 10 GE RJ45, and SFP+ Shared Media Slots | Variants with internal storage

---

FortiOS Everywhere:

FortiOS, Fortinet’s Advanced Operating System

FortiOS enables the convergence of high performing networking and security across the Fortinet Security Fabric. Because it can be deployed anywhere, it delivers consistent and context-aware security posture across network, endpoint, and multi-cloud environments.

FortiOS powers all FortiGate deployments whether a physical or virtual device, as a container, or as a cloud service. This universal deployment model enables the consolidation of many technologies and use cases into a simplified, single policy and management framework. Its organically built best-of-breed capabilities, unified operating system, and ultra-scalability allows organizations to protect all edges, simplify operations, and run their business without compromising performance or protection.

FortiOS dramatically expands the Fortinet Security Fabric’s ability to deliver advanced AI/ ML-powered services, inline advanced sandbox detection, integrated ZTNA enforcement, and more, provides protection across hybrid deployment models for hardware, software, and Software-as-a-Service with SASE.

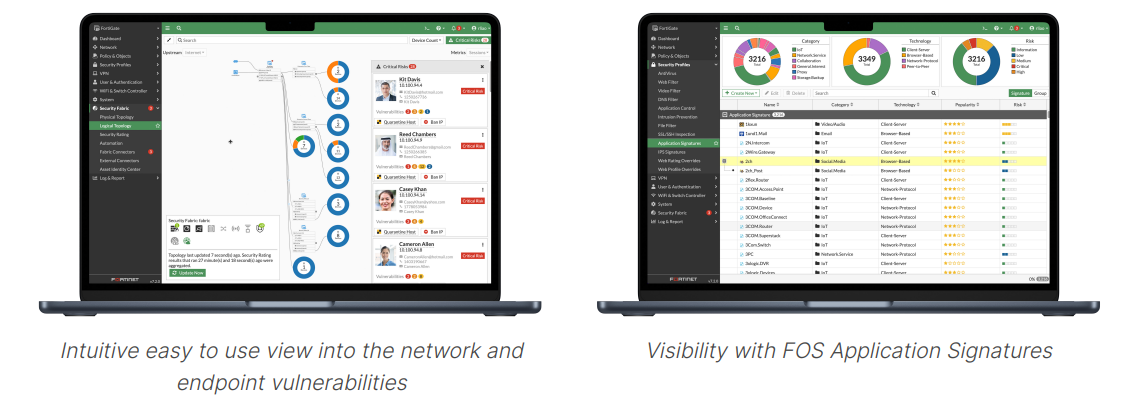

FortiOS expands visibility and control, ensures the consistent deployment and enforcement of security policies, and enables centralized management across large-scale networks with the following key attributes:

• Interactive drill-down and topology viewers that display real-time status
• On-click remediation that provides accurate and quick protection against threats and abuses
• Unique threat score system correlates weighted threats with users to prioritize investigations

---

FortiConverter Service

FortiConverter Service provides hassle-free migration to help organizations transition from a wide range of legacy firewalls to FortiGate Next-Generation Firewalls quickly and easily. The service eliminates errors and redundancy by employing best practices with advanced methodologies and automated processes. Organizations can accelerate their network protection with the latest FortiOS technology.

---

FortiGuard Services

Network and File Security

Services provide protection against network-based and file-based threats. This consists of Intrusion Prevention (IPS) which uses AI/M models to perform deep packet/SSL inspection to detect and stop malicious content, and apply virtual patching when a new vulnerability is discovered. It also includes Anti-Malware for defense against known and unknown file-based threats. Anti-malware services span both antivirus and file sandboxing to provide multilayered protection and are enhanced in real-time with threat intelligence from FortiGuard Labs. Application Control enhances security compliance and offers real-time application visibility.

---

Web / DNS Security

Services provide protection against web-based threats including DNS-based threats, malicious URLs (including even in emails), and botnet/command and control communications. DNS filtering provides full visibility into DNS traffic while blocking high-risk domains, and protects against DNS tunneling, DNS infiltration, C2 server ID and Domain Generation Algorithms (DGA). URL filtering leverages a database of 300M+ URLs to identify and block links to malicious sites and payloads. IP Reputation and anti-botnet services prevent botnet communications, and block DDoS attacks from known sources.

---

SaaS and Data Security

Services address numerous security use cases across application usage as well as overall data security. This consists of Data Leak Prevention (DLP) which ensures data visibility, management and protection (including blocking exfiltration) across networks, clouds, and users, while simplifying compliance and privacy implementations. Separately, our Inline Cloud Access Security Broker (CASB) service protects data in motion, at rest, and in the cloud. The service enforces major compliance standards and manages account, user and cloud application usage. Services also include capabilities designed to continually assess your infrastructure, validate that configurations are working effectively and secure, and generate awareness of risks and vulnerabilities that could impact business operations. This includes coverage across IoT devices for both IoT detection and IoT vulnerability correlation.

---

Zero-Day Threat Prevention

Zero-day threat prevention entails Fortinet’s AI-based inline malware prevention, our most advanced sandbox service, to analyze and block unknown files in real-time, offering subsecond protection against zero-day and sophisticated threats across all NGFWs. The service also has a built-in MITRE ATT&CK® matrix to accelerate investigations. The service focuses on comprehensive defense by blocking unknown threats while streamlining incident response efforts and reducing security overhead.

---

OT Security

The service provides OT detection, OT vulnerability correlation, virtual patching, OT signatures, and industry-specific protocol decoders for overall robust defense of OT environments and devices.

---

Secure Any Edge at Any Scale

Powered by Security Processing Unit (SPU)

Traditional firewalls cannot protect against today’s content- and connection-based threats because they rely on off-the-shelf hardware and general-purpose CPUs, causing a dangerous performance gap. Fortinet’s custom SPU processors deliver the power you need—up to 520Gbps—to detect emerging threats and block malicious content while ensuring your network security solution does not become a performance bottleneck.

ASIC Advantage

• Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
• Delivers industry’s fastest application identification and steering for efficient business operations
• Accelerates IPsec VPN performance for best user experience on direct internet access
• Enables best of breed NGFW Security and Deep SSL Inspection with high performance
• Extends security to access layer to enable SD-Branch transformation with accelerated and integrated switch and access point connectivity

FortiCare Services

Fortinet is dedicated to helping our customers succeed, and every year FortiCare Services help thousands of organizations get the most from our Fortinet Security Fabric solution. Our lifecycle portfolio offers Design, Deploy, Operate, Optimize, and Evolve services. Operate services offer device-level FortiCare Elite service with enhanced SLAs to meet our customer’s operational and availability needs. In addition, our customized account-level services provide rapid incident resolution and offer proactive care to maximize the security and performance of Fortinet deployments.

---

Use Cases:

Next Generation Firewall (NGFW)

• FortiGuard Labs’ suite of AI-powered Security Services—natively integrated with your NGFW—secures web, content, and devices and protects networks from ransomware and sophisticated cyberattacks
• Real-time SSL inspection (including TLS 1.3) provides full visibility into users, devices, and applications across the attack surface
• Fortinet’s patented SPU (Security Processing Unit) technology provides industry-leading high-performance protection

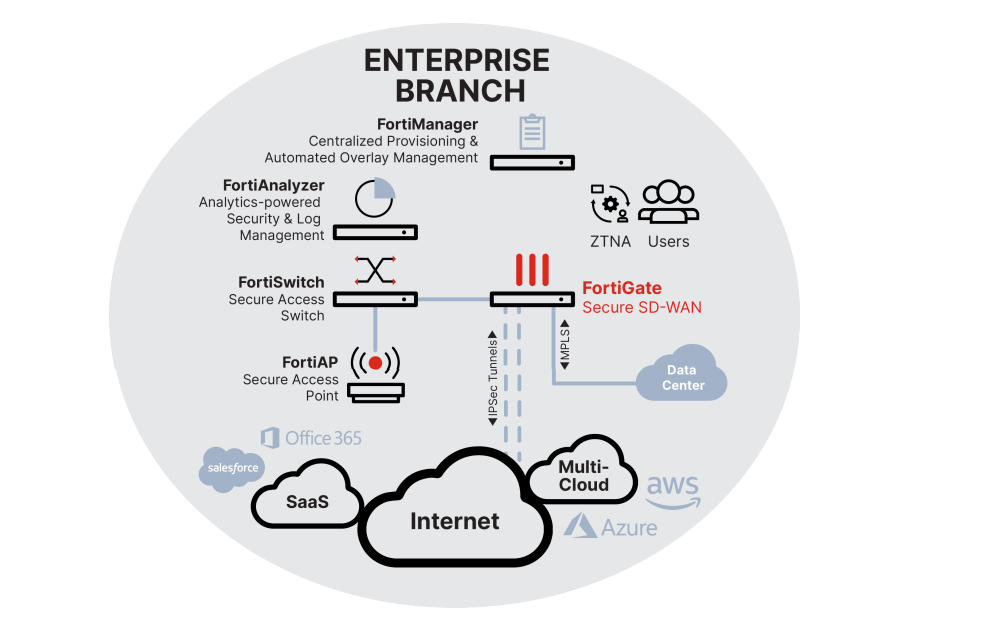

Secure SD-WAN

• FortiGate WAN Edge powered by one OS and unified security and management framework and systems transforms and secures WANs
• Delivers superior quality of experience and effective security posture for work-from-any where models, SD-Branch, and cloud-first WAN use cases
• Achieve operational efficiencies at any scale through automation, deep analytics, and self-healing

Universal ZTNA

• Control access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies
• Provide extensive authentications, checks, and enforce policy prior to granting application access - every time
• Agent-based access with FortiClient or agentless access via proxy portal for guest or BYOD

---

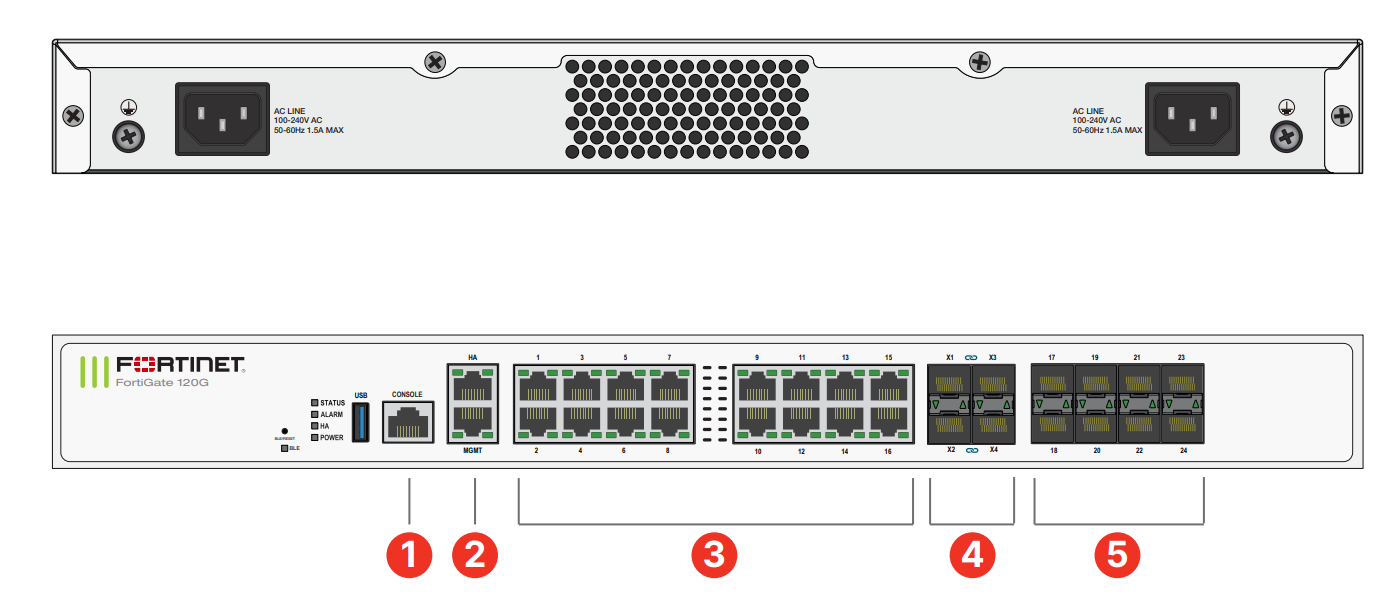

Hardware:

FortiGate 120G Series

Specifications:

	FortiGate 120G	FortiGate 121G
Hardware Specifications
Hardware Accelerated GE RJ45 Ports	16	16
Hardware Accelerated GE RJ45 Management / HA Ports	2	2
Hardware Accelerated GE SFP Slots	8	8
Hardware Accelerated 10 GE SFP+ FortiLink Slots (default)	4	4
USB Ports	1	1
Console (RJ45)	1	1
Internal Storage	-	1 x 480 GB SSD
Trusted Platform Module (TPM)	Yes	Yes
Bluetooth Low Energy (BLE)	Yes	Yes
System Performance* — Enterprise Traffic Mix
IPS Throughput	5.3 Gbps
NGFW Throughput	3.1 Gbps
Threat Protection Throughput	2.8 Gbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	39 / 39 / 28 Gbps
Firewall Latency (64 byte UDP packets)	3.17 μs
Firewall Throughput (Packets Per Second)	42 Mpps
Concurrent Sessions (TCP)	3 M
New Sessions/Second (TCP)	140 000
Firewall Policies	10 000
IPsec VPN Throughput (512 byte)	35 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2000
Client-to-Gateway IPsec VPN Tunnels	16 000
SSL-VPN Throughput	1.5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS)	3 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	2100
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	315 000
Application Control Throughput (HTTP 64K)	6.7 Gbps
CAPWAP Throughput (HTTP 64K)	35 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	32
Maximum Number of FortiAPs (Total / Tunnel Mode)	128 / 64
Maximum Number of FortiTokens	5000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.73 x 17 x 10
Height x Width x Length (mm)	44 x 432 x 254
Weight	12.17 lbs (5.52 kg)
Form Factor	Rack Mount, 1RU
Operating Environment and Certifications
Input Rating	100-120VAC, 1A-.5A Max, 50-60Hz
Redundant Power Supplies	Yes (Default dual non-swappable AC PSU for 1+1 Redundancy)
Power Supply Efficiency Rating	N/A
Maximum Current	100VAC@1A, [email protected]
Power Consumption (Average / Maximum)	38 W / 40 W	43 W / 47 W
Heat Dissipation	138 BTU/hr	159 BTU/h
Operating Temperature	32°–104°F (0°–40°C)
Storage Temperature	-31°–158°F (-35°–70°C)
Humidity	20%–90% noncondensing	10–90% non-condensing
Noise Level	49 dBA
Air Flow	Side to back
Operating Altitude	Up to 10 000 ft (3048 m)
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	USGv6/IPv6

---

Documentation:

Download the Fortinet FortiGate 120G Series Data Sheet (PDF).

---
