RackMount Kit for FortiGate 70D / 90D / 92D / 90E / 91E

RM-FR-T7:

RM-CP-T1

This product is no longer available.

Please Contact us for more information.


All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

Looking to save more?! Our rackmounts bundles are at the best price, best value, super convenient!

You can purchase the rackmount kit and hardware separately or save more by buying them bundle together. Each bundle comes with a hardware and rackmount design for that hardware.

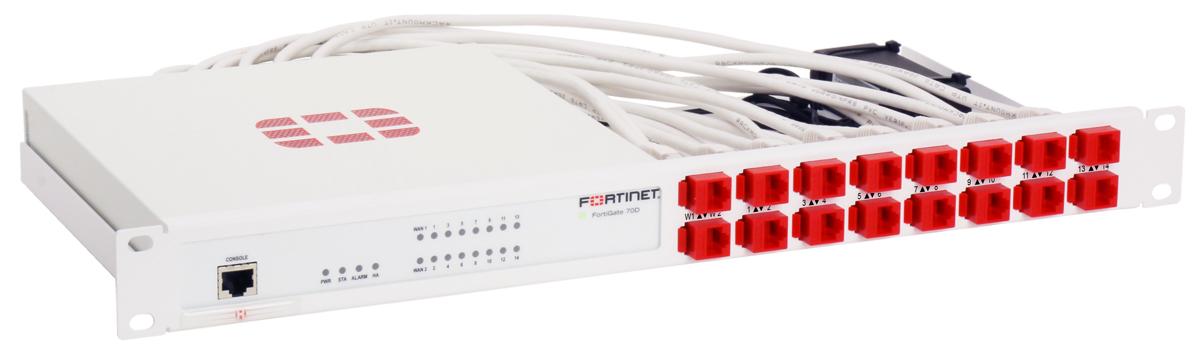

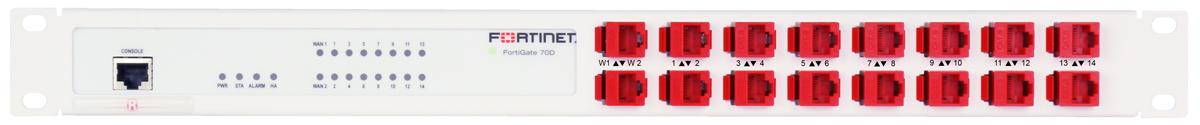

The RM-FR-T7 gives you the ability to mount your Fortinet desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

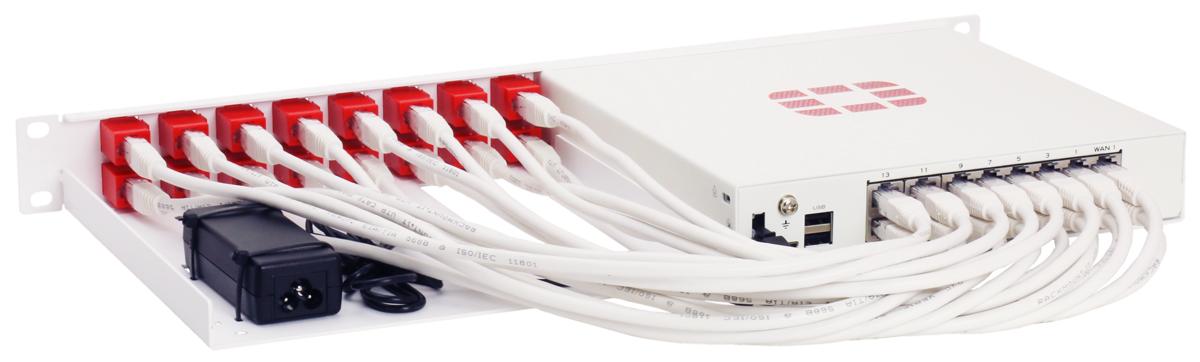

Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Image Views:


Specifications
Manufacturer Rackmount.IT
Model Fortinet
For Use
  • FortiGate 70D
  • FortiGate 90D
  • FortiGate 92D
  • FortiGate 90E
  • FortiGate 91E
Color RAL 9003 Signal White
Height 1U
Dimensions
(height x width x depth)
1.73 in. x 18.98 in. x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front 16
Console port to the front Yes
Cables 16x 0.5m cables
Couplers 16x RJ45 couplers
What's in the box
  • 1x CP-Rack + RJ45 couplers
  • Cables
  • Assembly materials
  • Installation guide

Download the RM-FR-T7 Datasheet (PDF).
