RackMount Kit for Fortinet FortiGate 90G / 91G


RM-FR-T20:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

This model supports two firewalls. We also have a model which houses only one firewall. Click here to view this product. You have to ability to mount both the main power supplies, as well as the redundant power supplies to rack.

The RM-FR-T20 gives you the ability to mount your Fortinet desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, and fix the power supply to the rack.

Other colors can be delivered on a project basis.

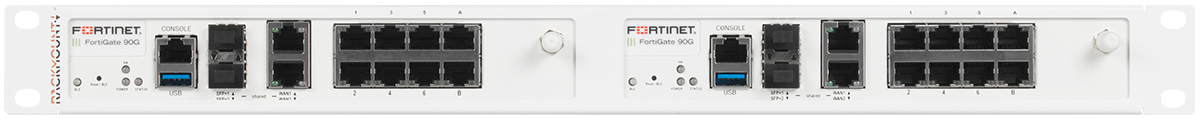

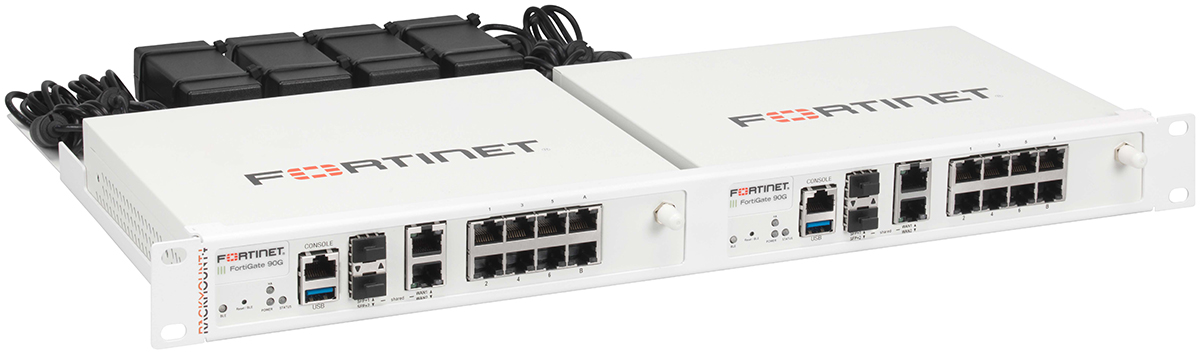

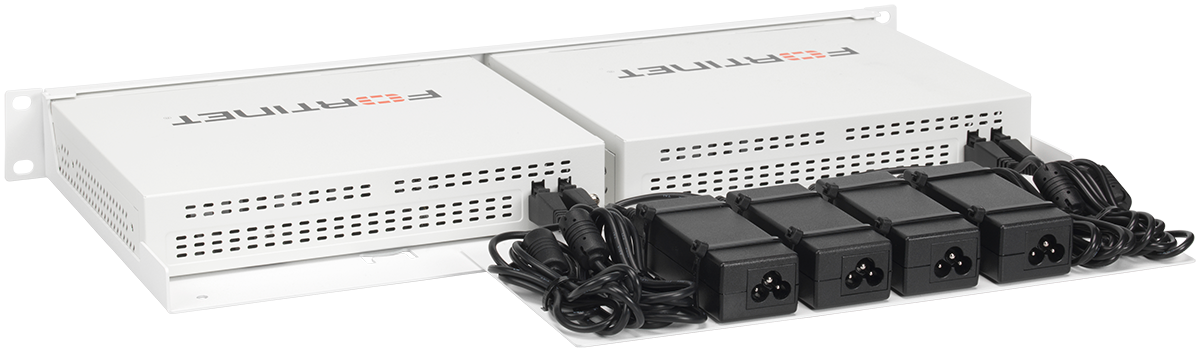

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Fortinet
For Use	FortiGate 90G FortiGate 91G
Color	RAL 9003 White
Height	1U
Dimensions (height x width x depth)	1.73 x 18.98 x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front	14
Console port to the front	Yes
Cables	None
Couplers	None
What's in the box	1x FortiRack Assembly materials Installation guide

Download the RM-FR-T20 Datasheet (PDF).
