Rack Mount Kit for FortiGate 60E, 60E-POE, 60E-DSL, 61E, 60F, 61F, and FortiADC 60F

RM-FR-T10:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

Looking to save more?! Our rackmounts bundles are at the best price, best value, super convenient!

You can purchase the rackmount kit and hardware separately or save more by buying them bundle together. Each bundle comes with a hardware and rackmount design for that hardware.

The RM-FR-T10 gives you the ability to mount your Fortinet desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

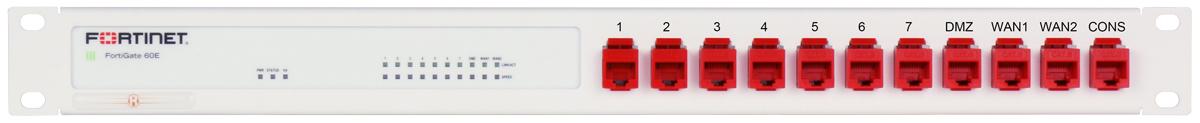

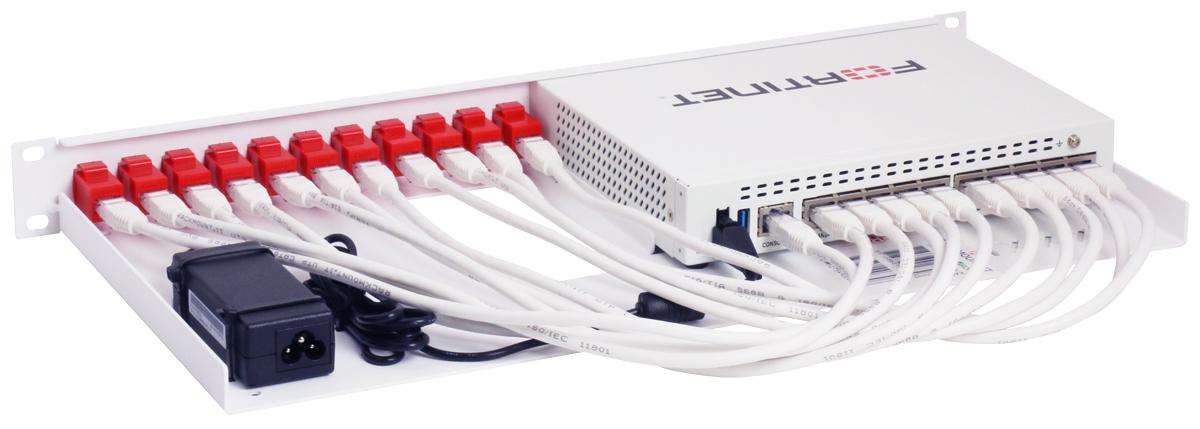

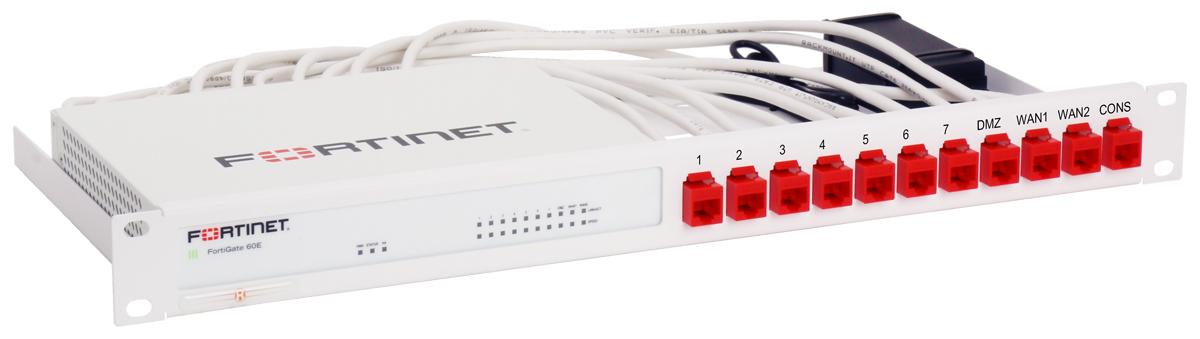

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Fortinet
For Use	FortiGate 60E FortiGate 60E-POE FortiGate 60E-DSL FortiGate 61E FortiGate 60F FortiGate 61F FortiADC 60F
Color	RAL 9003 Signal White
Height	1U
Dimensions (height x width x depth)	1.73 in. x 18.98 in. x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front	11
Console port to the front	Yes
Cables	11x 0.5m cables
Couplers	11x RJ45 couplers
What's in the box	1x FortiRack + RJ45 couplers Cables Assembly materials Installation guide

Download the RM-FR-T10 Datasheet (PDF).
