Fortinet FortiWiFi-80F-2R-3G4G-DSL
Next Generation Firewall Secure SD-WAN

Click here to jump to more pricing!

Overview:

The FortiGate FortiWiFi 80F series provides an application-centric, scalable, and secure SDWAN solution in a compact, fanless, desktop form factor for enterprise branch offices and midsized businesses with integrated WiFi-6 (802.11ax). Protects against cyber threats with systemon-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Security

• Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
• Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
• Prevents and detects against known attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services

Performance

• Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
• Provides industry-leading performance and protection for SSL encrypted traffic

Certification

• Independently tested and validated best security effectiveness and performance
• Received unparalleled third-party certifications from NSS Labs

Networking

• Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
• Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments

Management

• Includes a management console that is effective, simple to use, and provides comprehensive network automation and visibility
• Provides Zero Touch Integration with Fortinet’s Security Fabric’s Single Pane of Glass Management
• Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture

Security Fabric

• Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation

Firewall	IPS	NGFW	Threat Protection	Interfaces
10 Gbps	1.4 Gbps	1 Gbps	900 Mbps	Multiple GE RJ45 | Variants with internal storage | WiFi

Hardware:

FortiWiFi 80F/81F-2R-3G4G-DSL,
FortiWiFi 81F-2R-3G4G-POE

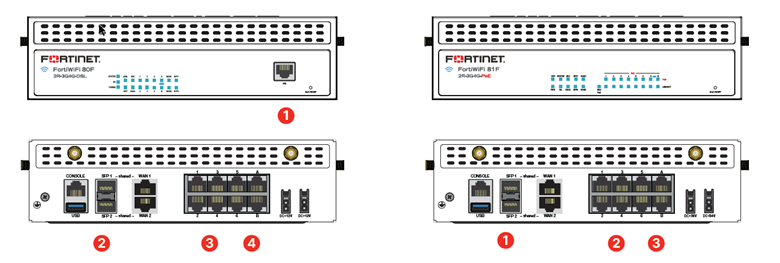

FortiWiFi 80F/81F-2R-3G4G-DSL - Interfaces

1. 1x DSL Port (RJ11)
2. 2x GE RJ45/SFP Shared Media Ports
3. 6x GE RJ45 Ports
4. 2x GE RJ45 FortiLink Ports

FortiWiFi 81F-2R-3G4G-POE - Interfaces

1. 2x GE RJ45/SFP Shared Media Ports
2. 6x GE RJ45 POE/+Ports
3. 2x GE RJ45 POE/+FortiLink Ports

Powered by Purpose-built Secure SD-WAN ASIC SOC4

• Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
• Delivers industry’s fastest application identification and steering for efficient business operations
• Accelerates IPsec VPN performance for best user experience on direct internet access
• Enables best of breed NGFW Security and Deep SSL Inspection with high performance
• Extends security to access layer to enable SD-Branch transformation with accelerated and integrated switch and access point connectivity
• Accelerates IPsec VPN performance for best user experience on direct internet access

Superior Wireless Coverage

A built-in dual-band, dual-stream access point is integrated on the FortiWiFi-80F-2R-3G4G-DSL series which provides the industry’s latest high-speed WiFi-6 (802.11ax) wireless access.

Secure Access Layer

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.

Trusted Platform Module

The FortiGate/FortiWiFi 80F Series features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.

Bypass WAN/LAN Mode

The FortiGate-80F-Bypass offers a pair of bypass ports that help organizations avoid network communication interruption due to device faults and improve network reliability.

Various WAN Connectivity Options

The FortiGate 80F Series includes a 3.0 USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Fabric Security:

Security Fabric

The industry’s highest-performing cybersecurity platform, powered by FortiOS, with a rich ecosystem designed to span the extended digital attack surface, delivering fully automated, self-healing network security.

• Broad: Coordinated detection and enforcement across the entire digital attack surface and lifecycle with converged networking and security across edges, clouds, endpoints and users
• Integrated: Integrated and unified security, operation, and performance across different technologies, location, deployment options, and the richest Ecosystem
• Automated: Context aware, self-healing network & security posture leveraging cloud-scale and advanced AI to automatically deliver near-real-time, user-to-application coordinated protection across the Fabric

FortiOS™ Operating System

FortiOS, Fortinet’s leading operating system enable the convergence of high performing networking and security across the Fortinet Security Fabric delivering consistent and context-aware security posture across network endpoint, and clouds. The organically built best of breed capabilities and unified approach allows organizations to run their businesses without compromising performance or protection, supports seamless scalability, and simplifies innovation consumption. The release of FortiOS 7 dramatically expands the Fortinet Security Fabric’s ability to deliver consistent security across hybrid deployment models consisting on appliances, software and As-a-Service with SASE, ZTNA and other emerging cybersecurity solutions.

Services

FortiGuard™ Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations and other network and security vendors, as well as law enforcement agencies.

FortiCare™ Services

Fortinet is dedicated to helping our customers succeed, and every year FortiCare services help thousands of organizations get the most from their Fortinet Security Fabric solution. We have more than 1,000 experts to help accelerate technology implementation, provide reliable assistance through advanced support, and offer proactive care to maximize security and performance of Fortinet deployments.

Specifications:

	FortiWiFi-80F-2R-3G4G-DSL	FWF-81F-2R-3G4G-DSL	FWF-81F-2R-3G4G-POE
Hardware Specifications
GE RJ45/SFP Shared Media Pairs	2	2	2
GE RJ45 Internal Ports	6	6	—
GE RJ45 FortiLink Ports (Default)	2	2	—
GE RJ45 PoE/+ Ports	—	—	6
GE RJ45 PoE/+ FortiLink Ports (Default)	—	—	2
DSL RJ11 Port	1	1	—
Cellular Modem	3G4G / LTE
Wireless Interface	Single Radio (2.4GHz/5GHz), 802.11 a/b/g/n/ac-W2 Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio
Antenna Ports (SMA)	6
USB Ports 3.0	1	1	1
Console (RJ45)	1	1	1
SIM Slots (Nano SIM)	2	2	2
Internal Storage	—	128 GB	128 GB
Trusted Platform Module (TPM)	Yes	Yes	Yes
Bluetooth Low Energy (BLE)	Yes	Yes	Yes
System Performance — Enterprise Traffic Mix
IPS Throughput2	1 Gbps
NGFW Throughput2, 4	800 Mbps
Threat Protection Throughput2, 5	600 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	5/5/5 Gbps
Firewall Latency (64 byte UDP packets)	2.97 μs
Firewall Throughput (Packets Per Second)	7.5 Mpps
Concurrent Sessions (TCP)	7,00,000
New Sessions/Second (TCP)	35,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)1	4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL-VPN Throughput	490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)3	310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)3	320
SSL Inspection Concurrent Session (IPS, avg. HTTPS)3	55,000
Application Control Throughput (HTTP 64K)2	990 Mbps
CAPWAP Throughput (HTTP 64K)	3.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	8
Maximum Number of FortiAPs (Total / Tunnel Mode)	16 /8
Maximum Number of FortiTokens	500
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions
Height x Width x Length (inches)	2.4 x 8.5 x 7.0
Weight	3.5 lbs (1.6 kg)
Form Factor	Desktop/Wall Mount(optional)
Environment
Input Rating	12V DC, 5A	12V DC, 5A	54V DC, 2.78A
Power Required	Powered by up to two external DC power adapters (one adapter included), 100-240V AC, 50/60 Hz
Maximum Current	115Vac/0.9A, 230Vac/0.6A
Heat Dissipation	117.0 BTU/h	121.5 BTU/h	455.6 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	20–90% non-condensing
Operating Altitude	Up to 7400 ft (2250 m)
Compliance
Safety	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications
	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
