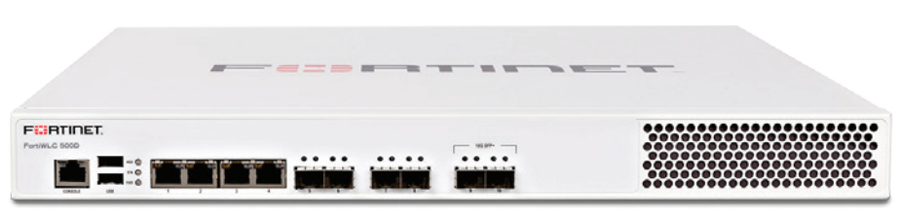

Fortinet FortiWLC 500D
Wireless Controllers

Overview:

End-to-end control over the wireless LAN for your organization The FortiWLC controller series optimizes traffic across our infrastructure wireless access points and client devices to support high density, high performance and predictability while addressing mission-critical enterprise demands for wireless connectivity. Each FortiWLC controller supports the performance requirements of the latest 802.11ac Wave II standard by providing double the performance of our existing Infrastructure wireless controllers. These high performance controllers also include support for Virtual Cell/Single Channel technology. It works with relevant Fortinet’s infrastructure access points to deliver data, voice, and video applications for small to large enterprises.

Powered by Fortinet’s System Director operating system, the FortiWLC creates a unified wireless LAN environment designed to deliver seamless mobility and superior reliability. System Director optimizes client distribution and channel utilization in both single- and multichannel deployments, maximizing efficiency to make the most of available wireless spectrum. Radio frequency virtualization simplifies deployment and allows easy capacity expansion as your needs evolve.

The controller manages authentication and encryption of our enterprise class infrastructure access points. You can easily extend the FortiWLC capabilities with optional software for policy enforcement and wireless intrusion prevention. As a Fortinet wireless controller, it integrates with the network management suite, which combines with System Director to bring application visibility, intelligent management and resilient wireless services to your network. It also integrates with Fortinet Connect as part of a complete BYOD and guest access solution.

Features

• Powered by System Director OS, and supports 802.11ac Wave II access points
• Radio frequency virtualization supported by patented Virtual Cell technology
• Infrastructure-controlled, zero-loss handoffs and traffic load balancing
• Multilayered wireless LAN security: 802.1X authentication, encryption, firewall, and optional wireless IPS/IDS
• Seamless interoperability with multi-vendor network infrastructure

Benefits

• Delivers highly predictable, resilient wireless services in both single- and multi-channel deployments
• Simplifies deployment and capacity expansion for your wireless network
• Offers seamless wireless mobility with superior roaming reliability
• Protects sensitive data and aids in compliance
• Supports existing technology investment

Specifications:

	FortiWLC 50D	FortiWLC 200D	FortiWLC 500D	FortiWLC 1000D	FortiWLC 3000D
Application	Small enterprise, remote offices	Mid enterprise	Large enterprise	Large enterprise	Large enterprise
Hardware
10/100/1000 Interfaces (Copper, RJ-45)	4	4	4	2	2
GE SFP Port	—	—	4	—	—
10 GE SFP+ Port	—	—	2	4	8
Console Port (RJ45, serial)	1	1	1	1	1
Internal Storage	60 GB SSD	120 GB SSD	2x 240 GB SSD	2x 480 GB SSD	2x 480 GB SSD
Capacity
Maximum Access Points	50	200	500	1,000	3,000
Maximum Clients	1,250	2,500	6,250	10,000	30,000
Security
Access Control	WEP, WPA-PSK, WPA-TKIP, WPA2-AES, 802.11i, 802.1X (EAP-TLS, EAP-TTLS, PEAP, LEAP, EAP-FAST, EAP-SIM, EAP-AKA, and EAP-MD5) 802.1X and captive portal authentication against local database on the controller, RADIUS, and Active Directory RADIUS-assisted per-user and per-ESSID access control via MAC filtering
Policy	Per-user firewall with fine-grained policy management: admission control, packet prioritization, QoS flows, packet drop policy, bandwidth scaling, filter ID, network protocol, and source port filtering. System-configured or per-user, RADIUS-configured firewall policies
Management & Networking
Zero Configuration	Access points automatically discover controllers and download configuration settings for zero-touch, plug-and-play deployment
System Management	Upgrades and management using System Director/Network Manager, support for SNMP, centralized WLAN security policies with multiple ESS profiles, VLAN-specific administrative/security policies
Intelligent RF Management	Coordination of access points with load balancing for predictable performance
VLAN Support	IEEE 802.1Q VLAN tagging, GRE Tunneling
QoS	WMM support, dynamic WMM rate adaptation, configurable QoS rules per user and application
Physical
Mounting	rack mount (mounting kit required; included)	rack mount (mounting kit required; included)	rack mount (mounting kit required; included)	rack mount (mounting kit required; included)	rack mount (mounting kit required; included)
Height x Width x Length (inches)	17.32 x 1.73 x 8.62	17.01 x 1.73 x 9.8	17.24 x 1.73 x 16.18	3.46 x 17.24 x 22.56	3.46 x 17.24 x 22.56
Height x Width x Length (mm)	440 x 44 x 219	432 x 44 x 249	438 x 44 x 411	88 x 438 x 573	88 x 438 x 573
Weight	6.39 lbs (2.9 kg)	12.79 lbs (5.8 kg)	16.98 lbs (7.7 kg)	36.16 lbs (16.4 kg)	36.16 lbs (16.4 kg)
Form Factor	1 RU	1 RU	1 RU	2 RU	2 RU
Environment & Power
Power Source	100–240V AC, 60–50 Hz, 65 W openframe single PSU	100–240V AC, 50–60Hz, 250 W single PSU	100–240V AC, 60–50 Hz, 300 W Redundant PSU	100–240V AC, 60–50 Hz, 65 W openframe single PSU	100–240V AC, 50–60Hz, 250 W single PSU
Power Consumption (Average / Maximum)	31 W / 24 W	105 W / 76 W	197 W / 141 W	251 W / 343 W	403 W / 526 W
Current (Maximum)	100V/1.5A, 240V/1.5A	100V/4A, 240V/2A	100V/5A, 240V/3A	100V/6.9A, 240V/2.8A	100V/6.9A, 240V/2.8A
Heat Dissipation	106 BTU/h	358 BTU/h	672 BTU/h	1,170.36 BTU/h	1,794.79 BTU/h
Operating Temperature	32–104°F (0–40°C)	32–104°F (0–40°C)	32–104°F (0–40°C)	32–104°F (0–40°C)	32–104°F (0–40°C)
Storage Temperature	-13–158°F (-25–70°C)	-13–158°F (-25–70°C)	-13–158°F (-25–70°C)	-13–158°F (-25–70°C)	-13–158°F (-25–70°C)
Humidity	5–95% (non-condensing)	5–95% (non-condensing)	5–95% (non-condensing)	5–95% (non-condensing)	5–95% (non-condensing)
Compliance
Regulatory Approval	FCC Part 15B Class A, UL 60950-1, CSA C22.2 No. 60950-1-07, EN 60950-1, IEC 60950-1, ICES-003 Class B, EN55022 Class B, EN55024, VCCI Class B, RCM, BSMI
Certification	RoHS, REACH, WEEE

Documentation:

Download the Fortinet FortiWLC Datasheet (PDF).
