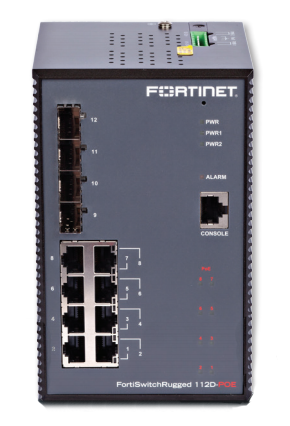

Fortinet FortiSwitchRugged 112D-POE
High Performance for Harsh Environments

Overview:

FortiSwitch Rugged switches deliver all of the performance and security of the trusted FortiSwitch line, but with added reinforcement that makes them ideal for deployments in harsh outdoor environments.

Resilient, sturdy and capable of withstanding intense temperature fluctuations, FortiSwitch Rugged ensures the integrity and performance of mission-critical networks in even the most challenging of deployments.

Add Ruggedized FortiGate for Tough and Powerful Protection

Engineered to survive in hostile environments with an extreme temperature range, the combination of FortiGate Rugged network security appliances with the FortiSwitch Rugged provides a connected network security solution.

Simple Network Deployment

The Power over Ethernet (PoE) capability enables simple installation of cameras, sensors and wireless access points in the network, with power and data delivered over the same network cable.

There is no need to contract electricians to install power for your PoE devices, reducing your overall network TCO.

Highlights

• Mean time between failure greater than 25 years
• Fanless passive cooling
• DIN-rail or wall-mountable
• Power over Ethernet capable including PoE+
• 8x GE RJ45 and 4x GE SFP slots
• Redundant power input terminals

Key Features & Benefits
Sturdy IP30 construction	Built to ingress protection 30 standards, the construction of the FSR-112D-POE is designed to perform while enduring hostile conditions.
Passive cooling	With no fan and no moving parts, the mean time between failure for the FSR-112D-POE is greater than 25 years.
Redundant power inputs	Maximizes network availability by eliminating the downtime associated with failure of a power input.
Power over Ethernet capability	Seamless integration of peripheral devices such as cameras, sensors and wireless access points into the network.

Capabilities: Fortilink Mode Vs. Standalone Mode:

	Standalone Switch	Fortilink Mode (FortiGate)
Security
802.1x Port Authentication	Yes	Yes
MAC Address-Based Authentication	No	Yes
MAC Black/White Listing	No	Yes
Layer 3,4 Stateful Firewall to Control Access	No	Yes
TACACS+/RADIUS Admin Access	Yes	Yes
DHCP Relay/DHCP Snooping	No	Yes
Virtual Domain	No	Yes
Routing
Layer 3, Dynamic Routing	No	Yes
Inter-VLAN Routing	No	Yes
Policy-Based Routing	No	Yes
DNS Server	No	Yes
Management
Auto Discovery of Multiple Switches	1	16 (model dependent)
Software Upgrade of Switches	1 switch	Central upgrade of each switch
VLAN Configuration	1 switch	Central VLAN provisioning of entire switch network
Policy Control of Users and Devices	No	Yes
Syslog Collection	Yes	Yes (FortiGate syslog only)
Switch POE Control	Yes	Yes
LAG support from FortiSwitch to FortiGate	Yes	Yes
UTM Features
Firewall	No	Yes
IPS, AV, Application Control	No	Yes

* For -D- models there is a dependency on the software version running on the FortiSwitch and on the FortiGate in order to use FortiLink mode. FortiLink is only enabled on certain ports on FortiGate and FortiSwitch. Refer to FortiLink documentation. Note: Please refer to FortiSwitch Admin Guide for details re: port connections supported for FortiLink functionality.

Software Features (Standalone Mode):

	FSR-112D-POE and FSR-124D*
Layer 2
Jumbo Frames	Yes
Auto-negotiation for port speed and duplex	Yes
IEEE 802.1D MAC Bridging/STP (will interoperate)	Yes
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP, will interoperate)	Yes
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)	Yes
IEEE 802.1p Mapping to Priority Queue	Not supported
Edge Port / Port Fast	Yes
IEEE 802.1Q VLAN Tagging	Yes
Private VLAN	Not supported
IEEE 802.3ad Link Aggregation with LACP	Yes
Unicast/Multicast traffic balance over trunking port (dst-ip, dst-mac, src-dst-ip, src-dst-mac, src-ip, src-mac)	Yes (MAC only)
IEEE 802.1AX Link Aggregation	Yes
IEEE 802.3x Flow Control and back-pressure	Yes
IEEE 802.3 10Base-T	Yes
IEEE 802.3u 100Base-TX	Yes
IEEE 802.3z 1000Base-SX/LX	Yes
IEEE 802.3ab 1000Base-T	Yes
802.3ae 10 Gigabit Ethernet	Not supported
802.3 CSMA/CD Access Method and Physical Layer Specifications	Yes
IEEE 802.3af-2003/2009 POE	Yes
IEEE 802.3at POE+	Yes
Layer 3
Static Routing (Management Access only)	Yes
Security
Port Mirroring	Yes
Admin Authentication Via RFC 2865 RADIUS	Yes
Supports Fortified Access (FortiLink) mode	Yes
802.1x authentication with port-based assignment	Yes
Management
Telnet / SSH	Yes
HTTP / HTTPS	Yes
SNMP v1/v2c	Yes
SNTP	Yes
LLDP (802.1ab, Link Layer Discovery Protocol) (receive only)	Yes
Standard CLI and web GUI interface	Yes
Software download/upload: TFTP/FTP/GUI	Yes
RFC and MIB Support**
RFC 2571 Architecture for Describing SNMP Framework	Yes
DHCP Client	Yes
RFC 854 Telnet Server	Yes
RFC 2865 RADIUS	Yes
RFC 1643 Ethernet-like Interface MIB	Yes
RFC 3176 sFlow	Not supported
RFC 1213 MIB-II	Yes
RFC 1354 IP Forwarding Table MIB	Yes
RFC 2572 SNMP Message Processing and Dispatching	Yes
RFC 1573 SNMP MIB II	Yes
RFC 1157 SNMPv1/v2c	Yes
RFC 2030 SNTP	Yes

* Note: Check release notes for software feature availability.
** MIBs have been tested with Solarwinds NPM tool.

Specifications:

	FSR-112D-POE	FSR-124D
Ethernet
Ethernet interface	8x GE RJ45 (including 8x PoE/PoE+ capable ports), 4x GE SFP slots PoE is 802.3 af PoE+ is 802.3at	16x GE RJ45, 4x GE SFP slots, 8 shared media interfaces (GE RJ45 / GE SFP slots)
Console interface	DB9 connector	DB9 connector
Operating mode	Store and forward, L2/L3 wire-speed/non-blocking switching engine	Store and forward, L2/L3 wire-speed/non-blocking switching engine
MAC addresses	8K	8K
Copper RJ45 Ports
Speed	10/100/1000 Mbps	10/100/1000 Mbps
MDI/MDIX auto-crossover	Support straight or cross wired cables	Support straight or cross wired cables
Auto-negotiating	10/100/1000 Mbps speed auto-negotiation; Full and half duplex	10/100/1000 Mbps speed auto-negotiation; Full and half duplex
PoE+ (PSE)	IEEE 802.3at, up to 30 W per RJ45 GE port (up to 8 PoE+ ports)	N/A
SFP (pluggable) Ports
Port types supported	Gigabit fiber multimode, fiber single mode, fiber long-haul single mode 1000Base(SX/LX/ZX)	Gigabit fiber multimode, fiber single mode, fiber long-haul single mode 1000Base(SX/LX/ZX)
Fiber port connector	LC typically for fiber (depends on module)	LC typically for fiber (depends on module)
Power
Power input	Redundant input terminals
Input voltage range	44–57 VDC (for PoE model), 12–57 V (non-PoE model), 44–49 V input voltage can support PoE (802.3af) on all ports, 50–57 V input voltage can support PoE+ (802.3at) on all ports.	44–57V DC
Reverse power protection	Yes	Yes
Switch power	With 8x PoE+ sources, the switch itself draws 10.4 W	25.434 W (Maximum)
Heat dissipation	The switch dissipates 69.6 BTU with 8x PoE+ devices attached	117.49 BTU/h
Indicators
Power status indication	Indication of power input status	Indication of power input status
PoE indication	PoE port status	N/A
Ethernet port indication	Link and speed	Link and speed
Environmental and Compliances
Operating temperature range	-40–167°F (-40–75°C) cold startup at -40°C/°F)	-40–185°F (-40–85°C)
Storage temperature range	-40–185°F (-40–85°C)	-40–185°F (-40–85°C)
Humidity (non-condensing)	5–95% RH	10–95%
EMI	Radiated Emission: CISPR 22, EN55022 Class B Conducted Emission: EN55022 Class B	Radiated Emission: CISPR 22, EN55022 Class B Conducted Emission: EN55022 Class B
EMS	ESD: IEC61000-4-2 Radiated RF (RS): IEC61000-4-3 EFT: IEC61000-4-4 Surge: IEC61000-4-5 Conducted RF (CS): IEC61000-4-6	ESD: IEC61000-4-2 Radiated RF (RS): IEC61000-4-3 EFT: IEC61000-4-4 Surge: IEC61000-4-5 Conducted RF (CS): IEC61000-4-6
RoHS and WEEE	RoHS (Pb free) and WEEE compliant	Compliant
MTBF	> 30 years	> 30 years
Cooling	Fanless	Fanless
Mechanical
Ingress protection	IP30	IP40
Installation option	DIN-Rail mounting, wall mounting	Rack mount
Dimensions
Length x Width x Height	3.8 x 4.15 x 6.06 inches (96.4 x 105.5 x 154 mm)	17.40 x 13.86 x 1.73 inches (442 x 352 x 44 mm)
Weight	2.7 lbs (1230 g)	12.78 lbs (5.80 kg)
Warranty
Fortinet warranty	Limited lifetime*

* Fortinet Warranty Policy: http://www.fortinet.com/doc/legal/EULA.pdf
