Fortinet FortiSwitch T1024E
Secure, Simple, Scalable Ethernet Solution

Overview:

The Fortinet FortiSwitch-T1024E is a high-capacity Layer 2/3 switch compatible with FortiGate controllers, equipped with 24 x 10GBase-T slots and 2 x 100GE QSFP28 ports, along with dual AC power supplies, ideal for environments requiring high bandwidth and reliable connectivity.

• 10GBase-T Slots: 24 ports for high-speed copper-based networking.
• Ultra-Fast Uplinks: 2 x 100GE QSFP28 ports ensure superior connectivity and bandwidth management.
• Dual AC Power Supplies: Provides redundancy and reliability in power supply.
• FortiGate Compatibility: Enhanced security and centralized management through FortiGate integration.
• Layer 2/3 Support: Offers robust network configuration and optimization capabilities.

FortiSwitch Data Center Switches

FortiSwitch Data Center switches deliver a secure, simple, scalable Ethernet solution with outstanding throughput, resiliency, and scalability. Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements. FortiSwitch Data Center switches meet these challenges by providing a high-performance 10 GE, 40 GE, or 100 GE capable switching platform, with a low total cost of ownership. Ideal for Top of Rack server or firewall aggregation applications, as well as SD-Branch network core deployments, these switches are purpose-built to meet the needs of today’s bandwidth-intensive environments.

Security Fabric Integration Through FortiLink

The FortiSwitch Data Center Series supports FortiGate management through FortiLink, extending the Fortinet Security Fabric to the Ethernet port level. This link allows the same policies configured and applied to FortiGate interfaces to be applied to the FortiSwitch Ethernet ports, reducing complexity and decreasing management cost. With network security and access layer functions enabled and managed through a single console, centralized policy management, including role-based access and control, are easy to implement and manage. Users or devices can be authenticated against the same database and have the same security policy applied regardless of how or where they connect to the network.

Highlights

• High throughput Ethernet switch suitable for Top of Rack or large SD-Branch network deployments
• Compact 1 RU form factor
• 1GE, 2.5GE, 5GE, 10GE, 40GE, and 100GE capable access ports
• Fixed 10GE copper port option
• 40GE or 100GE capable uplinks with breakout support for 2x50G, 4x25G, 4x10G, and 4x1G
• 40 GE capability on the FortiSwitch-1048E.
• FortiGate management through FortiLink, enabling the Security Fabric
• Stackable up to 300 switches per FortiGate depending on model
• Dual hot-swappable power supplies for redundancy
• Supports wire-speed switching with both store and forward and cut-through forwarding modes

FortiSwitch is commonly managed and deployed through our FortiGate with FortiLink but can also be deployed and managed in non-FortiGate environments.

FortiGate

FortiGate management is accomplished through FortiLink, an innovative proprietary management protocol that allows our FortiGate security appliance to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric.

Non FortiGate

FortiSwitch can be managed without a FortiGate in a traditional stand-alone fashion with a native GUI and CLI interface. FortiSwitch Manager offers stacking and management at scale with a network design similar to a FortiGate-managed deployment. This design supports up to 2500 FortiSwitches but offers no traffic inspection or Security Fabric integration. Lastly, RESTful API’s offer additional configuration and management tools.

Hardware:

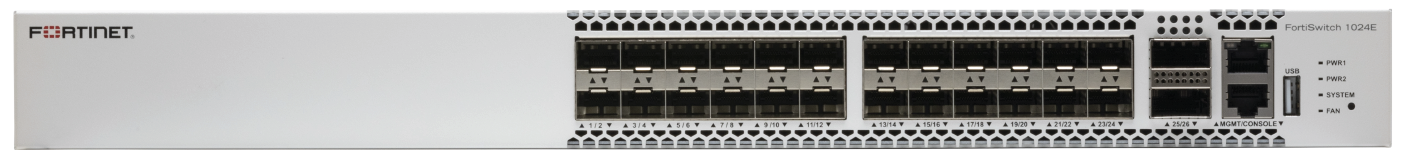

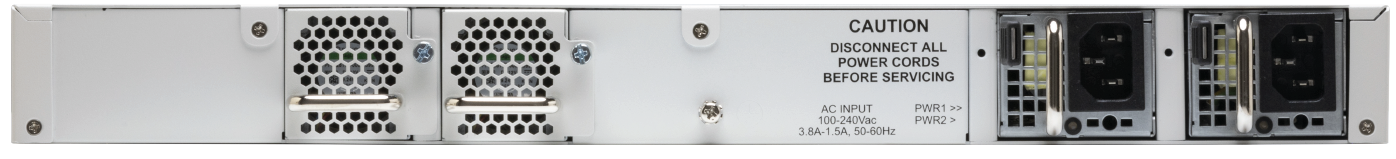

FortiSwitch 1024E

---

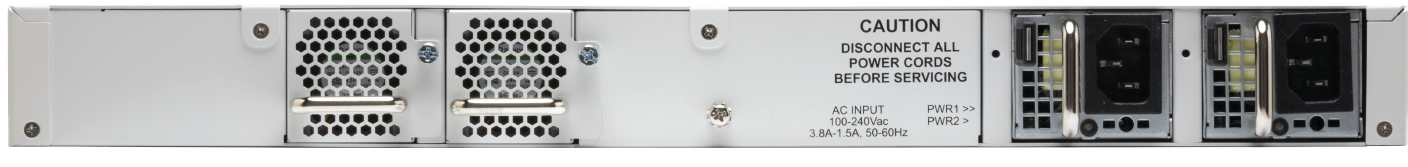

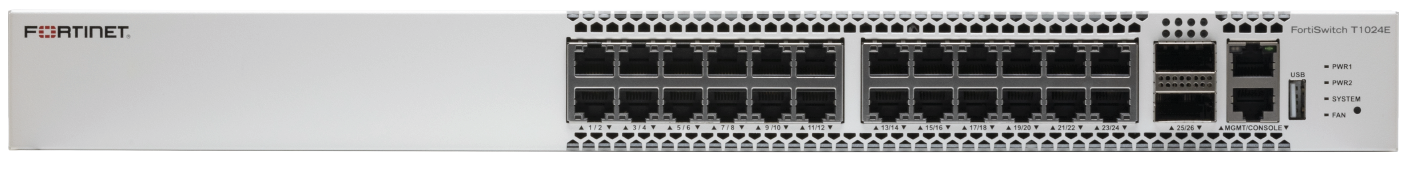

FortiSwitch T1024E

---

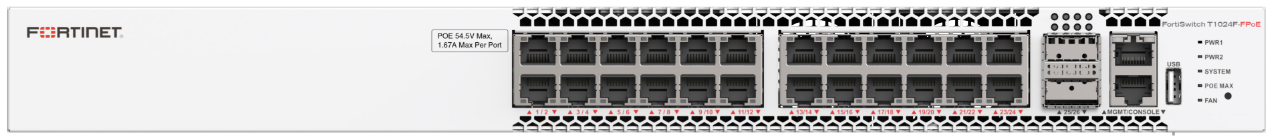

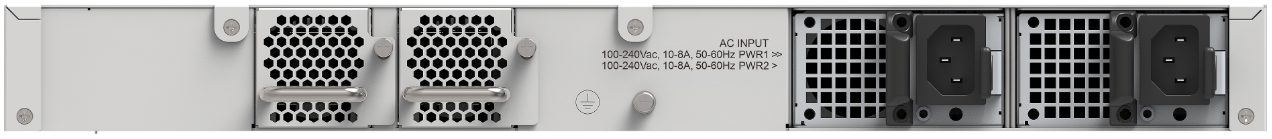

FortiSwitch T1024E-FPOE

Specifications:

	FortiSwitch 1024E	FortiSwitch T1024E	FortiSwitch T1024F-FPOE
Hardware Specifications
Total Network Interfaces (Proposed)	24x 10GE SFP+ ports and 2x 100GE QSFP28 ports	24x 1G/2.5G/5G/10GBASE-T ports and 2x 100GE QSFP28 ports	24x 1G/2.5G/5G/10GBASE-T ports and 2x 40GE / 100GE QSFP+ / QSFP28 ports
10/100/1000 Service Ports	1	1	1
RJ-45 Serial Console Port	1	1	1
Form Factor	1 RU Rack-Mount Appliance	1 RU Rack-Mount Appliance	1 RU Rack-Mount Appliance
Power over Ethernet (PoE) Ports	—	—	24 (802.3 af/at/bt type 4)
PoE Power Budget	—	—	1440 W
System Specifications
Switch Capacity (Duplex)	880 Gbps	880 Gbps	880 Gbps
Packets Per Second	1039 Mpps	1039 Mbps	1039 Mbps
MAC Address Storage	64,000	64,000	64,000
Network Latency	< 1us	< 1us	< 1us
VLANs Supported	4k	4k	4k
IPv4/IPv6 Routing	Yes	Yes	Yes
Link Aggregation Group Size	up to 24	up to 24	up to 24
Total Link Aggregation Groups	Up to number of ports	Up to number of ports	Up to number of ports
Queues/Port	8	8	8
Packet Buffers	8 MB	8 MB	8 MB
Memory	8GB DDR4	8GB DDR4	8GB DDR4
Flash	32MB NOR	32MB NOR	32MB NOR
Drive	8GB SSD	8GB SSD	8GB SSD
Dimensions
Height x Width x Length (in)	1.71 x 18.11 x 17.26	1.71 x 18.11 x 17.26	1.71 x 18.11 x 17.26
Height x Width x Length (mm)	43.5 x 460 x 438.5	43.5 x 460 x 438.5	43.5 x 460 x 438.5
Weight	14.5 lbs (6.58 kg)	14.4 lbs (6.54 kg)	16.53 lbs (7.5 kg)
Environment
Power Required	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz
Power Consumption (Max)	176 W	128 W	1660 W
Power Supply	Dual hot swappable AC	Dual hot swappable AC	Dual hot swappable AC
Heat Dissipation	599.13 BTU/h	436.48 BTU/h	5664 BTU/h
Operating Temperature	32°F to 113°F (0°C to 45°C)	32–104°F (0–40°C)	32°F to 113°F (0°C to 45°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)	-13–158°F (-25–70°C)	-40°F to 158°F (-40°C to 70°C)
Humidity	10–90% RH non-condensing	10–90% RH non-condensing	10–90% RH non-condensing
Air Flow	Front to Back	Front to Back	Front to Back
Noise Level	56 dBA	57.3 dBA	64.5 dBa
Mean Time Between Failures	> 10 years	> 10 years	> 10 years
Certification and Compliance
	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Warranty
Fortinet Warranty	Limited lifetime warranty on all models

Documentation:

Download the Fortinet FortiSwitch Data Center Series Datasheet (PDF).
