Fortinet FortiSwitch-80-POE
High Performance Gigabit and 10 Gigabit Ethernet Switches

Overview:

The FortiSwitch-80-POE provides full 15.4 Watts/port of Power over Ethernet (POE) in a cost-effective form factor for the distributed enterprise or small office. This eight-port GbE switch provides 62 Watts of POE power to four devices, the highest in the industry. You can connect wireless access points (such as the FortiAP product family), IP phones (such as the FortiFone product family), and IP cameras to the POE ports. The FortiSwitch-80-POE eliminates the need for additional POE injectors, simplifying your small office network while improving performance. The remaining four GbE ports can accommodate uplink ports as well as additional devices such as printers, and back office equipment.

Rightsize switch deployment

Fortinet's FortiSwitch family of Gigabit Ethernet (GbE) and 10 Gigabit switches delivers outstanding price, performance, and scalability to organizations with diverse operational needs. The FortiSwitch platforms are purpose-built to meet the Ethernet infrastructure and provisioning needs of today's network edge. You can scale up/out your operations performance needs with ease of use and low cost of ownership to meet the demands of bandwidth-intensive applications from small offices to large datacenters.

FortiSwitch-80-PoE Benefits:

• Delivers convenience and flexibility for smaller networks.
• Powers any device accepting PoE while reducing deployment costs and supporting uplink connections.

Features & Benefits:

Layer 2 Features

• Wire speed L2 switching performance 10/100/1000 BASE-T ports supporting auto-sensing, auto-negotiation
• MDI/MDIX Jumbo frame support: 9K Flow control
  • IEEE 802.3x full duplex mode
  • Back-pressure flow control in half duplex mode

Performance Specifications

• Forwarding mode: Store-and-forward

Network Protocols and Standards Compatibility

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TRX
• IEEE 802.3z 1000BASE-SX
• IEEE 802.3x Flow Control

Specifications:

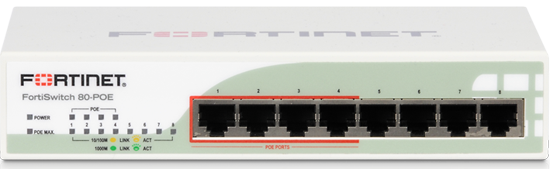

Front View

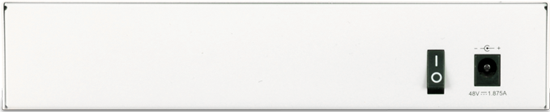

Back View

	FortiSwitch-80-PoE	FortiSwitch-248B-DPS	FortiSwitch-548B
Performance Specifications
Switch Type	Unmanaged	Managed	Managed
Switch Capacity	2 Gbps	176 Gbps	960 Gbps
MAC Address Storage	4,000	32,000	128,000
VLANs Supported	N/A	3965 configurable with support for VTP v1/v2	3965 configurable with support for VTP v1/v2
Link Aggregation Group Size	N/A	Up to 8 ports	Up to 8 ports
Total Link Aggregation Groups	N/A	8	8
Hardware Specifications
10/100/1000 Ports	8	48	0
1000/10000 Ports	0	4 Dual Speed SFP+ capable of 1-GbE and 10-GbE speeds	48 dual-speed SFP+ cages capable of 1G & 10 GbE speeds
10/100/1000 Service Ports	N/A	1	1
RJ-45 serial console Port	0	1	1
POE Ports	4 802.3af	0	0
POE Power Budget	62 Watts	N/A	N/A
Dimensions
Rack Mountable	Desktop Appliance	1 RU Rack-Mount Appliance	1 RU Rack-Mount Appliance
Height x Width x Length	1.5 in x 4.7 in x 7.5 in (3.8 cm x 12 cm x 19 cm)	1.67 in x 17.32 in x 10.8 in (4.24 cm x 44.00 cm x 27.44 cm)	1.7 in x 17.1 in x 15.5 in (4.28 cm x 43.5 cm x 39.37 cm)
Weight	1.64 lbs (.75 kg)	12.83 lbs (5.82 Kg)	16.5 lbs (7.5 Kg
Environment
Voltage Range	100-240V AC 50-60 Hz	100-240V AC 50-60 Hz	100-240V AC 50-60 Hz
Power Consumption	6.2 W (P0E off) 68.2W (POE on, based on 4 POE devices)	Up to 140 W	Up to 250 W
Power Supply	External power supply adaptor	Dual hot swappable AC	Dual hot swappable AC
Storage Temperature	32 - 122 deg F (0 - 50 deg C)
Operating Temperature	32 - 104 deg F (0 - 40 deg C)		32 - 113 F (0 - 45 C)
Humidity	5 - 95% RH non-condensing		80% maximum relative humidity
Compliance Directive	RoHS-Compliant

Deployment:

• Ports 1 - 4: 4 × 10/100/1000 Mbps Auto-MDIX RJ45 ports with POE enabled
• Ports 5 - 8: × 10/100/1000 Mbps Auto-MDIX RJ45 ports

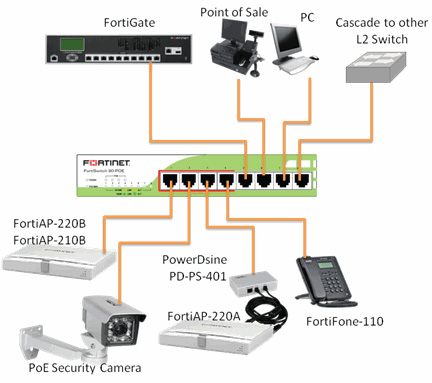

FortiSwitch 80-POE Deployment Example

Documentation:

Download the Fortinet FortiSwitch Series Datasheet (.PDF)
