Fortinet FortiSwitch 248E-FPOE
Secure Access Switches

Overview:

FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.

Single Management Framework

Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users. In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.

Simplify Network Deployment

The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.

Highlights

• Secure Access switches suitable for wire closet and desktop installations
• Devices are identified and users authenticated prior to being granted access to the network
• Centralized security management and reporting from FortiGate interface
• Up to 48 ports in a compact 1 RU form factor
• Stackable up to 256 switches per FortiGate depending on model
• Power over Ethernet capable, including PoE+
• Ideal for converged network environments; enabling voice, data and wireless traffic to be delivered across a single network

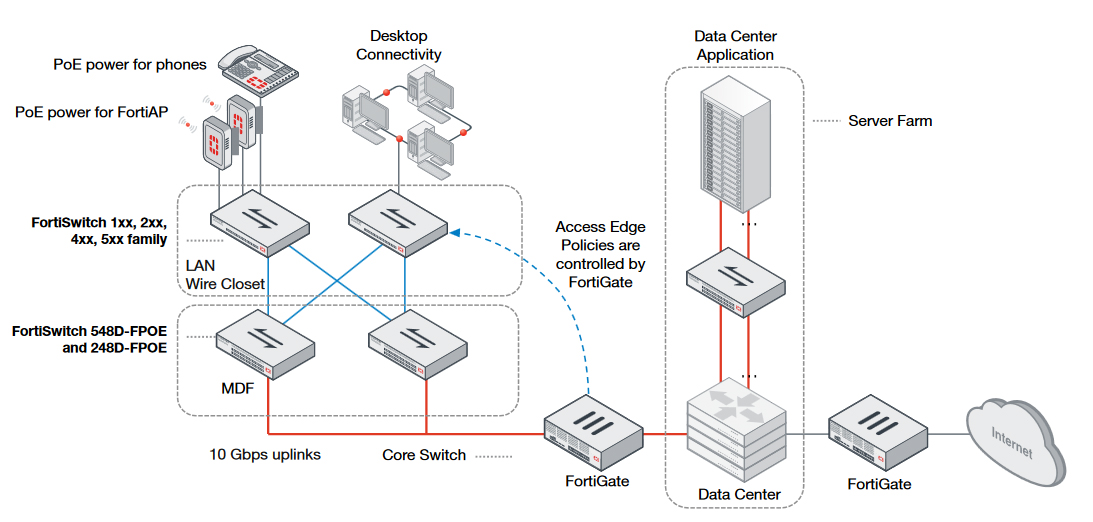

FortiSwitch Deployment Example:

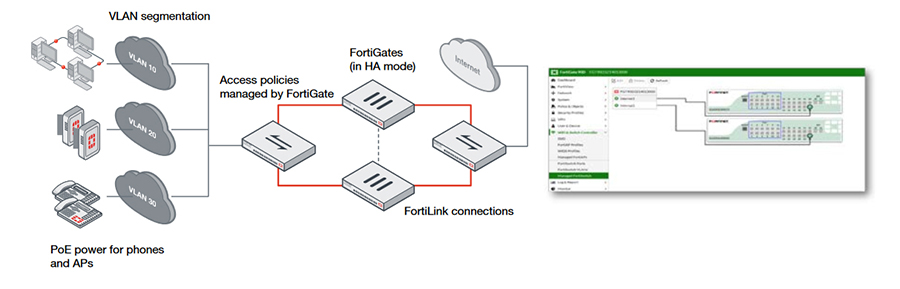

FortiLink Mode

The FortiSwitch Secure Access Switch series integrates directly into the FortiGate* Connected UTM, with switch administration and access port security managed from the familiar FortiGate interface. Regardless of how users and devices connect to the network, you have complete visibility and control over your network security and access through this single pane of glass, perfectly suited to threatconscious organizations of any size.

* Selected models only

Standalone Mode

Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements in the data center, pushing the limits of existing data center switching. FortiSwitch Data Center switches meet these challenges by providing a high performance 10 or 40 GE capable switching platform, with a low Total Cost of Ownership. Ideal for Top of Rack server or firewall aggregation applications, as well as enterprise network core or distribution deployments, these switches are purpose-built to meet the needs of today’s bandwidth intensive environments.

Specifications:

GENERAL
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	740
Capacity	Virtual interfaces (VLANs): 4000 Link aggregation groups: 26 Link aggregation groups: 8 MSTP instances: 15 Routing entries: 64 Host entries: 4000 ACL entries: 512
Jumbo Frame Support	Yes
Authentication Method	RADIUS
MAC Address Table Size	16000 entries
Authentication Method	RADIUS
Power Over Ethernet (PoE)	PoE+
Routing Protocol	RIP-2, VRRP, OSPFv2
Jumbo Frame Support	Yes
PoE Budget	740 W
Manufacturer	Fortinet
POWER DEVICE
Nominal Voltage	AC 120/230 V
Frequency Required	50 - 60 Hz
Power Consumption Operational	47.7 Watt
Type	internal power supply
NETWORKING
MAC Address Table Size	16000 entries
Subcategory	network hubs and switches
Subtype	Gigabit Ethernet
Form Factor	rack-mountable
Type	Switch
Advanced Switching	Layer 3
Features	1.5MB packet buffer, Bidirectional Forwarding Detection (BFD), Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Multi-Chassis Link Aggregation (MLAG), Multiple Spanning Tree Protocol (MSTP) support, Private VLAN, Rapid Spanning Tree Protocol (RSTP) support, Root Guard, SNTP support, Spanning Tree Protocol (STP) support, Storm Control, DHCP relay, Time Domain Reflectometry (TDR), Type of Service (ToS), auto-negotiation, flow control, port mirroring, sFlow, static routing, tagged VLAN, DHCP snooping, DiffServ Code Point (DSCP) support, Dynamic ARP Inspection (DAI), IGMP snooping, IP-MAC binding, Jumbo Frames support, LLDP support
Compliant Standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
Jumbo Frame Support	Yes
Ports Qty	52
Manageable	Yes
Routing Protocol	OSPFv2, RIP-2, VRRP
PoE Budget	740
Remote Management Protocol	CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP, Telnet
Power Over Ethernet (PoE)	PoE+
CAMERA
Installed Size	128 MB
MISCELLANEOUS
MTBF	>10 sec
Height (Rack Units)	1 m
Color Category	white
MTBF	>10 years
INTERFACE PROVIDED
Qty	1, 4, 48
Comments	PoE+
ENVIRONMENTAL PARAMETERS
Min Storage Temperature	-4 °F
Max Storage Temperature	158 °F
Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	10 - 90%
HEADER
Brand	Fortinet
Product Line	Fortinet FortiSwitch
Model	248E-FPOE
Packaged Quantity	1
DIMENSIONS & WEIGHT
Width	17.3 in
Depth	16.1 in
Height	1.7 in
Weight	13.45 lbs
PORTS
Type	10/100/1000 (PoE+)
Qty	48
PORTS (2ND)
Type	Gigabit SFP
Qty	4
PERFORMANCE
Type	latency, packet transfer capability, switching capacity
Value	1 µs, 104 Gbps, 155 Mpps
CAPACITY
Type	ACL entries, MSTP instances, host entries, link aggregation groups, routing entries, virtual interfaces (VLANs)/td>
Value	15, 26, 4000, 512, 64, 8
SERVICE & SUPPORT
Type	limited lifetime warranty
SERVICE & SUPPORT DETAILS
Type	limited warranty
Full Contract Period	lifetime
GENERAL
Manufacturer	Fortinet

Documentation:

Download the Fortinet FortiSwitch E-Series Datasheet (PDF).
