Fortinet FortiSwitch 2048F
Secure Access Switches

Overview:

The Fortinet FortiSwitch-2048F is a Layer 2/3 switch compatible with FortiGate controllers, featuring a high-performance configuration of 48x 25G SFP28, 8x 100G QSFP28, and 2x 10G SFP+ ports, complete with dual AC power supplies for optimal reliability and scalability in high-demand environments.

• High-Density Connectivity: 48x 25G SFP28 ports for extensive high-speed network connections.
• Ultra-Fast Uplinks: 8x 100G QSFP28 ports for maximum bandwidth and superior data transfer rates.
• Additional Flexibility: 2x 10G SFP+ ports for additional connection options.
• Dual Power Supplies: Ensures continuous operation with redundant power sources.
• FortiGate Integration: Fully manageable via FortiGate for comprehensive security and network management.

FortiSwitch Data Center Switches

The FortiSwitch campus core and data center family excel in performance, security, and resiliency, making them the optimal choice for both campus core and data center networking needs. Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements. The proliferation of virtualization, cloud computing, and the increasing volume of data generated by users and IoT devices has necessitated dense high-bandwidth Ethernet networking and aggregation. In these environments, the paramount concerns are data security, performance, and resiliency. These dynamic settings demand efficient network management, monitoring, and optimization efforts while simplifying overall network complexity. The FortiSwitch campus core and data center switching architecture empowers network administrators with the requisite performance, control, and manageability for these demanding scenarios. Its seamless security integration and userfriendly management interface establish a robust foundation for your next-generation campus core or data center.

Secure Networking through FortiLink

FortiLink is an innovative proprietary management protocol, enabling seamless integration and centralized management between a FortiGate Next-Generation Firewall and the FortiSwitch Ethernet switching platform. FortiLink transforms the FortiSwitch into a logical extension of the FortiGate, streamlining the management of the both Ethernet data center and network security functions via unified interface. Offering high performance with low latency, FortiGate NGFW and FortiSwitch campus core and data center switching can support the demands of highspeed traffic inspection and segmentation.

Highlights

• High throughput with low latency
• Standalone or Integrated deployment options
• Zero-touch deployment
• On premise and cloud based management
• Intuitive management
• Access control and policy enforcement
• Scalable and flexible
• Dual hot-swappable power supplies
• Up to 48 access ports in a compact 1 RU form

Segmentation and Policy Enforcement

FortiSwitch campus core and data center switching architecture can augment and further the security policies at the FortiSwitch access switch layer and enable high speed data traffic segmentation through FortiLink. This process grants IT administrators control over traffic within segments and limits threat exposure. Policy enforcement is simplified, while next-generation firewall (NGFW)-level policies ensure effective security at the core of your network.

Secure Access Service Edge (SASE)

This FortiSwitch enterprise architecture offers a built-in foundation for zero-trust network access (ZTNA) and secure access service edge (SASE), allowing you the flexibility to easily deploy the type and level of security you need at the edge of your network.

Operational Simplicity

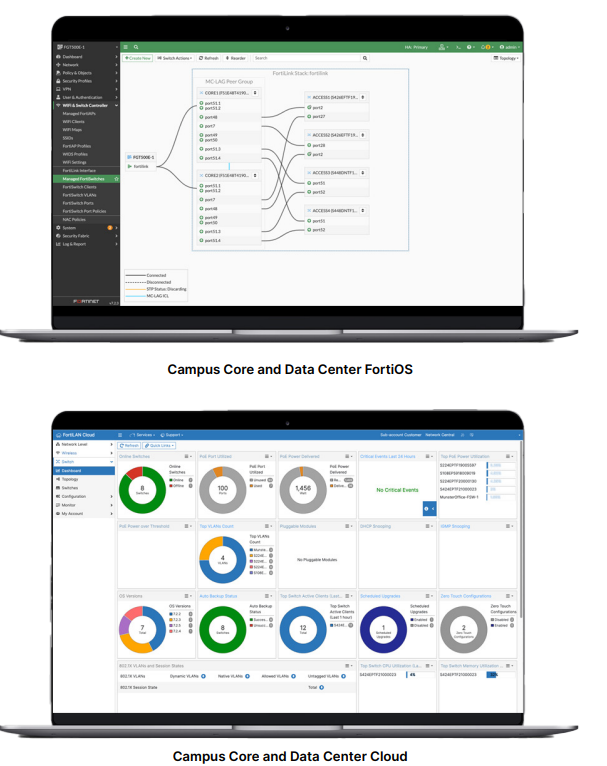

FortiSwitch switching architecture enables secure deployment and management within minutes through zero-touch deployment. Whether in standalone or FortiLink mode, automation and orchestration offer intuitive workflows and unified views for provisioning, management, and optimization, accessible through both FortiCloud and on-premises management.

Centralized management delivers a unified, single view of both the LAN and security. This provides a consistent user experience for optimal operational efficiency, simplifying management, optimization, and troubleshooting. The result is a shorter mean time to repair both network and security issues.

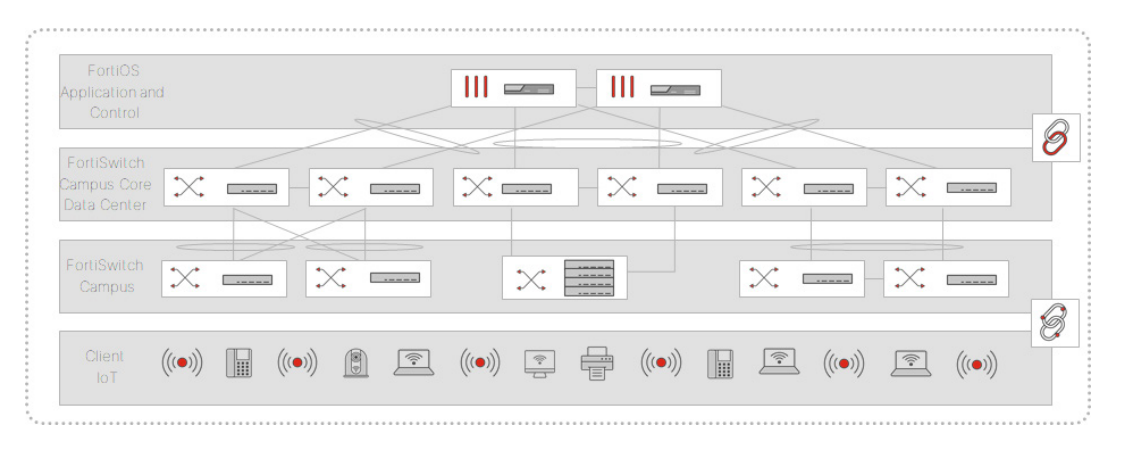

Scalable Flexible Campus Core and Data Center

FortiSwitch enterprise architecture scales effortlessly to meet the demands of today’s nextgeneration campus cores and data centers, all without compromising on security. Supporting up to 48 ports within a compact 1 RU form factor, FortiSwitch minimizes rack space usage while delivering the requisite performance and scalability. Each switch series in the campus core and data center family offers models that enable the administrator to choose the appropriate media for their environment through a wide range of Fortinet transceivers. This feature also applies to the uplinks, with speeds up to 100 GE supporting various media.

Hardware:

FortiSwitch 2048F

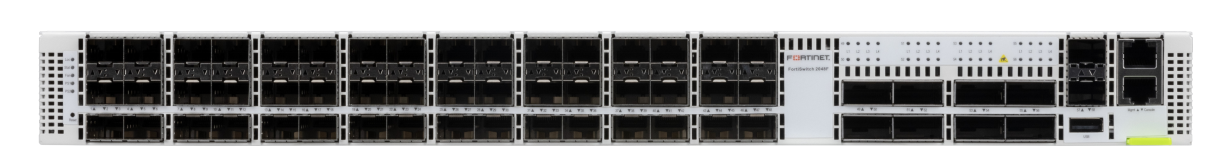

Front View

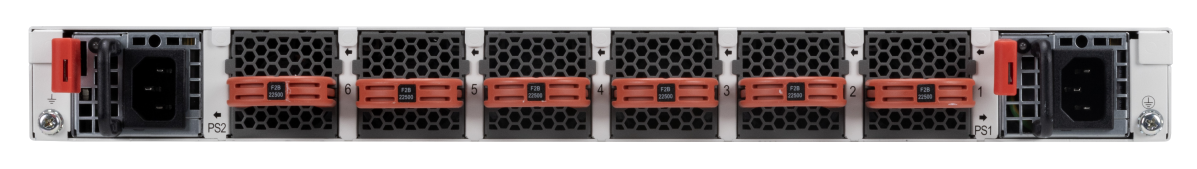

Rear View

Specifications:

	FortiSwitch 1024E	FortiSwitch 2048F
Hardware Specifications
Total Network Interfaces (Proposed)	24x 10GE SFP+ ports and 2x 100GE QSFP28 ports	48x 1GE/10GE/25GE SFP28 ports 2x 1GE/10GE SFP+ ports 8x 40GE / 100GE QSFP28 ports
10/100/1000 Service Ports	1	1
RJ-45 Serial Console Port	1	1
Form Factor	1 RU Rack-Mount Appliance	1 RU Rack-Mount Appliance
System Specifications
Switch Capacity (Duplex)	880 Gbps	4000 Gbps
Packets Per Second	1039 Mpps	4000 Mbps
MAC Address Storage	64,000	96,000
Network Latency	< 1us	< 1us
VLANs Supported	4k	4k
Link Aggregation Group Size	up to 24	up to 48
Total Link Aggregation Groups	Up to number of ports	Up to number of ports
Queues/Port	8	8
Packet Buffers	8 MB	32 MB
Memory	8GB DDR4	8GB DDR4
Flash	32MB NOR	8GB NAND
Drive	8 GB SSD	32 GB SSD
Dimensions
Height x Width x Length (in)	1.71 x 18.11 x 17.26	1.71 x 18.11 x 17.26
Height x Width x Length (mm)	43.5 x 460 x 438.5	43.5 x 460 x 438.5
Weight	14.5 lbs (6.58 kg)	21.78 lbs (9.88 kg)
Environment
Power Required	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz
Power Consumption (Max)	176 W	175,7 W
Power Supply	Dual hot swappable AC	Dual hot swappable AC
Operating Temperature	32–104°F (0–40°C)	32–104°F (0–40°C)
Storage Temperature	-13–158°F (-25–70°C)	-13–158°F (-25–70°C)
Humidity	10–90% RH non-condensing	10–90% RH non-condensing
Air Flow	Front to Back	Front to Back
Mean Time Between Failures	> 10 years	> 10 years
Certification and Compliance
	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Warranty
Fortinet Warranty	Limited lifetime warranty on all models

Documentation:

Download the Fortinet FortiSwitch Data Center Series Datasheet (PDF).
