Fortinet FortiManager-400G
Automation-Driven Centralized Management

Overview:

FortiManager provides Automation-Driven Centralized Management of your Fortinet devices from a single console for full administration and visibility of your network devices through streamlined provisioning and innovative automation tools.

Integrated with Fortinet’s Security Fabric, the advanced security architecture and FortiManager’s Automation Driven Network Operations capabilities provide a solid foundation to secure and optimize your network security.

• Single-Pane Management streamlines centralized policy and object management, automatic revision history and control, and enhanced RBAC features for script management and IPS management with role separation.
• Security Fabric Automation simplifies the ZTP deployment process for SD-Branch (FortiGates and access devices) with powerful templates that directly utilize metavariables for scalable provisioning to thousands of sites.
• NOC Cloud Services offers the FortiManager platform as a service with new management extensions that can be pulled and installed from the cloud.

Key Features:

• Centrally manage thousands of FortiGates, policies and objects as well as FortiSwitches, FortiAP,and FortiExtender. Provide signature updates to FortiGate, FortiMail, FortiSandbox, and FortiClient
• Centralized distribution of security content and signatures through the use of the built-in FortiGuard module
• Use templates for firmware upgrades and zero-touch provisioning for Secure SDWAN, setting up IPSec VPN, static route, and FortiExtender for fast and easy configuration
• Reduce complexity and costs by leveraging automated REST API, scripts, connectors, and automation stitches
• Automate workflows and configurations for Fortinet firewalls, switches, and wireless infrastructure
• Separate customer data and manage domains leveraging ADOMs to be compliant and operationally effective
• High Availability to automate backups for up to five nodes with streamlined software and security updates for all managed devices

Highlights:

Single Pane Management

FortiManager’s Single Pane Management provides centralized management and provisioning strategy built around Fortinet’s Security Fabric that tightly integrates an organization’s network infrastructure and security architecture to apply access control, segmentation and consistent protection of devices, applications and users

• Device Configuration and Provisioning
• Multi-Tenancy and Role-Based Administration
• Security Policy and Objects Management
• Secure SD-WAN

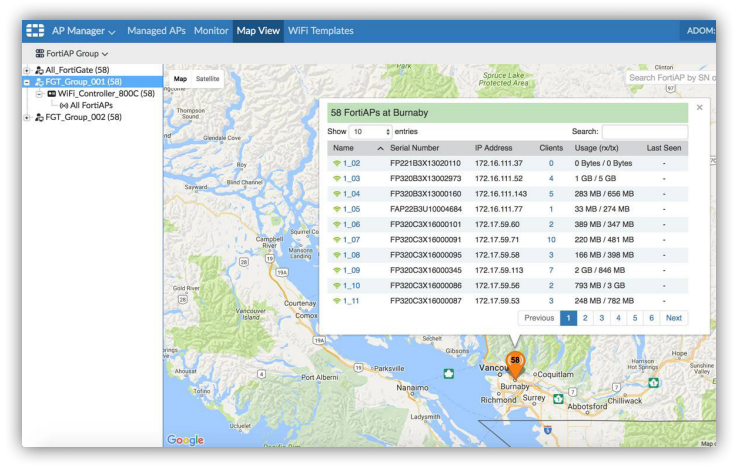

• Manage and Monitor with Deep Visibility
• FortiManager High Availability (HA)

Security Fabric Automation

• Network and Security Operations Visibility (NOC/SOC)
• Automation and Connectors

NOC Cloud Services

• Management Extensions
• Dynamic Cloud Security
• Security Fabric and Third Party Integration

VIRTUAL OFFERINGS

• FortiManager VM

FortiManager Virtual Machines are a virtual version of the hardware appliance and are designed to run on many virtualization platforms, offering all the latest features of the FortiManager appliance. They allow organizations to centrally manage any number of Fortinet Network Security Fabric devices and scale from several to thousands, supporting centralized management, best practices compliance, and automated workflows to deliver superior protection against threats. FortiManager VMs are available in both a subscription and perpetual offering.

• FortiManager VM-S
• FortiManager VM

Specifications:

	FortiManager 200G	FortiManager 300F	FortiManager 400G
Capacity and Performance
Devices/VDOMs (Maximum)1	30	100	150
Sustained Log Rates	50	50	50
GB/Day	2	2	2
Hardware Specifications
Storage Capacity	8 TB (2 x 4 TB)	16 TB (4 x 4 TB)	32 TB (8x 4 TB)
Usable Storage (After RAID)	4 TB	8 TB	24 TB
RAID Levels Supported	RAID 0/1	RAID 0/1,1s/5,5s/10	RAID 0/1,1s/5,5s/6,6s/10/50/60
Default RAID	1	10	50
Hardware Form Factor	1 RU Rackmount	1 RU Rackmount	2 RU Rackmount
Total Interfaces	4xRJ45 GE	4 x GE RJ45, 2 x SFP	4 x GE RJ45, 2 x SFP
Console Port	RJ45	RJ45	RJ45
Removable Hard Drives	No
Redundant Hot Swap Power Supplies	No	*
Chassis Management
Dimensions
Height x Width x Length (inches)	1.73 x 17.24 x 16.38	1.75 x 17.44 x 22.16	3.5 x 17.5 x 22.2
Weight	22.5 lbs (10.2 kg)	28.6 lbs (13.0 kg)	35.27 lbs (16 kg)
Environment
AC Power Supply	100–240V AC, 50-60 Hz	100–240V AC, 50-60 Hz	100–240V AC, 50-60 Hz
Power Consumption (Average / Maximum)	90.1W / 99 W	108W / 186W	140 / 182 W
Heat Dissipation	337.8 BTU/h	634 BTU/h	621 BTU/h
Operating Temperature	32 - 104° F (0 - 40° C)	32 - 104° F (0 - 40° C)	41 - 95° F (5 - 35° C)
Storage Temperature	-13–167ºF (-25–75ºC)	-31–158ºF (-35–70ºC)	-4–167°F (-20–75°C)
Humidity	20 to 90% non-condensing	20 to 90% non-condensing	5 to 95% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)
Compliance
Safety Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

¹ Each Virtual Domain (VDOM) operating on a physical or virtual device counts as one (1) licensed network device
* FGT 7000 Series is supported on all FMG models and does not require Chassis Management.

Documentation:

Download the Fortinet FortiManager Series Datasheet (PDF).
