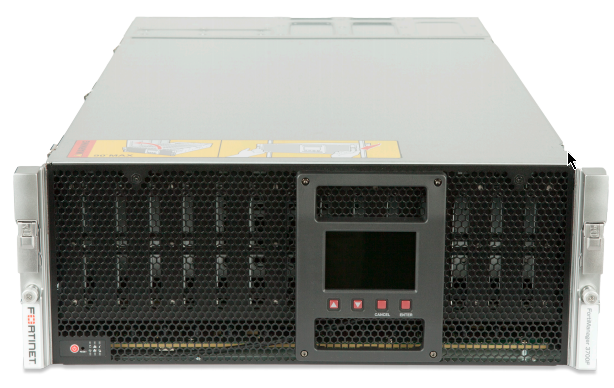

Fortinet FortiManager 3700F
Centralized Management for Fortinet Security Networks

Overview:

With today’s challenging cybersecurity landscape, Security teams are falling behind due to resource constraints and an inability to keep up with the latest threats. Complexity and the unknown diminish security effectiveness – NOC-SOC helps to rejuvenate and strengthen your Security Posture. Centralized Security Management helps companies Operationalize and Automate Security to improve response time and awareness, and Fortinet’s Security Fabric is the foundation of that new approach. FortiManager provides one console to manage your network, giving you full control of your Fortinet devices with enterprise-class management.

Centralized Security Management

FortiManager’s NOC-SOC Operations Management provides Secure Operationalized Visibility across your Fortinet Security Fabric which enables real time security monitoring, threats and vulnerabilities identification and remediation.

Quantifiable Security solution information such as Security Maturity and Security Ratings produce measureable accountability which you can use to determine your security preparedness internally and compare it to that of your industry peers.

Workflow Integration with ITSM (ServiceNow) to mitigate security events and apply configuration changes and policy updates.

Single Pane-of-Glass Management

Fortinet Security Fabric delivers sophisticated security management for unified, end-to-end protection. Deploying Fortinet-based security infrastructure to battle advanced threats, and adding FortiManager to provide single-pane-of-glass management across your entire extended enterprise provides insight into network-wide traffic and threats.

FortiManager offers enterprise-class features to contain advanced threats. FortiManager also delivers the industry’s best scalability to manage up to 100,000 Fortinet devices. FortiManager, coupled with the FortiAnalyzer family of centralized logging and reporting appliances, provides a comprehensive and powerful centralized management solution for your organization.

Key Features:

Highlights

Central SD-WAN Deployment and Monitoring

Centrally monitor SD-WAN performance. Monitor your devices on Map view with color coded icons and mouse over to view health performance statistics for each SD-WAN link member. Table View provides more granular information for each SD-WAN link member, including link status, application performance and bandwidth usage.

Managed FortiAP, FortiSwitch & FortiExtender

Centrally manage wireless networks, create wifi templates, AP profiles, SSIDs and WIDS. Manage entire FortiSwitch infratructure.

Configuration and Settings Management

Collectively configure the device settings, objects and policies across your network from a single user interface. The VPN manager simplifies the deployment and allows centrallyprovisioned VPN community and monitoring of VPN connections on Google Map. FortiAP Manager allows configuring, deploying and monitoring FortiAPs from a single console with Google Map view. The FortiClient Manager allows centralized configuration, deployment, and monitoring of FortiClients.

Integration & Security Fabric

Integration with ITSM (ServiceNow) to mitigate security events and apply configuration changes and policy updates. Seamless integration with FortiAnalyzer appliances provides in-depth discovery, analysis, prioritization and reporting of network security events

Workflow for Audit and Compliance

FortiManager enables you to review, approve and audit policy changes from a central place, including automated processes to facilitate policy compliance, policy lifecycle management, and enforced workflow to reduce risk for policy changes.

Monitor and Report for Deep Visibility

Access vital security and network statistics, as well as realtime monitoring and integrated reporting provides visibility into network and user activity. For more powerful analytics, combine with a FortiAnalyzer appliance for additional data mining and graphical reporting capabilities.

Locally Hosted FortiGuard Labs Security Content

Host security content locally for greater control over security content updates and improved response time for rating database. Includes support for: Application Control and Intrusion Prevention updates, Vulnerability Management, Antispam, Antivirus and Web Filtering updates.

Multi-Tenancy and Hierarchical — Administrative Domains (ADOMs)

FortiManager provides a hierarchical objects database to facilitate re-use of common configurations and a multi-tenancy architecture to serve multiple customers. The graphical interface makes it easy to view, create and manage ADOMs. You can use ADOMs to manage independent security environments, each ADOM with its own security policies and configuration database. FortiManager enables you to group devices logically or geographically for flexible management, and the zerotouch deployment uses templates to provision devices for quick mass deployment. Define global objects such as Firewall Objects, Policies and Security Profiles to share across multiple ADOMs. Granular permissions allow assigning ADOMs, devices and policies to users based on role and duties.

API for Automation and Orchestration

RESTful API allows MSSPs/large enterprises to create customized, branded web portals for policy and object administration. Automate common tasks such as provisioning new FortiGates and configuring existing devices. Join Fortinet Developer Network (FNDN) to access exclusive articles, how-to content for automation and customization, community-built tools, scripts and sample code.

Specifications:

	FortiManager 200F	FortiManager 300F	FortiManager 400E	FortiManager 2000E	FortiManager 3000F	FortiManager 3700F
Capacity and Performance
Devices/VDOMs (Maximum)1	30	100	300	1,200	4,000+	10,000+
Sustained Log Rates	50	50	50	50	150	150
GB/Day	2	2	2	2	10	10
Hardware Specifications
Storage Capacity	8 TB (2 x 4 TB)	16 TB (4 x 4 TB)	24 TB (8x 3 TB)	36 TB (12x 3 TB)	48 TB (16x 3 TB)	240 TB (60x 4 TB)
Usable Storage (After RAID)	4 TB	8 TB	21 TB	30 TB	42 TB	216 TB
RAID Levels Supported	RAID 0/1	RAID 0/1/5/10	RAID 0/1/5/6/10/50/60	RAID 0/1/5/6/10/50/60	RAID 0/1/5/6/10/50/60	RAID 0/1/5/6/10/50/60
Default RAID	1	10	50	50	50	50
Hardware Form Factor	1 RU Rackmount	1 RU Rackmount	2 RU Rackmount	2 RU Rackmount	3 RU Rackmount	4 RU Rackmount
Total Interfaces	2xRJ45 GE, 2xSFP	4 x GbE RJ45, 2 x SFP	2x GE	4x GE, 2x 10 GE SFP+	4x GE, 2x 10 GE SFP+	2x10GbE SFP+, 2x1GbE RJ-45
Console Port	RJ45	RJ45	DB-9	DB-9	DB-9	DB9
Removable Hard Drives	No
Redundant Hot Swap Power Supplies	No	No
Chassis Management
Dimensions
Height x Width x Length (inches)	1.75 x 17.0 x 15.0	1.75 x 17.44 x 22.16	3.5 x 17.2 x 25.2	3.5 x 17.2 x 25.6	5.2 x 17.2 x 25.5	7 x 17.2 x 30.2
Height x Width x Length (cm)	4.4 x 43.2 x 38	4.4 x 44.3 x 56.3	8.9 x 43.7 x 64.8	8.9 x 43.7 x 64.8	13.2 x 43.7 x 64.8	17.8 x 43.7 x 76.7
Weight	18.9 lbs (8.6 kg)	28.6 lbs (13.0 kg)	52 lbs (23.6 kg)	58 lbs (26.3 kg)	76 lbs (34.5 kg)	120 lbs (54.6 kg)
Environment
AC Power Supply	100-240V 60-50Hz	100–240V AC, 50-60 Hz	100–240V AC, 50-60 Hz	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum)	65W / 130W	108W / 186W	192.5W / 275W	293.8W / 354W	449W / 541W	850W / 1423.4W
Heat Dissipation	445 BTU/h	634 BTU/h	920 BTU/h	1209 BTU/h	1846.5 BTU/h	4858 BTU/h
Operating Temperature	32 - 104° F (0 - 40° C)	32 - 104° F (0 - 40° C)	41 - 95° F (5 - 35° C)	50–95°F (10–35°C)	50–95°F (10–35°C)	50–95°F (10–35°C)
Storage Temperature	-31–158ºF (-35–70ºC)	-31–158ºF (-35–70ºC)	-40 - 140° F (-40 - 60° C)	-40–158°F (-40–70°C)	-40–158°F (-40–70°C)	-40–158°F (-40–70°C)
Humidity	20 to 90% non-condensing	20 to 90% non-condensing	8 to 90% non-condensing	8 to 90% non-condensing	8 to 90% non-condensing	8 to 90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)	Up to 9,842 ft (3,000 m)	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)
Compliance
Safety Certifications	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST

¹ Each Virtual Domain (VDOM) operating on a physical or virtual device counts as one (1) licensed network device
* FGT 7000 Series is supported on all FMG models and does not require Chassis Management.

Documentation:

Download the Fortinet FortiManager Series Datasheet (PDF).
