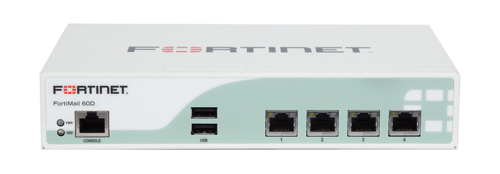

Fortinet FortiMail 60D
Comprehensive Email Security

Fortinet FortiMail 60D

Sorry, this product is no longer available. Please Contact Us for a replacement.

Click here to jump to more pricing!

Overview:

Proven Security

FortiMail appliances and virtual appliances are proven, powerful email security platforms for any size organization — from small businesses to carriers, service providers, and large enterprises. Purpose-built for the most demanding messaging systems, FortiMail appliances employ Fortinet’s years of experience in protecting networks against spam, malware, and other message-borne threats.

Intelligent Protection

FortiMail prevents your email systems from becoming threat delivery systems. Its inbound filtering engine blocks spam and malware before it can clog your network and affect users. Its outbound inspection technology prevents other antispam gateways from blacklisting your users by blocking outbound spam and malware, including mobile traffic.

Enforce secure content delivery with FortiMail Identity-Based Encryption (IBE), S/MIME, or TLS email encryption options. Prevent accidental and intentional loss of confidential data using predefined HIPAA, GLBA, SOX or customized dictionaries.

High Performance and Unmatched Flexibility

FortiMail appliances provide high-performance email routing and security by utilizing multiple high-accuracy antispam filters. When coupled with industry leading real-time antivirus and antispyware protection from FortiGuard Services, FortiMail provides you with extremely fast and accurate email security that won’t affect end users or delay their communications. FortiMail can be deployed in the cloud or on premises and gateway, inline and server modes in a range of appliance or virtual machine form factors. This flexibility allows you to deploy FortiMail in the mode that best suits your environment.

Advanced Threat Protection

In addition to FortiGuard antivirus, FortiMail supports on-board code emulation to identify and block suspicious files based on their intended behavior. Optional cloud-based or on-premise “sandboxing” provide a full, contained, run-time environment to thwart the highly targeted and tailored attacks that increasingly bypass traditional defenses. Rich threat intelligence, actionable insight and the option to share information with FortiGuard Labs in order to receive automated protection updates help organizations reduce the risk of compromise and breach from such sophisticated attacks.

Comprehensive Email Security

Scalable solution from SME to the largest ISP and carrier networks
Advanced Threat Outbreak Protection methods to protect against new emerging and targeted attacks
Apply Identity-Based Encryption in both push and pull methods
Data Leak Prevention, and Policy- Based Encryption and Archiving enable compliance with SOX, GLBA, HIPAA, PCI DSS
Enforce email and security policies at a granular level
Receive real-time security updates from FortiGuard® Services
Industry leading price/performance
Flexible deployment modes and architectures support the widest range of organizations
Multi-layer threat detection delivers highest level of user protection
Scalable solution delivers long term investment protection

Key Features & Benefits

Flexible Deployment Options	FortiMail can be deployed in gateway, transparent mode and as a fully featured mail server. With hardware, VM and cloud form factors, FortiMail is flexible enough to cater to every customer requirement.
Apply Data Loss Prevention and Identity-Based Encryption	Detect sensitive information using defined data patterns and ensure secure delivery with no additional hardware or software to install, no user provisioning, no recipient pre-enrollment.
Prevent Phishing and Other Advanced Threats	Apply embedded URL inspection, top rated antimalware and optional sandbox integration to detect highly targeted attacks.
Identify and Block Spamming Endpoints	Carriers and Service Providers, prevent blacklisting of legitimate subscribers by identifying and blocking endpoints sending spam.
No Per-User or Per-Mailbox Pricing	Complete, multi-layered antivirus, antispam, antispyware and antiphishing protection for an unlimited number of users. Greatly reduces TCO.

Features & Benefits:

System

Transparent, Gateway and Server Mode Deployment Options
Flexible Interface Configuration Including VLAN and Redundant Interface Support
Inbound and Outbound Inspection
Multiple Email Domains with Domain Level Customization
IPv6 and IPv4 Address Support
Virtual Hosting using Source and/or Destination IP Address Pools
Policy-Based Mail Archiving with Remote Storage Options
SMTP Authentication Support via LDAP, RADIUS, POP3 and IMAP
LDAP-Based Email Routing
Per User Inspection using LDAP Attributes on a Per Policy (Domain) Basis
Comprehensive Webmail Interface for Server Mode Deployments and Quarantine Management
Mail Queue Management
Multiple Language Support for Webmail and Admin Interface
Email RFC Compliance
Maintains Local Sender Reputation List Based on:
– Sender Policy Framework (SPF)
– Domain Keys Identified Mail (DKIM

Antivirus

FortiGuard Antivirus Service
Quarantine, Repackage, Replace, and Monitor Actions
Nested Archive Scanning
Malware Detection
On-board code emulation
Integration with FortiSandbox and FortiGuard Analytics for advanced threat protection
– Emails are queued by FortiMail whilst FortiSandbox inspects the email contents for threats

Content-Based Protection

Dictionary-based filtering in inbound or outbound direction
Predefined HIPAA, GLBA and SOX dictionaries
Filter by Attachment File Type
Banned Word Filtering

Management, Logging, and Reporting

QuickStart Setup Wizard
Basic / Advanced Management Modes
Role-Based Administration Accounts Per Domain
Comprehensive activity and incident logging and reporting
Configuration Change and Management Event Logging
Built-in Reporting module
Centralized logging and reporting with FortiAnalyzer
Centralized Quarantine for large scale deployments
SNMP Support using Standard and Private MIB with Threshold-Based Traps
External or Local Storage Server Support, including iSCSI devices
External Syslog support

High Availability (HA)

Supported in all Modes
Active-Passive Mode
Configuration Synchronization Mode (Configuration Master and Slave Mode)
Quarantine and Mail Queue Synchronization
Device Failure Detection and Notification
Link Status, Failover and Redundant Interface Support

Denial-of-Service Protection

Inbound and Outbound Message Rate Limiting
Recipient Address Attack
Reverse DNS Check (Anti-Spoofing)
Forged Sender Address Encryption
Identity-based Encryption for Push/Pull Delivery of Encrypted Messages
S/MIME Support for Gateway-to-

Gateway Encryption

Support for strong-crypto protocols including HTTPS, SMTPS, SSH, IMAPS and POP3S

Antispam Profile

FortiGuard Antispam Service
– Global Sender Reputation
– Spam and phishing URIs and email addresses
– Spam Object checksums
– Dynamic Heuristic Rules
Outbreak Protection
Greylisting for IPv4, IPv6 addresses and email accounts
Local Sender Reputation (IPv4, IPv6 and End Point ID-based)
Behavioral Analysis
Deep Email Header Inspection
Flexible Action and Notification Profiles
Third party Spam URI and Real-Time Blacklists (SURBL/RBL)
Full category FortiGuard URL Filtering
Quarantining, tagging and end user reporting
PDF Scanning and Image Analysis
Black/White Lists at Global, Domain, and User levels
Bayesian Statistic Filtering
Newsletter detection

Server Mode Specific Features

SMTP, IMAP, and POP3 Email Services
SMTP over SSL Support
Disk Quota Policy Support for User Accounts
Secure WebMail Client Access
User, Group and Alias List Support
Local Account and LDAP Authentication
WebMail Calendar
Email Auto Reply and Forwarding Preference
Address Book Synchronize with LDAP

Deployment Options:

Choose from three modes of deployment — Transparent, Gateway, or Server mode – to meet your specific email security requirements, while minimizing infrastructure changes and service disruptions:

Gateway Mode: Provides inbound and outbound proxy mail transfer agent (MTA) services for existing email gateways. A simple DNS MX record change redirects email to FortiMail for antispam and antivirus scanning. The FortiMail device receives messages, scans for viruses and spam, then relays email to its destination email server for delivery.

Gateway Mode

Transparent Mode: Each network interface includes a proxy that receives and relays email. Each proxy can intercept SMTP sessions even though the destination IP address is not the FortiMail appliance. FortiMail scans for viruses and spam, then transmits email to the destination email server for delivery. This eliminates the need to change the DNS MX record, or to change the existing email server network configuration.

Transparent Mode

Server Mode: The FortiMail device acts as a stand-alone messaging server with full SMTP email server functionality, including flexible support for secure POP3, IMAP and WebMail access. FortiMail scans email for viruses and spam before delivery. As in Server mode, external MTAs connect to FortiMail, allowing it to function as a protected server.

Server Mode

Identity-Based Encryption (IBE) IBE allows FortiMail to deliver confidential and regulated email securely — without requiring additional hardware, software user provisioning, or extra license fees. Use IBE to eliminate paper-based communications and reduce costs.

Policy-Based Encryption: Automatically encrypt messages for compliance, based on content or recipient.
Push or Pull Mode: Use Push, Pull, or a combination of modes to meet your requirements.
Easy to Deploy, Use, and Manage: Deploy IBE in any mode, including Transparent mode, without user provisioning or additional hardware or software.

Identity-Based Encryption (IBE)

Specifications:

	FORTIMAIL 60D	FORTIMAIL 200D	FORTIMAIL 400C
Suggested Deployment Scenarios
	Demo, testing, training and small enterprise use with fewer than 100 users*	Small businesses, branch offices, and organizations with fewer than 400 users*	Small-to-midsized organizations with up to 1000 users*
Hardware Specifications
10/100/1000 Interfaces (Copper, RJ-45)	4	4	4
SFP Gigabit Ethernet Interface	0	0	0
Redundant Hot Swappable Power Supplies	No	No	No
Storage	1x 500 GB	1x 1 TB	2x 1 TB
RAID Storage Management	No	No	Software: 0, 1
Form Factor	Desktop Appliance	Rack Mount Appliance	Rack Mount Appliance
System Specification
Configured Domains **	2	20	100
Recipient-based Policies (per Domain / per System)— Incoming or Outgoing	15 / 30	60 / 300	600 / 3000
Server Mode Mailboxes	50	150	400
Antispam, Antivirus, Authentication, and Content Profiles (per Domain / per System)	10 / 15	50 / 60	50 /200
Performance (Messages/Hour) [Without queuing based on 100 KB message size]
Email Routing	3.6 K	76 K	150 K
FortiGuard Antispam	3.1 K	68 K	140 K
FortiGuard Antispam + Antivirus	2.7 K	58 K	120 K
Dimensions
Height x Width x Length (inches)	1.61 x 8.27 x 5.24	1.75 x 17.05 x 13.86	1.70 x 17.10 x 14.30
Height x Width x Length (mm)	41 x 210 x 133	45 x 433 x 352	44 x 435 x 364
Weight	2.6 lbs (1.2 kg)	13.4 lbs (6.1 kg)	16.1 lbs (7.3 kg)
Environment
Power Source	External Power Supply 19V DC 2.1A 40 W		100–240V AC, 50–60 Hz
Maximum Power Required	20 W	1.00A / 110V, 0.50A / 220V	4.00A / 110V, 2.00A / 220V
Power Consumption (Average)	24 W	60 W	100 W
Heat Dissipation	78 BTU/h	205 BTU/h	342 BTU/h
Humidity	10–90% non-condensing	5–95% non-condensing	10–90% non-condensing
Operating Temperature	32–104°F (0–40°C)	32–104°F (0–40°C)	32–104°F (0–40°C)
Storage Temperature	-13–158°F (-25–70°C)	-13–158°F (-25–70°C)	-4–158°F (-20–70°C)
Compliance
	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certification
	VBSpam and VB100 rated		VBSpam and VB100 rated, Common Criteria EAL 2+, FIPS 140-2 Validation

** Suggested sizing for Gateway and Transparent deployments. For Server Mode, see Server Mode Mailbox metric. If unsure, please validate the model selection by checking the peak mail flow rates and average message size detail with a FortiMail specialist.
** Configured domains is the total number of email domains that can be configured on the appliance. Domain Associations can be used to enable additional domains which share configuration with the primary domain to which they are assigned.

	FORTIMAIL 1000D	FORTIMAIL 3000C	FORTIMAIL 3000D
Suggested Deployment Scenarios
	Mid to large enterprise, education and government deparments with up to 3000 users*	Universities, Large enterprise, ISP, Carrier	Highest performing appliance for the largest University, corporate, ISP and carrier customers
Hardware Specifications
10/100/1000 Interfaces (Copper, RJ-45)	6	4	4
SFP Gigabit Ethernet Interface	2	2	2
Redundant Hot Swappable Power Supplies	Yes	Yes	Yes
Storage	2x 2 TB (2x 2 TB Optional)	2x 1 TB (4x 1 TB Optional)	2x 2 TB (6x 2 TB Optional)
RAID Storage Management	Hardware: 1, 5, 10, 50, Hot Spare (Based on Drive Count)	Hardware: 1, 5, 10, 50, Hot Spare (Based on Drive Count)	Hardware: 1, 5, 10, 50, Hot Spare (Based on Drive Count)
Form Factor	Rack Mount Appliance	Rack Mount Appliance	Rack Mount Appliance
System Specification
Configured Domains **	800	2000	2000
Recipient-Based Policies (per Domain / per System)— Incoming or Outgoing	1,500 / 7,500	1,500 / 7,500	1,500 / 7,500
Server Mode Mailboxes	1500	3000	3000
Antispam, Antivirus, Authentication, and Content Profiles (per Domain / per System)	50 / 600	50 / 600	50 / 600
Performance (Messages/Hour) [Without queuing based on 100 KB message size]
Email Routing	680 K	900 K	1.2 M
FortiGuard Antispam	620 K	830 K	1.1 M
FortiGuard Antispam + Antivirus	500 K	730 K	1.0 M
Dimensions
Height x Width x Length (inches)	3.46 x 17.24 x 14.49	3.46 x 17.40 x 29.00	3.46 x 18.99 x 29.00
Height x Width x Length (mm)	88 x 438 x 368	88 x 442 x 737	88 x 482 x 737
Weight	57.5 lbs (26.1 kg)	50.0 lbs (22.7 kg)	71.5 lbs (32.5 kg)
Environment
Power Source	100–240V AC, 50–60 Hz
Maximum Power Required	3.50A /110V, 1.75A /220V	7.0A / 110V, 3.5A / 220V	10.0A / 110V, 5.0A / 220V
Power Consumption (Average)	115 W	200 W	340 W
Heat Dissipation	471 BTU/h	683 BTU/h	1160 BTU/h
Humidity	5–95% non-condensing	5–95% non-condensing	20–90% non-condensing
Operating Temperature	32–104°F (0–40°C)	50–95°F (10–35°C)	50–95°F (10–35°C)
Storage Temperature	-13–158°F (-25–70°C)	-40–149°F (-40–65°C)	-40–149°F (-40–65°C)
Compliance
	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, VCCI,	CE, BSMI, KC, UL/cUL, CB, GOST
Certification
	VBSpam and VB100 rated	VBSpam and VB100 rated, Common Criteria EAL 2+, FIPS 140-2 Validation	VBSpam and VB100 rated
