Fortinet FortiFone-C70 Telephone
HD IP conference phone for small and medium-sized conference room

Overview:

Whether you’re looking for an entry level or executive level IP phone, stay connected to your calls with a FortiFone IP phone. Each FortiFone is a feature-rich experience with high quality audio and dedicated keys for the most common features. The FortiFone experience offers a range of options from phones that can be used in a hotel or waiting room, to phones that offer vivid color screens, with programmable line and extension appearances. Managing calls has never been easier.

Stay Connected with a Complete Office Phone Solution

Combined with the powerful features of the FortiVoice PBX, the FortiFone delivers more than just what you need, it gives you what you want.

• Call forwarding
• Voicemail notification
• One-touch transfers
• Do not disturb
• Conference calling
• Speed dial
• PoE (Power over Ethernet) support
• Auto-discovery for easy setup

Key Features & Benefits
HD quality audio	What good is a phone if you can’t hear your caller? That’s why each of the FortiFones deliver crisp, clear audio through the handset and speaker.
Visual notifications	Always be up to date on calls with easy to see missed call and voicemail notifications.
Key appearances*	Programmable key appearances give you the power to not only monitor lines and extensions, but you can also program the keys for a number of features available on the FortiVoice.

* On select models

Highlights:

FON-H25

The new FON-H25 is a customizable IP phone with high quality audio and dedicated feature keys. With 6 programmable keys along the top, one-touch access for important calls can easily be configured, making this phone feel right at home in a hotel room, waiting room or right in the office.

FON-H35

The FON-H35 is a customizable IP phone with high quality audio and dedicated feature keys for hotel use. With 6 programmable keys along the screen, one-touch access for important calls can easily be configured. The FON-H35 also offers the ability to customize the screen, so you can easily add instructions and hotel information for occupants.

FON-175

Introducing the FON-175, a no fuss IP telephone that puts the features you need at your fingertips. The HD quality audio, 11 feature keys, color screen and ease of use, make this a phone that works in any office.

FON-375

The FON-375 features a whole lot in one great package. Not only does the phone deliver crystal clear audio, the easy-to-read and easy-to-use second screen can be programmed to show you who is on a call, which lines are in use and more.

FON-570

With a large, vivid color touchscreen, premium audio quality in both the handset and speaker, the FON-570 is a great phone for any office. Combine the touchscreen with dedicated feature keys and 29 programmable appearance keys and the power to easily control your calls is at your fingertips. All of these features and more give the FON-570 a lot of bang for your buck.

FON-670i/675i

Introducing the FON-670i/675i, a great combination of businessclass features and vivid touchscreen. An executive phone with programmable appearance keys and the features you need at your fingertips. With an optional HD video camera and HDMI out port to compliment these features, this new FortiFone is a power house.

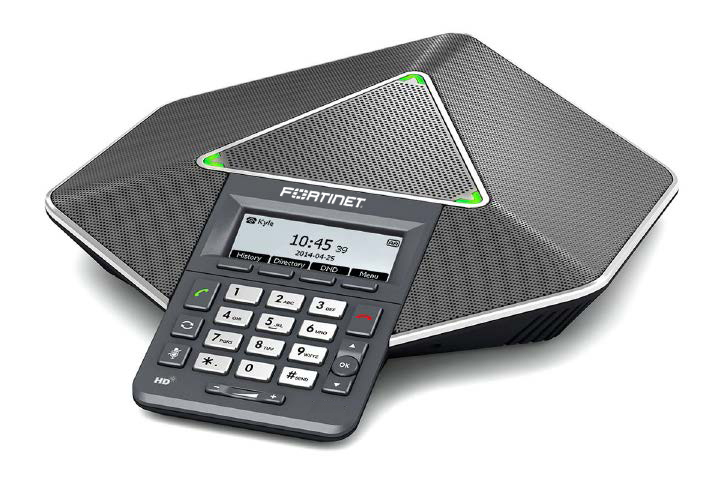

FON-C70

The FON-C70 conference phone offers you a premium HD audio experience. With full-duplex technology and acoustic echo cancelling on the three microphone array, you get clear and concise audio. Add on the ability to connect two extra microphones and the FON-C70 can handle a conference room of any size.

Specifications:

	FON-H25	FON-H35	FON-175	FON-375	FON-570	FON-670i / 675i	FON-C70
Telephone Features
Display			2.4" color display	2.8" + 2.4" color display	7" color touchscreen	7" color touchscreen	4"x1.5" monochrome
Line/extension/queue appearance keys	N/A	N/A	N/A	18	29, expandable to 149	100	N/A
Softkeys	6	6	4	4			4
Dedicated feature keys	6	6	5	8	7	5
Speakerphone	Full duplex	Full duplex	Full duplex	Full duplex	Full duplex	Full duplex	Full duplex
Backlit display
Adjustable phone angle
Headset support (RJ22)
Dedicated headset button
Call waiting
Message waiting indicator
Group paging over speaker
Intercom over speaker
Multiple ring tones
Phone book entries			500	500	1000	2000	1000
Missed call log Received call log Outgoing call log			100 total	100 total	100 total	1500 Total	100 each
External IP extension support
Missed call indicator
Onscreen key labels
One-touch Feature Keys
Call recording
Cancel transfer
Conference
Do not disturb
Group paging
Hold
Intercom paging
One-touch blind transfer
Park
Pick up any extension
Redial
Speed dial
Trade calls
Transfer
Voicemail
Network Features
Power over Ethernet (802.3af)
Ethernet ports	2x 10/100	2x 10/100	2x 10/100	2x 10/100/1000	2x 10/100/1000	2x 10/100/1000	1x 10/100
Auto-discovery of FortiVoice system on LAN
LDAP
LLDP
QoS L 2 802.1p
QoS L 3 DSCP
802.1x – Network access control
DHCP client
SNTP client
SIP (RFC 3261)
SIP over UDP
SIP over TCP
SIP over TLS
RTCP
SRTP
Management
TFTP
HTTP
HTTPS
Option 66
Web management portal
Backup/Restore
Syslog
Audio Features
HD voice
G.711u
G.711A
G.723.1
G.729A
G.722
G.726
H.263, H.264 video codec support						FON-675i only
Voice activity detection (VAD)
Comfort noise generation (CNG)
Adaptive jitter buffer	300 ms	300 ms	300 ms	300 ms	300 ms	300 ms	300 ms
DTMF in-band
DTMF out of band (RFC2833)
DTMF via SIP info
Operation
Humidity	10–65%	10–65%	10–65%	10–65%	10–95%	10–65%	10–95%
Temperature	0–40°C	0–40°C	0–40°C	0–40°C	-10–50°C	0–40°C	-10–50°C
Power class	2	2	1	0	3	3	0
Power consumption	2 watts	2.8 watts	2 watts	3 watts	10 watts	10 watts	8 watts
Display Languages
English
French
Spanish
Chinese — Simplified
Chinese — Traditiona
Czech
Dutch
Hebrew
German
Italian
Japanese
Polish
Portuguese
Russian
Turkish

Documentation:

Download the Fortinet FortiFone IP Series Data Sheet (PDF).
