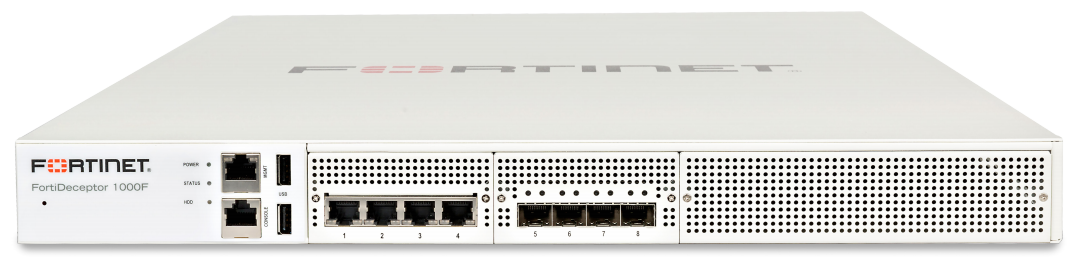

Fortinet FortiDeceptor 1000F
Deploy and Monitor Deception VMs on your network.

Overview:

Advanced Threat Deception

FortiDeceptor is designed to deceive, expose, and eliminate external and internal threats early in the attack kill chain and proactively block these threats before any significant damage occurs.

Fortinet Security Fabric provides unified, end-to-end protection with Fortinet Next Generation Firewalls to tackle advanced persistent threats. Adding FortiDeceptor as part of a Breach Protection strategy helps evolve your defenses from reactive to proactive with intrusion-based detection layered with contextual intelligence. It automates the blocking of attackers targeting IT devices and OT system controls. FortiDeceptor automatically lays out a layer of decoys and lures, helping you conceal your sensitive and critical assets behind a fabricated Deception Surface to confuse and redirect attackers while revealing their presence on your network.

• DECEIVE external and internal threats with deceptive VM instances aka decoys, managed from a centralized location. Deploy a Deception Surface of real Windows, Linux, VPN, Medical IoT and SCADA VMs with services that are indistinguishable from real assets, e.g. production servers and lures embedded into devices designed to uncover the attackers.
• EXPOSE hacker activity with early and accurate detection and actionable alerts enabled through tracing and correlation of an attacker’s Tactics, Tools, and Procedures (TTPs) and active notification via Web UI, Email, SNMP traps, logs, and events via FortiSIEM and FortiAnalyzer.

• ELIMINATE threats by automating threat response with FortiGates, FortiNAC, FortiSOAR, and third-party security solutions via Fortinet Security Fabric.

Feature Benefits

• Simple and Easy to Use with a wizard-based setup of IT/ OT/ IoT decoys and lures finetuned to your environment and centrally manage a distributed deception deployment across your IT and OT environments
• Rapid investigation with intelligent incident correlation into a campaign timeline of all activities including access, tools used, lateral movement, and more, layered with contextual threat intelligence from FortiGuard Labs
• Eliminate Early Stage Attacks with Security Fabric integration including FortiGate, FortiNAC, FortiSOAR, and third-party. Elevate threat visibility and hunting with FortiSIEM and FortiAnalyzer

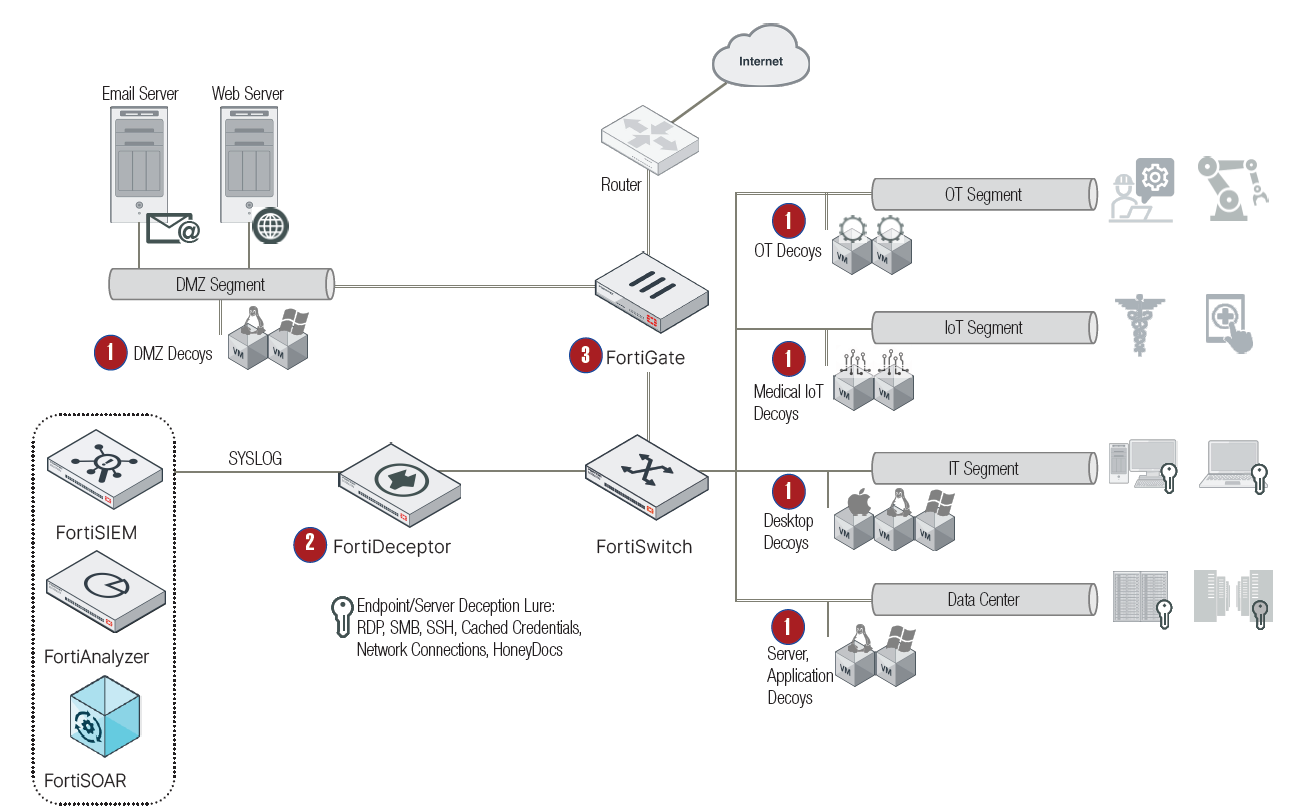

Workflow:

Notes:

1. FortiDeceptor deploys decoys with different OS types equipped with lures (e.g. RDP/ SMB/ Credentials/ HoneyDocs) that appear indistinguishable from real IT and OT assets and are highly interactive.
2. FortiDeceptor acts as an early warning system that exposes attacker’s malicious intent and tracks lateral movement, which translates to real-time alerts sent to FortiDeceptor, as well as FortiAnalyzer and FortiSIEM for review and validation. FortiDeceptor applies analytics powered by FortiGuard Labs, FortiSandbox, and VirusTotal intelligence, to a consolidated set of security events and correlates them to the campaigns with timeline of activities.
3. FortiDeceptor allows security analyst to manually investigate and apply manual remediation or automatically block these attacks based on severity before actual damage occurs via integration with FortiGate, FortiNAC, and FortiSOAR.

Specifications:

FORTIDECEPTOR 1000G
Capacity and Performance
Size RAM	DDR4-2400 48 GB ECC RDIMM (16 GB*3)
On Board Flash	2 GB USB
Decoy VM Support	Combination of Windows 7, Windows 10, Windows 10 (customizable BYOL), Windows Server 2016 and 2019 (customizable BYOL), Linux, VPN Server, Medical (PACS, Infusion pump), POS, ERP, IoT (Router, Printer and Camera), and/or SCADA, up to 16 Deception VMs and 128 VLANs
Decoy Services	SSL VPN, SSH, SAMBA, SMB, RDP, HTTP/S, SQL, GIT, DICOM, Telnet, FTP, TFTP, SNMP, MODBUS, S7COMM, BACNET, IPMI, TRICONEX, GUARDIAN-AST, IEC104, EtherNet/IP, DNP3, JET-DIRECT, RTSP, UPnP, CDP and TCP port listener
Deception VMs Shipped	Deceptor Bundle Contract included license for Deception Decoys, Deception Lure plus FortiGuard Services Subscriptions (AREA, AV, IPS, and Web Filtering).1 VLAN unit price, minimum order of 2 VLANs
Hardware Specifications
Form Factor	1 RU Rackmount
Total Interfaces	4 x GE (RJ45), 4 x GE (SFP)
Storage Capacity	2 TB (2 x 1 TB HDD)
Usable Storage (After RAID)	1 TB
Removable Hard Drives	No
RAID 1	RAID 1
Default RAID Level	1
Optional (SKU: SP-FSA1000G-PS)
Power Supply	650W Redundant PSU (1+0)
	Additional PSU (SKU: SP-FSA1000G-PS)
Dimensions
Height x Width x Length (inches)	1.73 x 17.24 x 23.62
Height x Width x Length (cm)	44 x 438 x 600
Weight	27.56 lbs (12.5 kg)
Environments
AC Power Supply	100-240 VAC, 60-50 Hz, 650W Redundant PSU (1+0)
Power Consumption (Max / Average)	253.2 W / 202.56 W
Heat Dissipation	863.92 (BTU/h)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-13°F to 158°F (-25°C to 70°C)
Humidity	10% to 90% (non-condensing)
Operating Altitude	Up to 7,400 ft (2,250 m) *
Compliance
Safety Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

Documentation:

Download the Fortinet FortiDeceptor Data Sheet (PDF).
