Fortinet FortiCam FE120
Video Security IP Camera

Overview:

Get complete visual coverage inside and out with FortiCameras. With options for indoor and outdoor, vandal-proof, weatherproof, low-light night vision, fixed and motorized zoom lenses and 2-way audio, there’s a FortiCam that fits every environment. All FortiCams deliver crisp, high-resolution HDTV-quality images to any FortiRecorder NVR, either continuously or triggered by a range of events, including motion and/or audio detection.

Easy to set up, license-free

With FortiCameras, installation is a breeze. They support PoE, eliminating the need for AC power. Just connect the camera to the FortiRecorder network via a PoE switch and you’re up and running. No software installation, no patches and, unlike using third-party cameras, no license fees.

Building blocks for scalable IP video solutions

FortiCameras are completely integrated with FortiRecorder and the powerful FortiCentral and mobile clients. All components complement each other to form a scalable video surveillance installation from small retail to large campus sites.

FortiCameras are your eyes into Fortinet video analytics solutions including face recognition and object detection.

• Scheduled and manual recording
• Motion detection and continuous recordings
• Snapshot notifications and alerts
• Web-based interface (no software installation required)
• Camera live view and video playback
• Event monitor with timeline
• RADIUS, LDAP, SNMP and remote data storage support for flexible network integration
• Powerful Windows client FortiRecorder Central
• Mobile access on iOS and Android

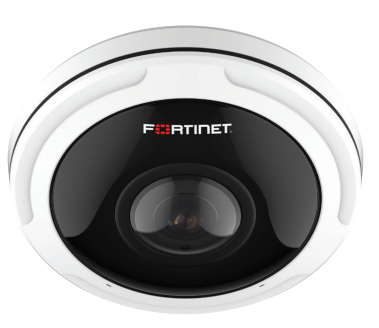

FortiCamera FE120

A superior 12 mega pixel Fisheye camera, FCM-FE120 introduces video performance where excellent overview is demanded and at the same time minimizes installation requirements. One FE120 can provide 360-degree ceiling or 180-degree wall mount panoramic views. The compact design is packed with a rich feature set including IP67 weather rating, built-in audio mic and IR illuminators. Low light and complicated light situations against windows are handled with the high sensitivity CMOS sensor and Shutter WDR (>120dB). This powerhouse delivers worry free installation with 360-degree panoramic coverage, anytime, anywhere.

Specifications:

	FortiCamera FD40	FortiCamera FD20B
Description	Ultra-WDR Day/Night IP Video Security Camera	Versatile Day/Night IP Video Security Camera
Format*	Fixed Dome, Indoor/Outdoor, vandal	Fixed Dome, Indoor/Outdoor, vandal
Sensor Type	4 mega-pixel, 1/3" Progressive CMOS	2 mega-pixel, 1/2.8” Sony CMOS
Iris	F1.6, P-Iris	F1.4, fixed
Optical Zoom	3x	4x
Digital Zoom	—	—
Focal Length	3–9 mm (motorized, autofocus)	f = 2.8 mm–12 mm varifocal
View Angle	H: 109°–33°	H: 108°–33° V: 56°–18° D: 134°–39°
Minimum Illumination	0.1 Lux (Color), 0.01Lux (B/W) @ F1.2	0.01 Lux (Color), 0.001 Lux (B/W) @ F1.4
Wide Dynamic Range	Shutter WDR (>120 dB)	Digital (>80dB)
Streaming Protocols	RTSP	RTSP
Video Compression	MJPEG / H.264 (MPEG-4 Part 10/AVC) Baseline / Main / High Profile	H.264 / H.256 (HEVC)
Image Resolution	2688 x 1512 at 30 frames per second Full HD 1080P / SXGA / 720P / XGA / SVGA / D1 / VGA / CIF	1920 x 1080 at 25 frames per second 1280 x 720 at 25 frames per second
Audio	Line in/out	Line in/out
Interface	1 DI, 1 DO, RJ45 Ethernet 10/100 Mbps	1 DI, 1 DO, RJ45 Ethernet 10/100 Mbps
Mounting	Wall, ceiling, 3/4" Conduit	Wall, ceiling, 3-axis, optional sunshield
Operation
Pan / Tilt	—	—
Presets / Accuracy / Speed	—	—
IRLED / IRC	40m / Yes	30m / Yes
EIS / DNR	– / 3DNR	– / 3DNR
Dimensions
Height x Width x Length (inches)	4.6 x 5.2 x 5.2	6.3 x 4.5 x 4.5
Height x Width x Length (mm)	117 x 134 x 134	161 x 115 x 115
Weight	1.69 lbs (770 g)	2.13 lbs (965 g)
Environment
Power Source	PoE (802.3af) / DC 10–48V / AC 24V	PoE (802.3af) / DC12V±10% / AC 24V±10%
Power Consumption (Average)	Cold start 8.5 W > Operation 13.34 W max with heater	3.5 W (9 W IR ON)
Operating Temperature	-67–131°F (-55–55°C)	14–122°F (-10–50°C)
Humidity	10–90% non-condensing	0–85% non-condensing
Compliance
Regulatory and Standards	CE / FCC / RoHS / IP66 / IK10 / ONVIF Profile S	FCC Class B, CE Mark, weatherproof (IP66), IK10, ONVIF2.2

	FortiCamera MD50	FortiCamera MD40	FortiCamera MD20
Description	Day/Night IP Video Security Camera	Day/Night IP Video Security Camera	Day/Night IP Video Security Camera
Format*	Mini Dome, Indoor/Outdoor, vandal	Mini Dome, Indoor/Outdoor, vandal	Mini Dome, Indoor/Outdoor
Sensor Type	5 mega-pixel, 1/2.8” Progressive CMOS	4 mega-pixel, 1/3” Progressive CMOS	2 mega-pixel, 1/2.8” Sony CMOS
Iris	F2.2, fixed	F1.6, fixed	F1.4, fixed
Optical Zoom	—	—	—
Digital Zoom	—	—	—
Focal Length	f = 3.2 mm	f = 3.6 mm	f = 3.6 mm
View Angle	H: 96° V:71° D:123°	H: 85.2°	H: 70° V: 59° D: 107°
Minimum Illumination	0.005 Lux (Color) @ F1.2, 0.004 Lux (B/W) @ F1.2	0.008 Lux (Color) @ F1.2, 0.004 Lux (B/W) @ F1.2	0.05 Lux (Color), 0.01 Lux (B/W) @ F1.4
Wide Dynamic Range	Shutter WDR (>120 dB)	Shutter WDR (>120 dB)	Digital
Streaming Protocols	RTSP	RTSP	RTSP
Video Compression	MJPEG / H.264 / H.265 (HEVC)	MJPEG / H.264 / H.265 (HEVC)	H.264
Image Resolution	2592 x 1944 at 20 frames per second 1920 x 1080 at 30 frames per second 1280 x 960, 1280 x 720, 704 x 576	2592 x 1520 at 20 frames per second 2304 x 1296 at 30 frames per second Full HD 1080P / SXGA / 720P / XGA	1920 x 1080 at 25 frames per second 1280 x 720 at 25 frames per second
Audio	One-way, built-in mic	One-way, built-in mic	—
Interface	RJ45 Ethernet 10/100 Mbps	RJ45 Ethernet 10/100 Mbps	RJ45 Ethernet 10/100 Mbps
Mounting	Wall, ceiling, 3-axis	Wall, ceiling, 3-axis	Wall, ceiling, 3-axis
Operation
Pan / Tilt	—	—	—
Presets / Accuracy / Speed	—	—	—
IRLED / IRC	20m / Yes	20m / Yes	25m / Yes
EIS / DNR	— / 3DNR	— / 3DNR	— / Yes
Dimensions
Height x Width x Length (inches)	2.6 x 4.4 x 4.7	2.6 x 4.4 x 4.7	2.6 x 4.8 x 5.0
Height x Width x Length (mm)	65 x 110.8 x 118.5	65 x 110.8 x 118.5	65 x 123 x 126
Weight	1.1 lbs (500 g)	1.1 lbs (500 g)	0.68 lbs (310 g)
Environment
Power Source	PoE (802.3af)	PoE (802.3af)	PoE (802.3af) / DC12V±10%
Power Consumption (Average)	2.5 W; 5.5 W max (with IR on)	2.5 W; 5.5 W max (with IR on)	5 W
Operating Temperature	-22–140°F (-30–60°C)	-22–140°F (-30–60°C)	14–122°F (-10–50°C)
Humidity	0–90% non-condensing	0–90% non-condensing	0–85% non-condensing
Compliance
Regulatory and Standards	FCC Class B, ICES, CE, UL, IP67, IK09, ONVIF Profile S+G	FCC Class B, ICES, CE, UL, IP67, IK09, ONVIF Profile S	FCC Class B, CE Mark, IP65, ONVIF2.2

	FortiCamera OB30	FortiCamera CB20	FortiCamera MB40
Description	Professional Day/Night IP Video Security Came	Day/Night IP Video Security Camera	Day/Night IP Video Security Camera
Format*	Outdoor/Indoor Bullet, vanda	Compact Bullet, Indoor/Outdoor	Mini Box, Indoor
Sensor Type	3 mega-pixel, 1/3” Progressive CMOS	2 mega-pixel, 1/2.8” Sony CMOS	4 mega-pixel, 1/3” Progressive CMOS
Iris	F1.4, P-Iris	F1.4 fixed	F2.0, fixed
Optical Zoom	3x	4x	—
Digital Zoom	—	—	—
Focal Length	f = 3 mm–10 mm (motorized, autofocus)	f = 2.8 mm–12 mm varifocal	f = 2.8 mm
View Angle	H: 82°–34° V: 63°–26° D: 103°–43°	H: 91°–31° V: 79°–23° D: 138°–40°	H: 100°
Minimum Illumination	0.1 Lux (Color), 0.06 Lux (B/W) @ F1.4	0.05 Lux (Color), 0.01Lux (B/W) @ F1.4	0.1 Lux (Color), 0.01 Lux (B/W) @ F2.0
Wide Dynamic Range	Shutter WDR (>100 dB)	Digital	Shutter WDR (>120 dB)
Streaming Protocols	RTSP	RTSP	RTSP
Video Compression	MJPEG / H.264	H.264	MJPEG / H.264 (MPEG-4 Part 10/AVC)
Image Resolution	2048 x1536 @ 30 frames per second Full HD 1080p / 720pP / D1 / VGA / CIF	1920 x 1080 at 25 frames per second 1280 x 720 at 25 frames per second	2688 x 1512 at 15 frames per second 2304 x 1296 at 30 frames per second 1920 x 1080 at 30 frames per second in Shutter WDR mode SXGA / 720P / XGA / SVGA / D1 / VGA / CIF
Audio	Line in/out	—	Two-way, built-in mic and speaker
Interface	10/100/1000 Mbps	RJ45 Ethernet 10/100 Mbps	1 DI, 1 DO, RJ45 Ethernet 10/100 Mbps
Mounting	Wall, bracket included	Wall, ceiling, bracket included	Wall, ceiling, bracket included
Operation
Pan / Tilt	—	—	—
Presets / Accuracy / Speed	—	—	—
IRLED / IRC	smart 30m / Yes	30m / Yes	5m / Yes
EIS / DNR	– / 3DNR	– / Yes	– / 3DNR
Dimensions
Height x Width x Length (inches)	10.6 x 6.3 x 16	2.8 x 3.3 x 9.4	3.8 x 2.2 x 2.4
Height x Width x Length (mm)	263 x 161 x 406	70 x 85 x 240	97 x 56 x 61
Weight	4.42 lbs (2005 g)	1.25 lbs (569 g)	0.26 lbs (120 g)
Environment
Power Source	PoE+ 802.3at / AC 24V ± 10%	PoE (802.3af)	PoE (802.3af) / DC 12V
Power Consumption (Average)	14.3 W max.	1.2 W (6 W IR ON)	4.6 W IR ON
Operating Temperature	40–140°F (-40–60°C)	14–122°F (-10–50°C)	14–122°F (-10–50°C)
Humidity	10–90% non-condensing	0–85% non-condensing	10–90% non-condensing
Compliance
Regulatory and Standards	CE / FCC / RoHS / ONFIV / UL / IP67 / IK10	FCC Class B, CE Mark, weatherproof (IP66), ONVIF2.2	CE / FCC / RoHS

	FortiCamera SD20B	FortiCamera FE120
Description	Ultra-WDR IP PTZ Camera	Fisheye Day/Night IP Video Security Camera
Format*	Speed Dome, Indoor/Outdoor	Fisheye, Indoor/Outdoor
Sensor Type	2 mega-pixel, 1/2.8" Sony Progressive CMOS	12 mega-pixel, 1/1.7" Progressive CMOS
Iris	F1.6 (W), F4.7 (T) P-Iris	F2.8, fixed
Optical Zoom	30x	—
Digital Zoom	10x	—
Focal Length	f = 4.3 mm–129 mm (motorized, autofocus)	f = 1.98 mm
View Angle	H: 65°–2°	Ceiling Mount: 360°; Wall Mount: 180°; Table Mount: 360°
Minimum Illumination	0.02 Lux (Color), 0.005 Lux (B/W) @ F1.6	0.04 Lux (Color) @ F2.8, 0.02 Lux (B/W) @ F2.8
Wide Dynamic Range	Shutter WDR (>96 dB)	Shutter WDR (>120 dB)
Streaming Protocols	RTSP	RTSP
Video Compression	H.265 / H.264 / MJPEG	MJPEG / H.264 / H.265 (HEVC)
Image Resolution	1920 x 1080 at 30 frames per second 1280 x 720 at 30 frames per second 720 x 480 at 30 frames per second	4000×3000 at 25 frames per second 3000×3000 at 30 frames per second 2560×2560, 1920×1920, 1280×1280, 1280×960, 1024×1024, 720×720, 320×320
Audio	Line in/out	Two-way, built-in mic
Interface	4 DI, 2 DO, RJ45 Ethernet 10/100 Mbps	1 DI, 1 DO, RJ45 Ethernet 10/100/1000 Mbps
Mounting	Wall, pole, ceiling (see ”Optional Accessories”)	Wall, ceiling, table
Operation
Pan / Tilt	360° endless / -10°–100°	—
Presets / Accuracy / Speed	256 / 0.056° / 5°–400° /s	—
IRLED / IRC	– / Yes	15m / Yes
EIS / DNR	Yes / 3DNR	– / 3DNR
Dimensions
Height x Width x Length (inches)	11.0 x 8.26 × 8.26 (with sunshield)	1.8 x 5.5 x 5.5
Height x Width x Length (mm)	279 x 210 x 210 (with sunshield)	45.4 x 140 x 140
Weight	6.4 lbs (2.9 kg)	1.1 lbs (500 g)
Environment
Power Source	802.3at PoE+ (class4) / AC 24V ±10%	PoE (802.3af) / DC12V
Power Consumption (Average)	25.4 W (with heater)	4.8 W, 8 W max (with IR on)
Operating Temperature	-40–122°F (-40–50°C)	-22–140°F (-30–60°C)
Humidity	10–90% non-condensing	0–90% non-condensing
Compliance
Regulatory and Standards	CE / FCC / RoHS / IP66 / IK10 / ONVIF Profile S, G	FCC Class B, ICES, CE, UL, IP67, IK09, ONVIF Profile S,G

* For all outdoor installations, Fortinet suggests to avoid direct sunlight for better image quality and longer service life.

Documentation:

Download the Fortinet FortiCamera Datasheet (PDF).
