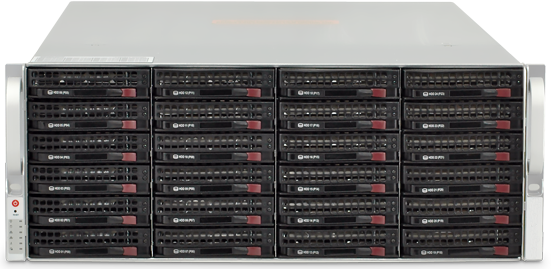

Fortinet FortiAnalyzer 3500F Appliance
Centralized Logging, Analysis, and Reporting

Overview:

Comprehensive Visualization of Your Network

FortiAnalyzer platforms integrate network logging, analytics, and reporting into a single system, delivering increased knowledge of security events throughout your network. The FortiAnalyzer family minimizes the effort required to monitor and maintain acceptable use policies, as well as identify attack patterns to help you fine tune your policies. Organizations of any size will benefit from centralized security event logging, forensic research, reporting, content archiving, data mining and malicious file quarantining.

You can deploy FortiAnalyzer physical or virtual appliances to collect, correlate, and analyze geographically and chronologically diverse security data. Aggregate alerts and log information from Fortinet appliances and third-party devices in a single location, providing a simplified, consolidated view of your security posture. In addition, FortiAnalyzer platforms provide detailed data capture for forensic purposes to comply with policies regarding privacy and disclosure of information security breaches.

Fortinet’s Versatile Management Solution

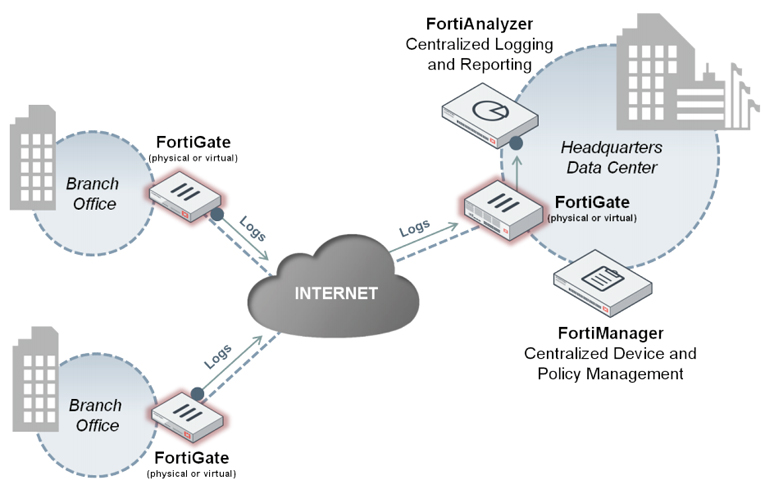

Networks are constantly evolving due to threats, organizational growth or new regulatory/business requirements. Traditional analysis products focus on recording and identifying company-wide threats through logging, analysis and reporting over time. FortiAnalyzer offers enterprise class features to identify these threats, but also provides flexibility to evolve along with your ever-changing network. FortiAnalyzer can generate highly customized reports for your business requirements while aggregating logs in a hierarchical, tiered logging topology. Key tenets of Fortinet’s management versatility:

• Diversity of form factors
• Architectural flexibility
• Highly customizable
• Simple licensing

Key Features & Benefits:
Graphical Summary Reports	Provides network-wide reporting of events, activities and trends occurring on FortiGate® and third-party devices
Network Event Correlation	Allows IT administrators to quickly identify and react to network security threats across the network.
Scalable Performance and Capacity	FortiAnalyzer family models support thousands of FortiGate and FortiClient™ agents, and can dynamically scale storage based on retention/compliance requirements.
Choice of Standalone, Collector or Analyzer mode	Can be deployed as an individual unit or optimized for a specific operation (such as store & forward or analytics).
Seamless Integration with the Fortinet Product Portfolio	Tight integration maximizes performance and allows FortiAnalyzer resources to be managed from FortiGate or FortiManager™ user interfaces.

Highlights:

Reporting and Visualization Tools

• FortiView Summary
  Views Generation ad-hoc graphical, filterable views of top users, applications, destinations, websites, threats, VPN usage and more.
• Built-in Report Templates
  Utilize or modify the PDF templates to display colorful, comphrehensive, graphical network security and usage reports.
• UTM & Traffic Summary Reports
  Regularly analyze the security profile and traffic/bandwidth patterns with a new consolidated UTM/Traffic report.
• Event Management
  Raise and monitor important events to present the IT administrator with unprecedented insight into potentially anomalous behavior.
• Import/Export Templates
  After building a report, export and modify the configuration on another FortiAnalyzer or different ADOM.

JSON and XML (Web Services) APIs

• APIs are available on all FortiAnalyzer hardware models and virtual machines
• JSON API — Allows MSSPs/large enterprises to manipulate FortiAnalyzer reports, charts/datasets and objects
• XML API — Enables IT administrators to quickly provision/configure FortiAnalyzer and generate reports
• Access tools, sample code, documentation and interact with the Fortinet developer community by subscribing to the Fortinet Developer Network (FNDN)

Log Viewer

• View logs in real-time or historical
• Select from traffic, event and full security logs
• Browse by device, ADOM or in aggregate
• Log filtering and search capabilities
• Granular inspection with the log details pane
• Intuitive icons for countries, applications, etc.

Event Management

• Comprehensive alert builder
• Trigger off of severity levels, specific events, actions and destinations
• Set varying threshholds by number of events within a certain timeframe
• View or search through historical alerts
• Notify via email/SNMP or raise a syslog event

Better with FortiManager

• Enterprise-class device management
• Familiar GUI for full network control
• Available as integrated solution with FortiAnalyzer

DLP Archiving

• Investigate DLP content archives
• Supported archive types include: email, HTTP, FTP, IM
• View archive text or download files

FortiAnalyzer Supported Devices

• FortiGate Multi-Threat Security Systems
• FortiMail Messaging Security Systems
• FortiClient Endpoint Security Suite
• FortiWeb Web Application Security
• FortiManager Centralized Management
• FortiSandbox Threat Protection
• FortiCache Web Caching
• Any Syslog-Compatible Device

Specifications:

	FORTIANALYZER 200D	FORTIANALYZER 400E	FORTIANALYZER 1000E
Capacity and Performance
GB/Day of Logs	5	75	300
Analytic Sustained Rate (logs/sec)	120	500	4,000
Collector Sustained Rate (logs/sec)	350	725	6,000
Devices/VDOMs/ADOMs (Maximum)	150	200	2,000
Hardware Specifications
Form Factor	1 RU Rackmount	1 RU Rackmount	2 RU Rackmount
Total Interfaces	4x GE	4x GE	2x GE
Storage Capacity	1 TB (1x 1 TB)	12 TB (4x 3 TB)	24 TB (8x 3 TB)
Removable Hard Drives	No	Yes	Yes
RAID Levels Supported	None	RAID 0/1/5/10	RAID 0/1/5/6/10/50/60
Default RAID Level	–	10	50
Redundant Hot Swap Power Supplies	No	No	Yes
Dimensions
Height x Width x Length (inches)	1.8 x 17.1 x 13.9	1.7 x 17.2 x 19.8	3.5 x 17.2 x 25.2
Height x Width x Length (cm)	4.5 x 43.3 x 35.2	4.3 x 43.7 x 50.3	8.9 x 43.7 x 68.4
Weight	13.4 lbs (6.1 kg)	31 lbs (14.1 kg)	52 lbs (23.6 kg)
Environment
AC Power Supply	100–240V AC, 50–60 Hz, 6 Amp Max.	100–240V AC, 60–50 Hz	100–240V AC, 60–50 Hz
Power Consumption (Average)	60 W	93 W	192.5 W
Heat Dissipation	205 BTU/h	456 BTU/h	920 BTU/h
Operating Temperature	32–104°F (0–40°C)	41–95°F (5–35°C)	41–95°F (5–35°C)
Storage Temperature	-13–158°F (-35–70°C)	-40–140°F (-40–60°C)	-40–140°F (-40–60°C)
Humidity	5–95% non-condensing	8– 90% non-condensing	8–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)
Compliance
Safety Certifications	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

	FORTIANALYZER 2000E	FORTIANALYZER 3000E	FORTIANALYZER 3000F
Capacity and Performance
GB/Day of Logs	500	800	1,600
Analytic Sustained Rate (logs/sec)	7,500	15,000	35,000
Collector Sustained Rate (logs/sec)	11,250	50,000	52,500
Devices/VDOMs/ADOMs (Maximum)	2,000	4,000	4,000
Hardware Specifications
Form Factor	2 RU Rackmount	2 RU Rackmount	3 RU Rackmount
Total Interfaces	4x GE, 2x 10GE SFP+	4x GE, 2x GE SFP	4x GE, 2x 10GE SFP+
Storage Capacity	36 TB (12x 3TB)	16 TB (8x 2 TB)	48 TB (16x 3 TB)
Removable Hard Drives	Yes	Yes	Yes
RAID Storage Management	RAID 0/1/5/6/10/50/60	RAID 0/1/5/6/10/50/60	RAID 0/1/5/6/10/50/60
Default RAID Level	50	10	50
Redundant Hot Swap Power Supplies	Yes	Yes	Yes
Dimensions
Height x Width x Length (inches)	3.5 x 17.2 x 25.6	3.4 x 19 x 29.7	5.2 x 17.2 x 25.5
Height x Width x Length (cm)	8.9 x 43.7 x 64.8	8.7 x 48.2 x 75.5	13.2 x 43.7 x 64.8
Weight	58 lbs (26.3 kg)	71.5 lbs (32.5 kg)	76 lbs (34.5 kg)
Environment
AC Power Supply	100–240V AC, 60–50 Hz	100–240V AC, 50–60 Hz, 10 Amp Maximum	100–240V AC, 60–50 Hz
Power Consumption (Average)	390 W	375.8 W	465 W
Heat Dissipation	1840 BTU/h	1947 BTU/h	1904 BTU/h
Operating Temperature	50–95°F (10 – 35°C)	50–95°F (10–35°C)	50–95°F (10–35°C)
Storage Temperature	-40–158°F (-40–70°C)	-40–149°F (-40–65°C)	-40–158°F (-40–70°C)
Humidity	8–90% non-condensing	20–90% non-condensing	8–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)
Compliance
Safety Certifications	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

	FORTIANALYZER 3500E		FORTIANALYZER 3500F			FORTIANALYZER 3900E
Capacity and Performance
GB/Day of Logs	3,000		5,000			4,000
Analytic Sustained Rate (logs/sec)	36,000		60,000			48,000
Collector Sustained Rate (logs/sec)	60,000		90,000			75,000
Devices/VDOMs/ADOMs (Maximum)	10,000		10,000			10,000
Hardware Specifications
Form Factor	4 RU Rackmount		4 RU Rackmount			2 RU Rackmount
Total Interfaces	2x GE, 2x GE SFP		2x GE, 2x GE SFP			2x GE, 2x 10GE SFP+
Storage Capacity	24 TB (12x 2 TB – 48 TB maximum)		72 TB (24x 3TB)			15 TB SSD (15x 1 TB SSD)
Removable Hard Drives	Yes		Yes			Yes
RAID Levels Supported	RAID 0/1/5/6/10/50/60		RAID 0/1/5/6/10/50/60			RAID 0/1/5/6/10/50/60
Default RAID Level	10		50			50
Redundant Hot Swap Power Supplies	Yes		Yes			Yes
Dimensions
Height x Width x Length (inches)	6.9 x 19.0 x 27.2		6.9 x 19.0 x 27.2			3.5 x 17.2 x 26.9
Height x Width x Length (cm)	17.5 x 48.2 x 69.0		17.6 x 48.2 x 69.0			8.9 x 43.7 x 68.4
Weight	77 lbs (34.9 kg)		93.74 lbs (42.52Kg)			52 lbs (23.6 kg)
Environment
AC Power Supply	100–240V AC, 50–60 Hz, 11.5 Amp Maximum		100–240V AC, 60–50 Hz			100–240V AC, 50–60 Hz, 11.5 Amp Maximum
Power Consumption (Average)	465 W for 12 HDD		465 W			470 W for 15 HDD
Heat Dissipation	1904 BTU/h		1,904 BTU/h			1637 BTU/h
Operating Temperature	32–104°F (0–40°C)		32–104°F (0–40°C)			50–95°F (10–35°C)
Storage Temperature	-13–158°F (-25–70°C)		-13–158°F (-25–70°C)			-40–60°C (-40–140°F)
Humidity	10–90% non-condensing		10–90% non-condensing			5–95% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)		Up to 7,400 ft (2,250 m)			Up to 7,400 ft (2,250 m)
Compliance
Safety Certifications	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB		FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB			FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

	FAZ-VM-BASE	FAZ-VM-GB1	FAZ-VM-GB5	FAZ-VM-GB25	FAZ-VM-GB100	FAZ-VM-GB500	FAZ-VM-GB2000
Capacity and Performance
GB/Day of Logs	1 incl.**	+1	+5	+25	+100	+500	+2,000
Storage Capacity	200 GB	+500 GB	+3 TB	+10 TB	+24 TB	+48 TB	+100 TB
Devices/ADOMs/VDOMs Supported (Maximum)	10,000	10,000	10,000	10,000	10,000	10,000	10,000
Hypervisor Support	VMware ESX/ESXi 4.0/4.1/5.0/5.1/5.5/6.0, Microsoft Hyper-V 2008 R2/2012/2012 R2, Citrix XenServer 6.0+, Open Source Xen 4.1+, KVM,Amazon Web Services (AWS))
Network Interface Support (Minimum / Maximum)	1 / 4
vCPUs (Minimum / Maximum)	1 / Unlimited
Memory Support (Minimum / Maximum)	1 GB / Unlimited

** Unlimited GB/Day when deployed in collector mode

Documentation:

Download the Fortinet FortiAnalyzer Series Datasheet (PDF).
